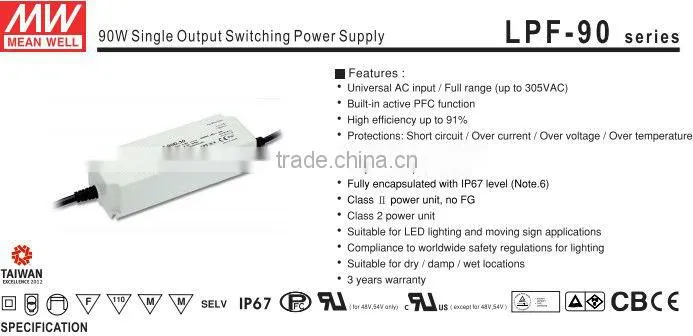

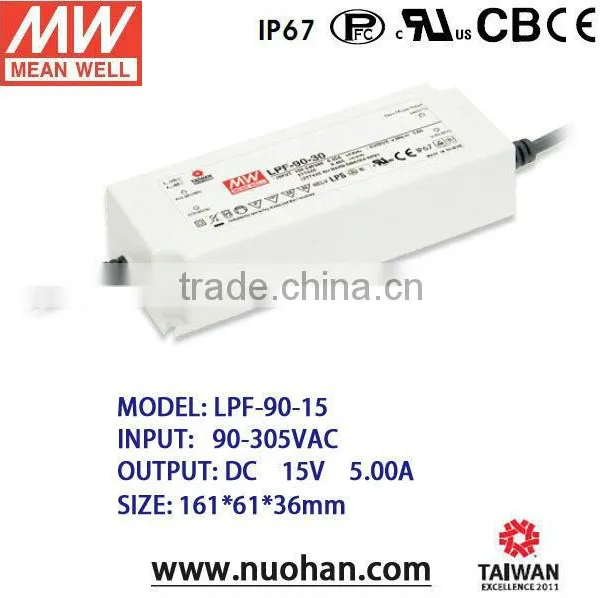

Mean Well LPF-90-15 90w 15v Led Driver With PFC 90w Power Supply 90w 15v Led Driver

Name: Mean Well LPF-90-15 90w 15v Led Driver With PFC 90w Power Supply 90w 15v Led Driver
Brand: Mean Well
SKU: 117424771

Mean Well LPF-90-15 90w 15v Led Driver With PFC 90w Power Supply 90w 15v Led Driver thumbnail-1

Mean Well LPF-90-15 90w 15v Led Driver With PFC 90w Power Supply 90w 15v Led Driver photo-1

US$ 1 - 40 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Mean Well

Model Number:

LPF-90-15

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Mean Well

Model Number LPF-90-15

Output Power Other, 75W

Output Type Single

Input Voltage Other, 90~305VAC 127~431VDC

Output Voltage 15V

Output Frequency 47~63Hz

Output Current 5A

MODEL		LPF-90-15
OUTPUT	DC VOLTAGE	15V
	RATED CURRENT	5A

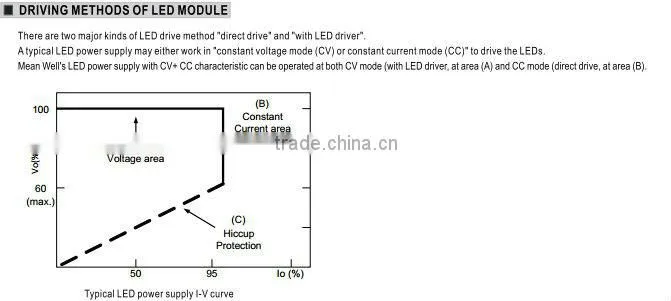

	CONSTANT CURRENT REGION	9~ 15V
	RATED POWER	75W
	RIPPLE & NOISE (max.) Note.2	150mVp-p
	VOLTAGE TOLERANCE Note.3	±4.0%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±1.5%
	SETUP, RISE TIME	2000ms, 80ms /115VAC at full load 1000ms,80ms/230VAC
	HOLD UP TIME (Typ.)	16ms /230VAC at full load 230VAC/115VAC
INPUT	POWER FACTOR	PF>0.97/115VAC, PF>0.95/230VAC ,PF>0.92/277VAC at full load
	VOLTAGE RANGE	90~ 305VAC 127 ~431VDC
	FREQUENCY RANGE	47 ~ 63Hz

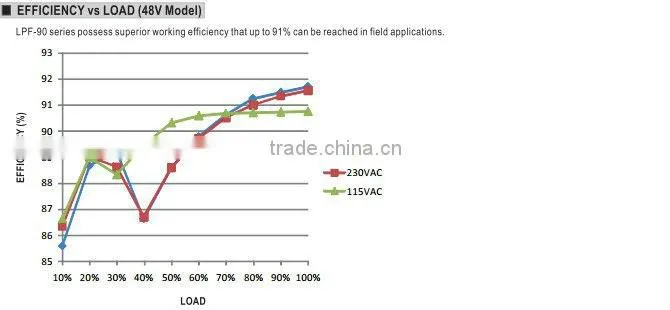

	EFFICIENCY (Typ.)	89%
	AC CURRENT (Typ.)	0.95A/115VAC 0.5A/230VAC 0.4A/277VAC
	INRUSH CURRENT (Typ.)	COLD START 70A(twitdth=435μs,measured at50%ipeak)at 230VAC
	LEAKAGE CURRENT	<0.75mA / 240VAC
PROTECTION	OVER CURRENT	95 ~ 108%
	OVER CURRENT	Protection type:Constant current limiting, recovers automatically after fault condi after fault condition is removed
	OVER VOLTAGE	18~ 21V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	90°C ±10°C(RTH2)
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, re-power on to recover

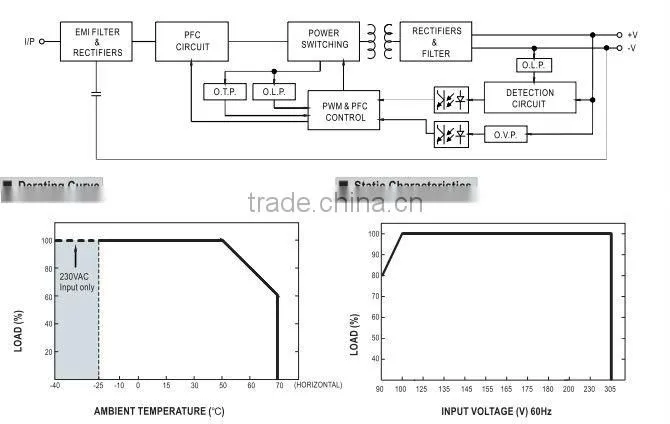

ENVIRONMENT	WORKING TEMP.	-35~+70°C (Refer to derating curve)
	WORKING HUMIDITY	20~95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+70°C, 10~95%RH
	TEMP. COEFFICIENT	±0.03%/°C (0~50°C)
	VIBRATION	10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC (Note 4)	SAFETY STANDARDS	UL8750,EN61347-1,EN61347-2-13independent ,EN62384,J61347-1,J61347-2-13approved,IP67approved:Design refer to UL60950-1,TUV EN60950-1
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC
	EMC EMISSION	Compliance to EN55015, EN61000-3-2,-3,Class C EN61000-3-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
OTHERS	MTBF	301.6K hrs min. MIL-HDBK-217F (25 )

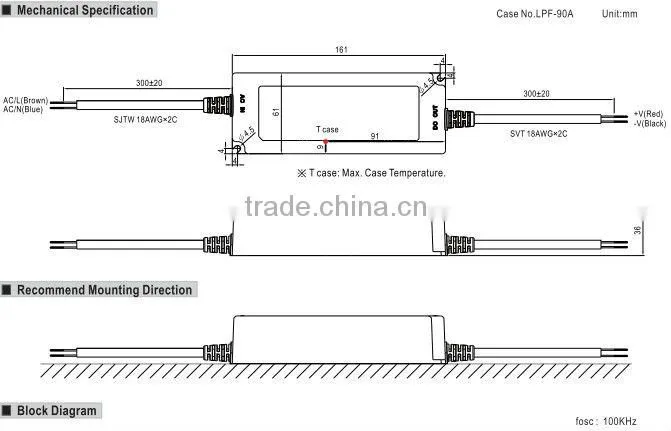

	DIMENSION	1616136mm (LWH)
	PACKING	0.7Kg; 20pcs/15Kg/0.73CUFT
NOTE	1 All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2.. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
