ice block making machine
1. Characteristic
2. Adopt stainless steel, good-looking appearance, durable
3. Procurement of imported from France compressor
4. Water cooling method
5.Apply famous brand Danfoss expansion valve
6.Suitable for seafood, food processing plants, ice-making factory or needs a lot of ice and other places
Ice size:
130*70*560mm 5kg
240*70*560mm 10kg
200*100*800mm 15kg
230*120*800mm 20kg
260*120*800mm 25kg
Model |
Dimension(mm) |
power |
Compressor |
Refrigerant |
output |
Net weight |
BZJ-1 |
3000x890x1100 |
6kw |
Tecumseh 6P |
R404 |
1t/24h |
1200kg |
BZJ-2 |
3000x890x1100 |
9kw |
Copeland 10P |
R22 |
2t/24h |
1400kg |
BZJ-3 |
4400x2200x1200 |
14kw |
Copeland 15P |
R22 |
3t/24h |
1600kg |
BZJ-4 |
4400x2200x1200 |
17kw |
Copeland 20P |
R22 |
4t/24h |
1800kg |
BZJ-5 |
6000x2200x1200 |
24kw |
Copeland 30P |
R22 |
5t/24h |
2000kg |
Product introduction:
The product description:
The number of compressor: 1 set
Temperature of the evaporator: -10°C
Operating system:
The water temperature: +40°C
The environment temperature: +40°C
Motor number: 2 set
Packing: Wooden box
Operation:
1. Adjust the machine. Make salty water as secondary refrigerant according with user manual. Fill water into ice moulds. Turn on the machine.

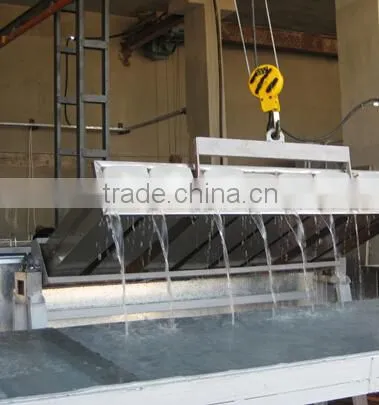

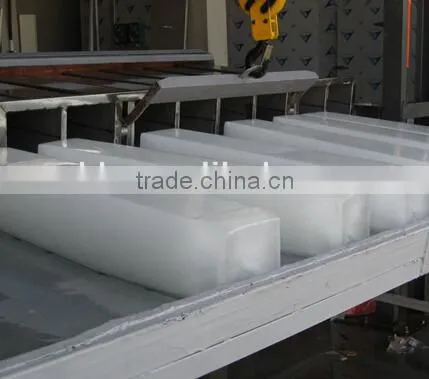

2. After ice block is frozen, take out the ice moulds and sink them into an unfreezing tank. Turn the ice moulds up side down and pour ice block out of the moulds. Carry the ice blocks into ice storage cool room.
3. Put the ice moulds back into the machines. Fill water in them and start the second batch.
please feel free to contact with us.
