Mean Well 960w Din Rail Power Supply 48v/960W Three Phase Industrial DIN RAIL With PFC Function

Mean Well 960w Din Rail Power Supply 48v/960W Three Phase Industrial DIN RAIL With PFC Function thumbnail-1
Mean Well 960w Din Rail Power Supply 48v/960W Three Phase Industrial DIN RAIL With PFC Function photo-1
US$ 1 - 100 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mean Well
Model Number:
TDR-960-48
Contact Supplier Request Quote Chat Now
Hangzhou Nuohan Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mean Well
Model Number TDR-960-48
Input Voltage Three-Phase 340 ~ 550VAC (Dual phase operation possible)
Output Voltage 48V
Output Power 960W
Output Frequency 47~63Hz
Output Current 20A

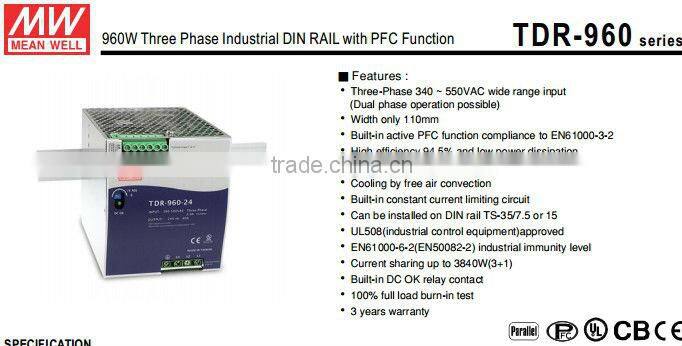

Mean well 960w din rail power supply 48v/960W Three Phase Industrial DIN RAIL with PFC Function

MODEL

TDR-960-48

OUTPUT

DC  VOLTAGE

48V

RATED CURRENT

20A

CURRENT  RANGE

0 ~ 20A

RATED POWER

960W

RIPPLE&NOISE (max.)   Note.2

250mVp-p

VOLTAGE ADJ. RANGE

48~ 55V

VOLTAGE TOLERANCE Note.3

±1.0%

LINE REGULATION

±0.5%

LOAD REGULATION

±1.0%

SETUP, RISE TIME

1000ms, 100ms / 400VAC  800ms, 100ms/500VAC at full load

HOLD UP TIME (Typ.

12ms/400VAC   14ms / 500VAC  at full load







 INPUT







VOLTAGE RANGE

Three-Phase 340 ~ 550VAC (Dual phase operation possible)

480 ~ 780VDC

POWER FACTOR (Typ.)

PF>0.88/400VAC  PF 0.86/500VAC     at full load

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

94.5%

AC CURRENT (Typ.)

 2A/400VAC    4A/500VAC

INRUSH CURRENT (Typ.)

COLD START  60A

LEAKAGE CURRENT

<3.5mA / 530VAC

PROTECTION

OVER LOAD

105 ~ 130% rated output power

Protection type : Constant current limiting, unit will shut down after

 3 sec. re-power on to recover

OVER TEMPERATURE

85°C± 5°C (TSW:detect on heatsink of power switch)

Protection type : Shut down o/p voltage, re-power on to recover after

temperature goes down

OVER VOLTAGE

56~ 65V

Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

DC OK REALY CONTACT RATINGS (max.)

60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load

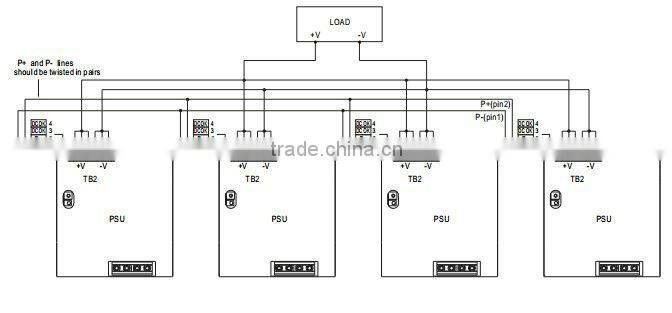

CURRENT SHARING

Please refer to function manual

ENVIRONMENT

WORKING TEMP.

-30~+70°C (Refer to derating curve)

WORKING HUMIDITY

20~95% RH non-condensing

STORAGE TEMP., HUMIDITY

-40~+85°C, 10~95%RH

TEMP. COEFFICIENT

±0.03%/°C (0~50°C)

VIBRATION

Component:10 ~ 500Hz, 2G 10min./1cycle, period for 60min.

each along X, Y, Z axes

SAFETY &

EMC

(Note 4)

SAFETY STANDARDS

UL508 approved, IEC60950-1 CB approved by SIQ

WITHSTAND VOLTAGE

I/P-O/P:3KVAC    I/P-FG:2KVAC O/P-FG:0.5KVAC

O/P-DC OK:0.5KVAC

EMC EMISSION

Compliance to EN55022(CISPR22), Class B,

EN61000-3-2,-3

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61000-6-2

(EN50082-2),EN61204-3, EN55024,heavy industry level,

criteria A

ISOLATION  RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH

OTHERS

MTBF

59.4K hrs min. MIL-HDBK-217F (25 )

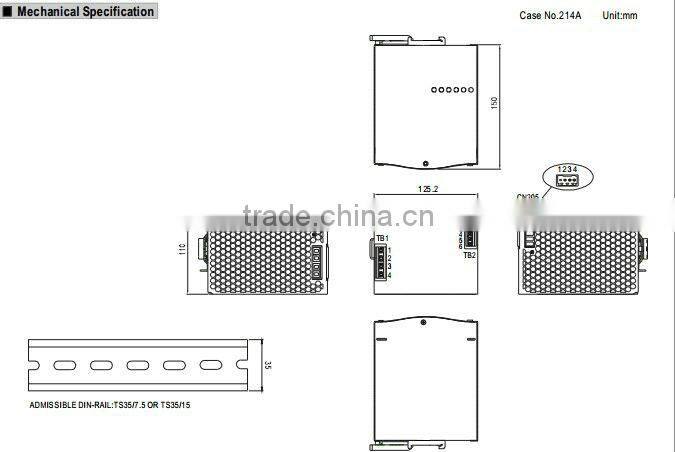

DIMENSION

110*125.2*150mm (W*H*D)

PACKING

2.47Kg ; 6pcs/15.8Kg/1.47CUFT

NOTE

1 All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of

   ambient temperature.

2.. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with

 a  0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment.

 The final equipment must be re-confirmed that it still meets EMC directives.

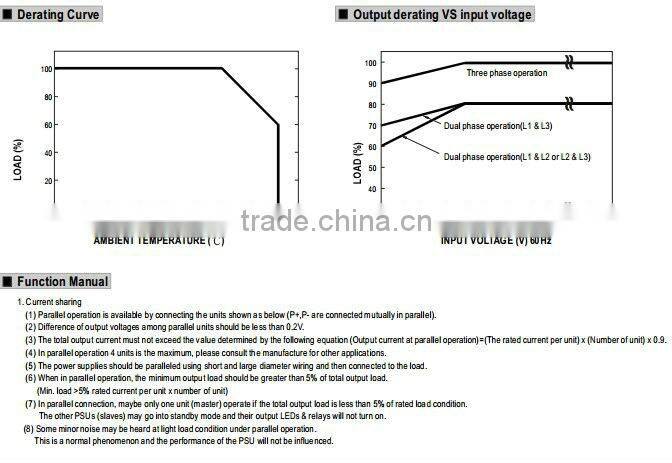

5.Dual phase operation is allowed under certain derating to output load.Please refer to

   derating curves for details.

666.Installation clearances:40mm on top,20mm on the bottom,5mm on the left and right side

are recommended when loaded permanently with full power.In case the adjacent device is a

heat source ,15mmclearance is recommended



Mean well 960w din rail power supply 48v/960W Three Phase Industrial DIN RAIL with PFC FunctionMean well 960w din rail power supply 48v/960W Three Phase Industrial DIN RAIL with PFC FunctionMean well 960w din rail power supply 48v/960W Three Phase Industrial DIN RAIL with PFC FunctionMean well 960w din rail power supply 48v/960W Three Phase Industrial DIN RAIL with PFC Function
