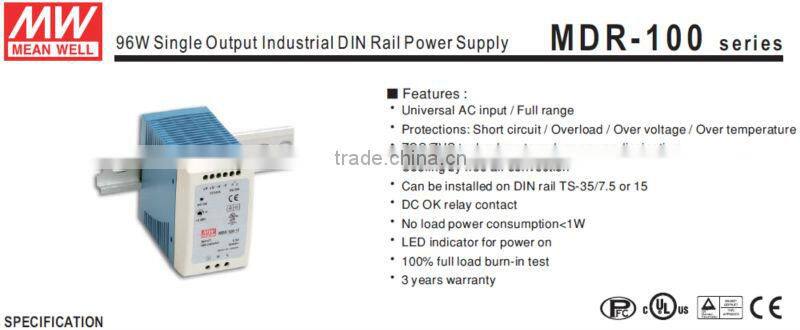

Meanwell 48V 100W Single Output Industrial DIN Rail Power Supply/48v Industrial DIN Rail 100w

Meanwell 48V 100W Single Output Industrial DIN Rail Power Supply/48v Industrial DIN Rail 100w thumbnail-1
Meanwell 48V 100W Single Output Industrial DIN Rail Power Supply/48v Industrial DIN Rail 100w photo-1
US$ 1 - 10 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Meanwell
Model Number:
MDR-100-48
Contact Supplier Request Quote Chat Now
Hangzhou Nuohan Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Meanwell
Model Number MDR-100-48
Input Voltage 85 ~ 264VAC 120 ~ 370VDC
Output Voltage 48V
Output Power 10W
Output Current 2A

Meanwell 48V 100W Single Output Industrial DIN Rail Power Supply/48v Industrial DIN Rail 100w

MODEL

MDR-100-48

OUTPUT



DC  VOLTAGE

48V

RATED  CURRENT

2A

CURRENT  RANGE

0~2A

RATED  POWER

96W

RIPPLE & NOISE (max.) Note.2

200MVP-P

VOLTAGE ADJ. RANGE

48 ~ 56V

VOLTAGE TOLERANCE Note.3

±1.0%

LINE  REGULATION

±1.0%

LOAD  REGULATION

±1.0%

SETUP.RISEHOLD.TIME Note.5

3000ms, 50ms/230VAC  3000ms, 50ms/115VAC at full load

HOLD UP TIME (Typ.)

50ms/230VAC   20ms/115VAC at full load

INPUT



VOLTAGERANGE

85 ~ 264VAC  120 ~ 370VDC

FREQUENCYRANGE

47~63HZ

POWER FACTOR(Typ.)

PF>0.95/230VAC    PF>0.98/115VAC at full load

EFFICIENCY (Typ.)

88%

AC CURRENT (Typ.)

1.3A/115VAC          0.8A/230VAC

INRUSH CURRENT  (Typ.)

COLD START 30A/115VAC 60A/230VAC

LEAKAGE CURRENT

<1mA / 240VAC

PROTECTION



OVERLOAD



105 ~ 150% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE



57.6~ 64.8V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE



90°C10°C(RTH2)detecton heatsink of power transistor

Protection type:Shut down o/p voltage,resistive

FUNCTION

DC OK SIGNAL

Relay contact rating(max.): 30V/1A resistive

ENVIRONMENT



WORKING TEMP

-10~60°C (refer to output load derating curve)

WORKING  HUMIDITY

20~90% RH non-condensing

STORAGE TEMP HUMIDITY

-40~+85°C 10~95%RH

TEMPCOEFFICIENT

±0.03%(0~50°C)

VIBRATION

Component:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY&EMC

Note 4)



SAFETY  STANDARDS

UL508, UL60950-1, TUV EN60950-1 approved, NEC class 2 / LPS compliant (24V,48V only)

WITHSTAND VOLTAGE

I/P-O/P:3KVAC     I/P-FG:1.5KVAC     O/P-FG:0.5KVAC

ISOLATIONRESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC 25°C 70%RH

EMI CONDUCTICN&

RADIATION

Compliance to EN55011, EN55022(CISPR22)classB

HARMONICCURRENT

Compliance to EN61000-3-2,-3

EMS IMMUNITY

Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A

QTHERS



MTBF

346Khrs min MIL-HDBK-217F(25°C)

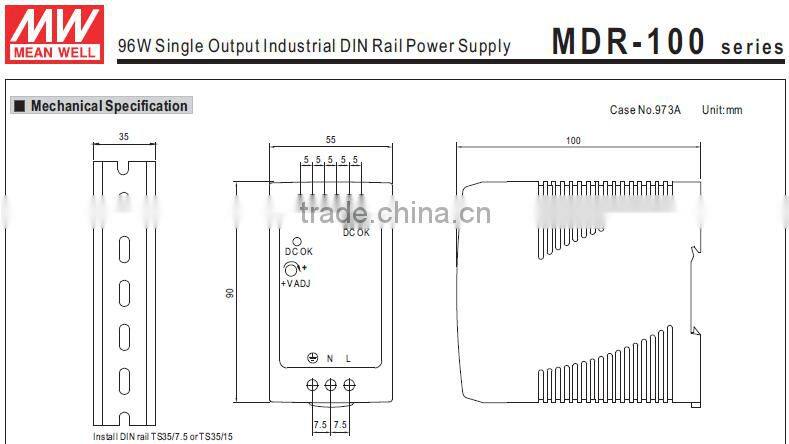

DIMENSION

55*90*100mm(L*W*H)

PACKING

0.42Kg; 30pcs / 13.6Kg / 0.82CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

5. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.

6.Deating maybe needed under low input voltages,please check the derating curve for more detail



Meanwell 48V 100W Single Output Industrial DIN Rail Power Supply/48v Industrial DIN Rail 100wMeanwell 48V 100W Single Output Industrial DIN Rail Power Supply/48v Industrial DIN Rail 100w
