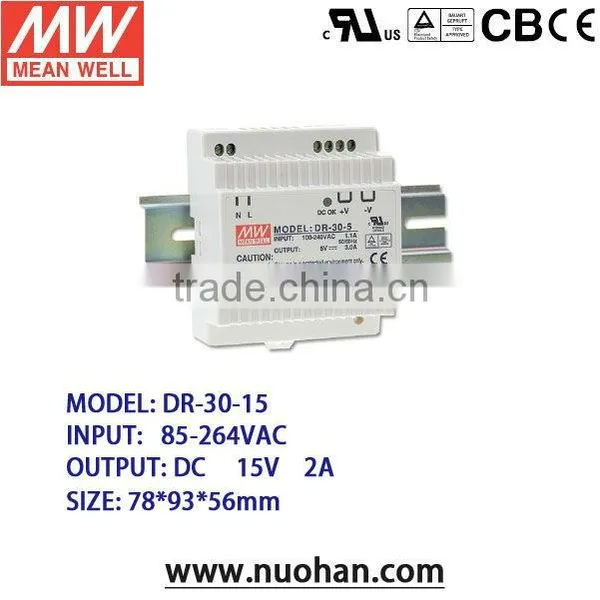

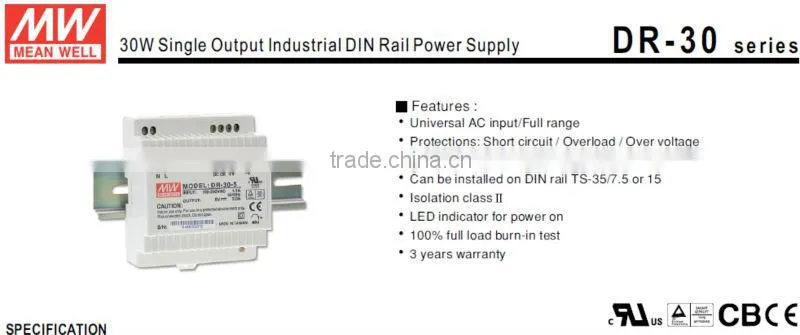

Help CenterMean Well DR-30-15 30W 15V DIN Rail Power Supply 30w 15v Industrial Power Supply
Related Products
-
Meanwell 20W Single Output Industrial DIN Rail Power Supply 24V/24v Industrial DIN RailUS$ 1 - 100MOQ: 10 Pieces -
Meanwell 480w Parallel Function Power Supply 24v/480W Single Output Industrial DIN RAIL With PFC and Parallel FunctionUS$ 1 - 100MOQ: 1 Piece
-
Meanwell 480W 48V Industrial DIN Rail Power Supply 48V/PFC Function/48V Industrial DIN RailUS$ 1 - 100MOQ: 10 Pieces
-
480w 24V 20a Aluminum Din Rail Power Supply 480w Meanwell DIN RAIL WDR-480-24US$ 1 - 100MOQ: 10 Pieces
-
Mean Well 960w Din Rail Power Supply 48v/960W Three Phase Industrial DIN RAIL With PFC FunctionUS$ 1 - 100MOQ: 10 Pieces
MODEL |
DR-30-15 |
|
OUTPUT |
DC VOLTAGE |
15V |
RATED CURRENT |
2A |
|
CURRENT RANGE |
0~2A |
|
RATED POWER |
30W |
|
RIPPLE & NOISE (max.) Note.2 |
120MVP-P |
|
VOLTAGE ADJ.RANGE |
13.5~16.5V |
|
VOLTAGE TOLERANCE Note.3 |
±1.0% |
|
LINE REGULATION |
±1.0% |
|
LOAD REGULATION |
±1.0% |
|
SETUP. RISEHOLD. TIME |
100ms, 30ms/230VAC 100ms, 30ms/115VAC at full load |
|
HOLD TIME(TYP.) |
100ms/230VAC 21ms/115VAC at full load |
|
INPUT |
VOLTAGE RANGE Note.6 |
85~264VAC 120~370VDC |
FREQUENCY RANGE |
47~63HZ |
|
EFFICIENCY (Typ.) |
82% |
|
AC CURRENT (Typ.) |
0.88A/115VAC 0.48A/230VAC |
|
INRUSH CURRENT (Typ.) |
COLD START 15A/115VAC 30A/230VAC |
|
PROTECTION |
OVER LOAD |
105~160%rated output power |
Protection type : Constant current limiting, recovers automatically after fault condition is removed |
||
OVER VOLTAGE |
17.25~20.25V |
|
Protection type:Shut odown o/p voltage,re-power on to recover |
||
ENVIRONMENT |
WORKING TEMP |

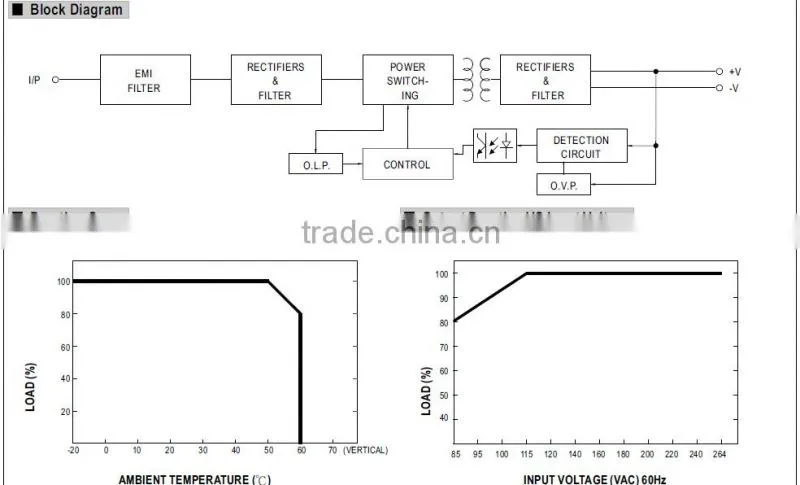

-20~+60°C (refer to output load derating curve) |
WORKING HUMIDITY |
20~90% RH non-condensing |
|
STORAGE TEMP HUMIDITY |
-40~+85°C 10~95%RH |
|
TEMPCOEFFICIENT |
±0.03%(0~50°C) |
|
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
|
|
SAFETY&EMC Note 4) |
SAFETY STANDARDS |
UL60950-1, TUV EN60950-1 approved, Design refer to EN50178 |
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC |
|
ISOLATION RESISTANCE |
I/P-O/P:100M Ohms/500VDC |
|
|
EMI CONDUCTICN& RADIATION |
Compliance to EN55011, EN55022(CISPR22)classB |
|
HARMONICCURRENT |
Compliance to EN61000-3-2,-3 |
|
EMS IMMUNITY |
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A |
|
QTHERS |
MTBF |
441.5Khrs min MIL-HDBK-217F(25°C) |

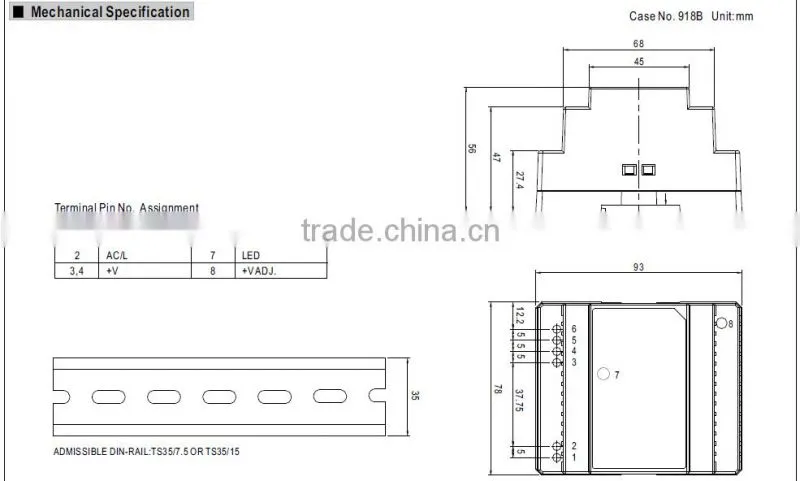

DIMENSION |
78*93*56mm(L*W*H) |
|
PACKING |
0.27Kg 48pcs / 14Kg / 1.02CUFT |
|
NOTE |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 °Cof ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
|
