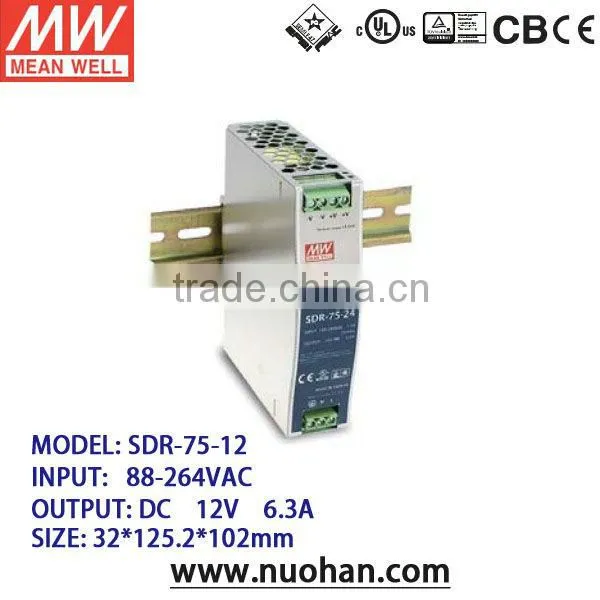

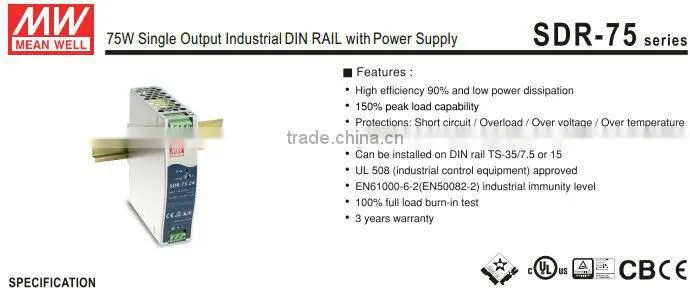

Meanwell 75w 12v Power Supply/75W Single Output Industrial DIN RAIL With Power Supply/power Supplies 12v

Name: Meanwell 75w 12v Power Supply/75W Single Output Industrial DIN RAIL With Power Supply/power Supplies 12v
Brand: Mean Well
SKU: 117417845
Availability: InStock

Meanwell 75w 12v Power Supply/75W Single Output Industrial DIN RAIL With Power Supply/power Supplies 12v thumbnail-1

Meanwell 75w 12v Power Supply/75W Single Output Industrial DIN RAIL With Power Supply/power Supplies 12v photo-1

US$ 1 - 10 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Mean Well

Model Number:

SDR-75-12

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Mean Well

Model Number SDR-75-12

Input Voltage 88~ 264VAC 127 ~ 370VDC

Output Voltage 12V

Output Power 75.6W

Output Current 6.3A

MODEL		SDR-75-12
OUTPUT	DC VOLTAGE	12V
	RATED CURRENT	6.3A
	CURRENT RANGE	0 ~ 6.3A
	RATED POWER	75.6W
	PEAK CURRENT	9.375A
	PEAK POWER	112.5W(3sec.)
	RIPPLE&NOISE (max.) Note.2	100mVp-p
	VOLTAGE ADJ. RANGE	12 ~ 14V
	VOLTAGE TOLERANCE Note.3	±1.0%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±1.0%
	SETUP, RISE TIME	3000ms, 60ms / 115VAC 1500ms, 60ms / 230VAC at full load
	HOLD UP TIME (Typ.	80ms/230VAC 20ms/115VAC at full load
INPUT	VOLTAGE RANGE	88~ 264VAC 127 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	88.5%
	AC CURRENT (Typ.)	1.4A/115VAC 0.85A/230VAC
	INRUSH CURRENT (Typ.)	30A/115VAC 50A/230VAC
	LEAKAGE CURRENT	<1mA / 240VAC
PROTECTION	OVER LOAD	Normally works within 110 ~150% rated output for more than 3 seconds and then shut down o/p voltage after 3 seconds,re-power On to recover
	OVER LOAD	150 ~170%rated power,constant current limiting with auto-recover Within 3 seconds and then shut down o/p voltage after 3 seconds, re-power on to recover
	OVER TEMPERATURE	100°C± 10°C (RTH2)detect on main of power transistor
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, re-power on to recover after temperature goes down
	OVER VOLTAGE	14~ 17V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover

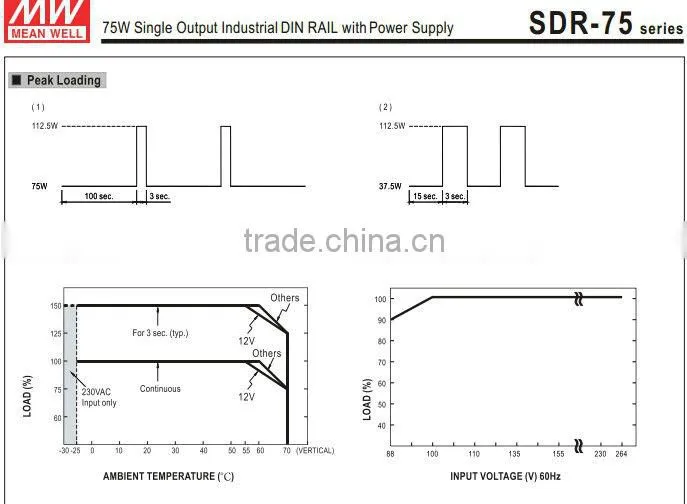

ENVIRONMENT	WORKING TEMP.	-30~+70°C (Refer to derating curve)
	WORKING HUMIDITY	20~95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+85°C, 10~95%RH
	TEMP. COEFFICIENT	±0.03%/°C (0~50°C)
	VIBRATION	Component:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)	SAFETY STANDARDS	UL508,TUV EN60950-1 approved ; design refer to GL
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	EMC EMISSION	Compliance to EN55022(CISPR22), EN61204-3Class B, EN61000-3-2,-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11,EN61000-6-2 (EN50082-2),EN61204-3, EN55024,heavy industry level, criteria A
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
OTHERS	MTBF	481.9K hrs min. MIL-HDBK-217F (25 )

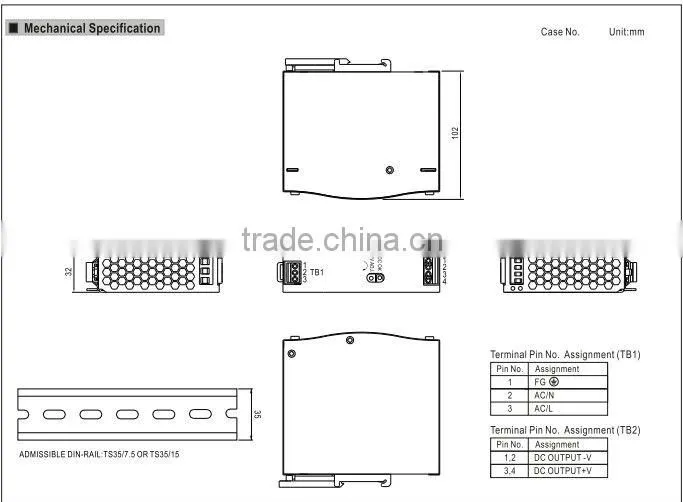

	DIMENSION	32125.2102mm (LWH)
	PACKING	0.51Kg;28pcs/15.3Kg/1.22CUFT
NOTE	1 All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2.. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5.Derating may be needed under low input voltage. Please check the static characteristics for more details. 666.3 seconds max. Please refer to peak loading curves. 7.Installation clearances:40mm on top,20mm on the bottom,5mm on the left and right side are recommended when loaded permanently with full power.In case the adjacent device is a heat source ,15mmclearance is recommended.
