Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Meanwell Din Rail DR-75-12 12V 75W Single Output Industrial DIN Rail Power Supply

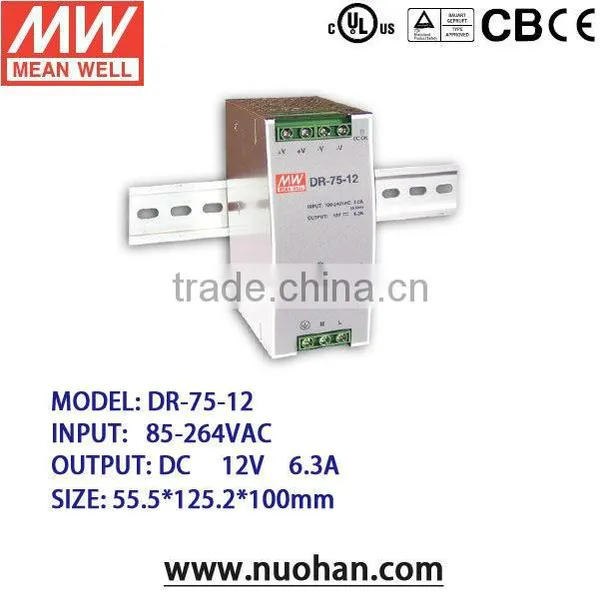

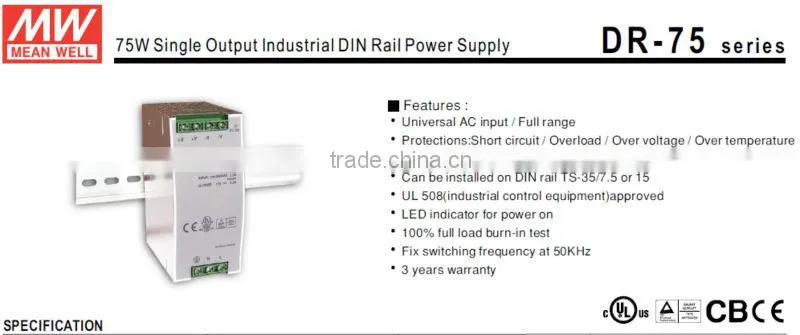

Meanwell Din Rail DR-75-12 12V 75W Single Output Industrial DIN Rail Power Supply

Name: Meanwell Din Rail DR-75-12 12V 75W Single Output Industrial DIN Rail Power Supply
Brand: Meanwell
SKU: 117417399

Meanwell Din Rail DR-75-12 12V 75W Single Output Industrial DIN Rail Power Supply thumbnail-1

Meanwell Din Rail DR-75-12 12V 75W Single Output Industrial DIN Rail Power Supply photo-1

US$ 1 - 10 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

DR-75-12

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number DR-75-12

Input Voltage 85 ~ 264VAC 120 ~ 370VDC

Output Voltage 12V

Output Power 75W

Output Frequency 47~63Hz

Output Current 6.3A

MODEL		DR-75-12
OUTPUT	DC VOLTAGE	12V
	RATED CURRENT	6.3A
	CURRENT RANGE	0~6.3A
	RATED POWER	76W
	RIPPLE & NOISE (max.) Note.2	100MVP-P
	VOLTAGE ADJ.RANGE	12~14V
	VOLTAGE TOLERANCE Note.3	±2.0%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±1.0%
	SETUP. RISEHOLD. TIME	1000ms, 60ms/230VAC 1800ms, 60ms/115VAC at full load
	HOLD TIME(TYP.)	60ms/230VAC 12ms/115VAC at full load
INPUT	VOLTAG ERANGE Note.6	85~264VAC 120~370VDC
	FREQUENCY RANGE	47~63HZ
	EFFICIENCY (Typ.)	76%
	AC CURRENT (Typ.)	1.6A/115VAC 0.96A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 20A/115VAC 40A/230VAC
	LEAKAGE CURRENT	<1mA / 240VAC
PROTECTION	OVER LOAD	105~160%rated output power
	OVER LOAD	Protection type : Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	15~16.5V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	85°C±5°C (TSW1) detect on heat sink of power transistor
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

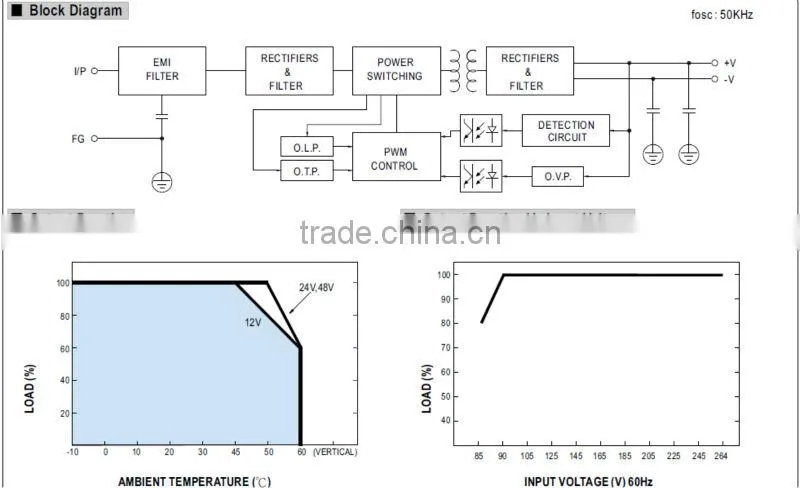

ENVIRONMENT	WORKING TEMP	-10~+60°C (refer to output load derating curve)
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP HUMIDITY	-20~+85°C 10~95%RH
	TEMPCOEFFICIENT	±0.03%(0~50°C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY&EMC Note 4)	SAFETY STANDARDS	UL508, TUV EN60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
	EMI CONDUCTICN& RADIATION	Compliance to EN55011, EN55022(CISPR22)classB
	HARMONICCURRENT	Compliance to EN61000-3-2,-3
	EMS IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, ENV50204, EN55024, EN61000-6-2 (EN50082-2), heavy industry level, criteria A
QTHERS	MTBF	123.1Khrs min MIL-HDBK-217F(25°C)

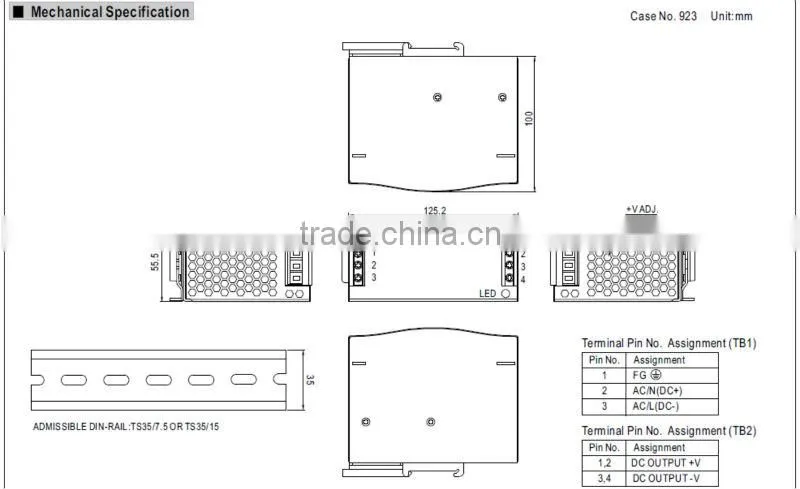

	DIMENSION	55.5125.2100mm(LWH)
	PACKING	0.6Kg 20pcs / 13Kg / 1.29CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 °Cof ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
