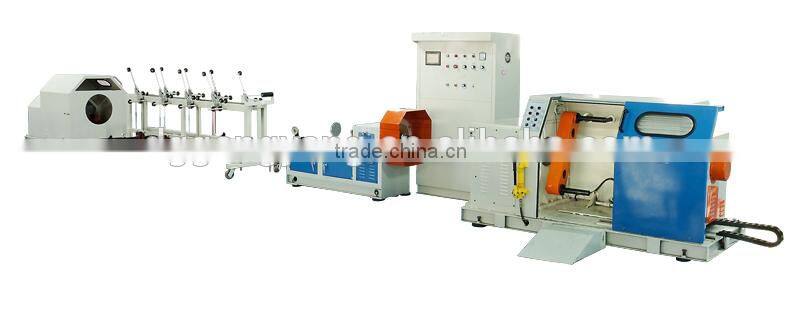

Single Twisting Machine for Wire and Cable

Name: Single Twisting Machine for Wire and Cable
Brand: GANGYANG MACHINE
SKU: 117417131
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

GANGYANG MACHINE

Model Number:

GY630

Dongguan Gangyang Wire And Cable Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name GANGYANG MACHINE

Model Number GY630

Usage Twisting

Product Description

1.Suitable for high frequnce cable data electrical core wire and manykinds of pair twisting.

2.High speed of rotation,the production efficiency is two times than vertical singletwisting machine.

3.Tapping and take-up tension keep constant,controlled bymagnetic particle clutch,automatically adjust the tesion,urgentstop once wire broken.

4.Shaft arange take up,no damge in product process,the size could establishment by yourself.

Technical parameter

Model	GY-630	GY-800	GY-1000
Application	PE or PVC coated wire stranded center package or on its side with the package with
Take-up shaft dimensions	630mm(diameter)	800mm	1000mm
Pay-off shaft dimensions	400mm-500mm	400mm-630mm	400mm-630mm
For line installation	Horizontal scroll bars to change row line equipment
For diameter	0.6mm-3.0mm	0.6mm-3.0mm	1.0mm-5.0mm
Stranded wire	MAX14mm	MAX20mm	MAX25mm
Lay	20mm-200mm	30mm-300mm	30-350mm
Speed	1000rpm	800rpm	600rpm
Power	10HP variable frequency motor	10HP variable frequency motor	15HP variable frequency motor
Brake	Pneumatic brake
Taping device	Centers around the package or on its side until packet
Electrical control	Programmable controller can be used (Plc) for automatic control, the main operating parameters of automatic tracking
