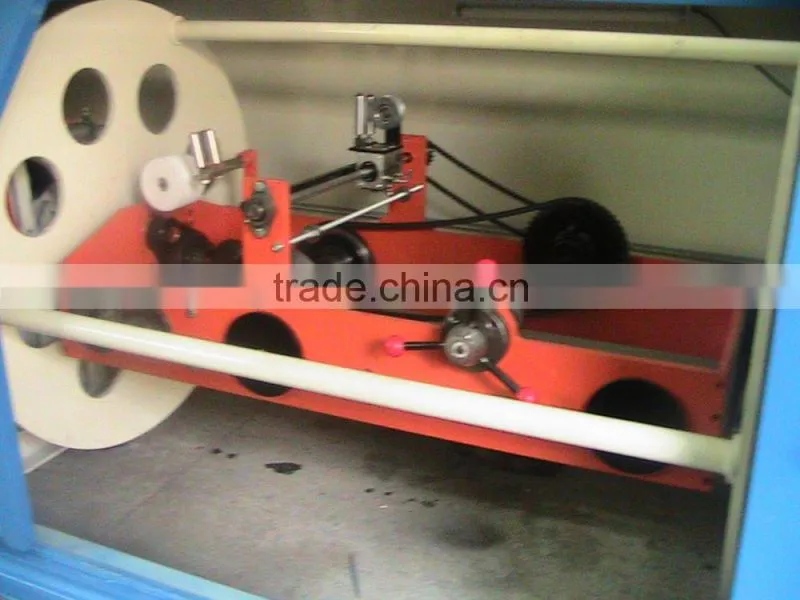

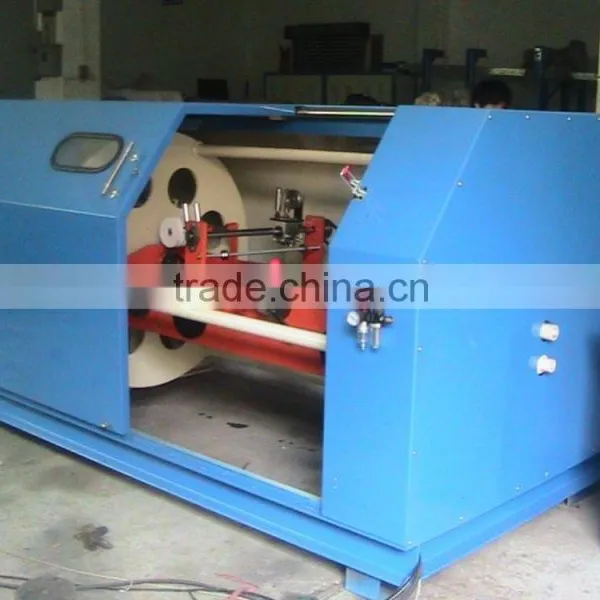

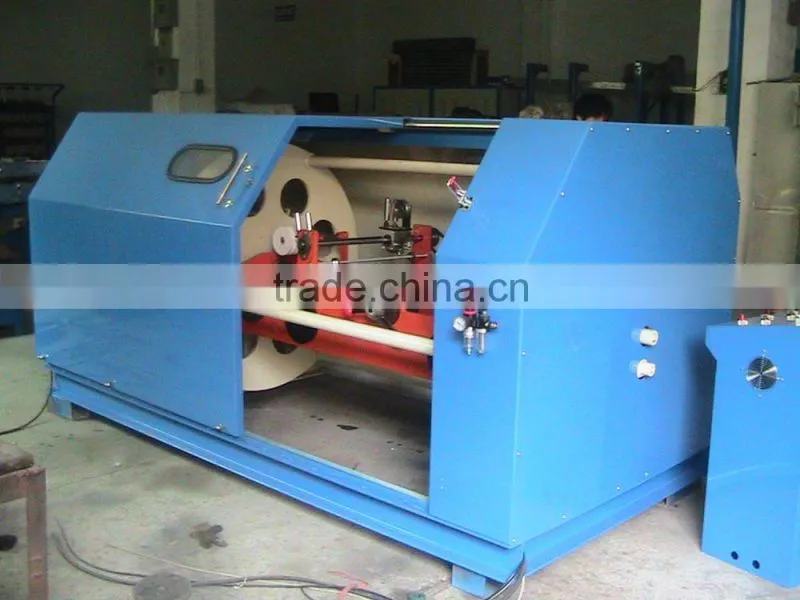

Help CenterHorizontal Type LAN Cable Twisting Machine
Related Products
-
GY-500High Speed Vertical Double Bobbins Back-twisting MachineNegotiableMOQ: 1 Set -
Hot! Wire&cable High Speed Horizontal Cantilever Single Twisting MachineNegotiableMOQ: 1 Set
-
High-speed Single Wire Twisting MachineNegotiableMOQ: 1 Set
-
New Type Single Twisting Machine for Wire and CableNegotiableMOQ: 1 Set
-
GY-500/630 High Speed Pair Twisting MachineNegotiableMOQ: 1 Set
Specifications
1.Horizontal system2.High efficiency, low noise
3.Automatic high speed
Apoplication
Backward twistingsynchronize while pair twisting for frequent data cable LAN CABLE (CAT6 cable) to insulated core wire position interlace equilibria,over comes to pair twist tension strength inequality,Thus make high-speed pair twist,Quality equality,Section from precisely.Adapts to high-frequency cable to twist synchronize backward twisting.
Technical parameter
| Machine tpe | GY-400 | GY-500 | GY-630 |
| Application wire to twisted | φ0.75mm~φ1.5mm | φ0.75mm~φ1.5mm |
φ0.8mm~φ4.0mm |
| Retreat diection | S/Z Exchange wraping diection | ||
| Tension range | 300g-1000g | 300g-1000g | 1000g-3000g |
| Power | 5.5HP | 7.5HP | 10HP |
| Reel take-up | φ400 | φ500 | φ630 |
| Control | Magnetic clutch tenson control,linkage with cable stranding machine with wire break auto stop function | ||
Pre-sale Services
1. Sport expedition and Professional feasibility proposal;
2. Equipment configuration, Model Reference and Equipment technical advice.
3. For customers invest, Matching, Material selection, Development personnel and Training full-service.
After-sales Service
1. Regular maintenance and product tracking service;
2. Cost price for required parts in life;
3. Provide high quality and fastest efficient after service.
Warranty Item
The warranty period is one year (since the product is installed in the buyer factory).
Our company was founded in 1999,long time dedicate to in wire cable & wire cable equipment develop,
Manufacture, Sale, Service In all-in one industry automatic manufacture.
Main product series :Wire & cable of Extrusion machine, Stranding machine, Twisting machine, Coiling machine,
Package machine, Winding machine and Pay off & Take up unit etc.
