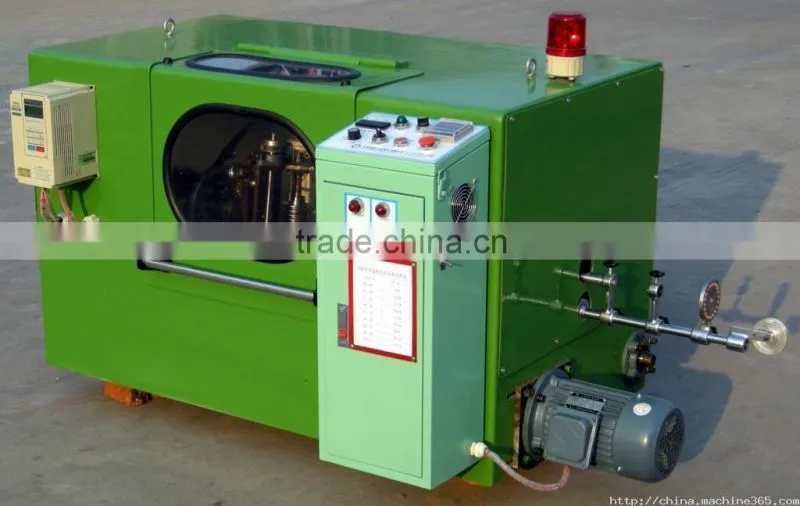

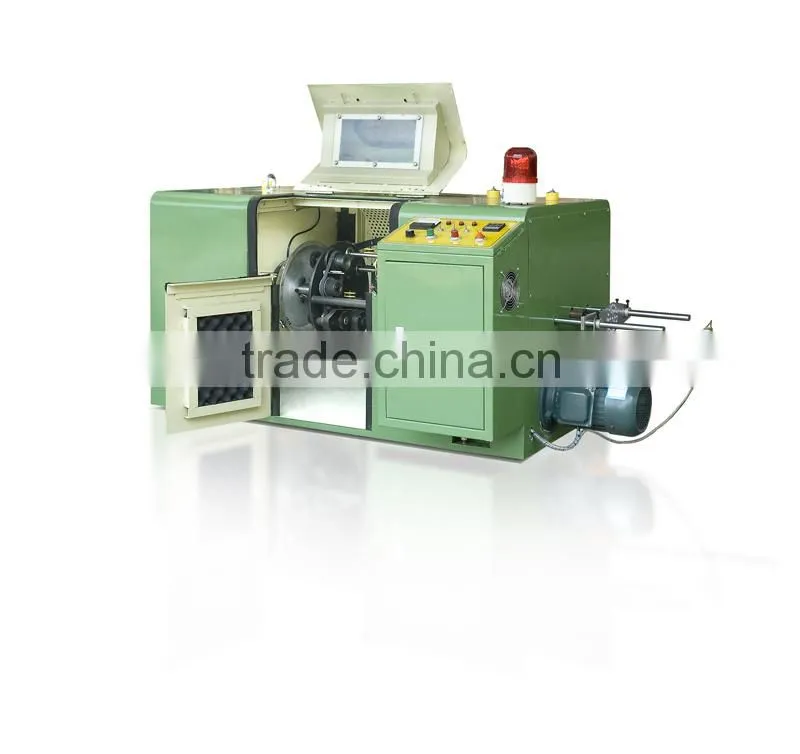

Help CenterHigh Speed Cable Twisting Machine
Related Products
-
From China Cable and Wire Winding MachineNegotiableMOQ: 1 Set -
High Speed Wire&Cable Twisting/Bunching MachineNegotiableMOQ: 1 Set
-
New Design 2016 Single Twist Machine Twisted Pair Cable MachineNegotiableMOQ: 1 Set
-
High Speed Vertical Single Cable Twisting MachineNegotiableMOQ: 1 Set
-
High Speed Cantilever Single Twisting Cable MachineNegotiableMOQ: 1 Set
Specifications
1.Suitable for stranding process in making bare copper wires,tinned copperwires and enameled cables.2.Fast shipping
Model |
XY-300 |
XY-400 |
XY-500 |
XY-630 |
Max.rotate speed |
MAX.3000RPM |
MAX.2500RPM |
MAX.2000RPM |
MAX.1600RPM |
Stranded Limits |
Stranded copper wire for more than seven stocks |
Stranded copper wire for more than seven stocks |
Stranded copper wire for more than seven stocks |
Stranded copper wire for more than seven stocks |
Wire diameter |
φ0.05~φ0.28mm |
φ0.08~φ0.45mm |
φ0.08~φ0.45mm |
φ0.38~φ1.00mm |
Stranded basal area |
0.035mm²-0.45mm² |
0.035mm²-1.25mm² |
0.035mm²-1.25mm² |
0.80mm²-5.5mm² |
Lay |
4.36-17mm(Standard 28) |
4.08-3.15mm(Standard 28) |
4.22-39.64mm(Standard 20) |
11.15-60.24mm(Standard 20) |
Twist to |
S;Z |
S;Z |
S;Z |
S;Z |
Take-up shaft |
300mm |
400mm |
500mm |
630mm |
Traverse drive |
Bearing-type cable, row width, row spacing can be adjusted |
Bearing-type cable, row width, row spacing can be adjusted |
Bearing-type cable, row width, row spacing can be adjusted |
Bearing-type cable, row width, row spacing can be adjusted |
Drive motor |
3HP Motor + dual control |
5HP Motor + dual control |
5HP Motor + dual control |
7.5HP Motor + dual control |
Center height |
630mm |
700mm |
750mm |
850mm |
Brake |
Disconnect the battery inside and outside the auto brake brake |
Disconnect the battery inside and outside the auto brake brake |
Disconnect the battery inside and outside the auto brake brake |
Disconnect the battery inside and outside the auto brake brake |
Tension |
Using magnetic powder clutch control, adjust the outside |
Using magnetic powder clutch control, adjust the outside |
Using magnetic powder clutch control, adjust the outside |
Using magnetic powder clutch control, adjust the outside |
Mechanical Dimensions |
2050×1090×1250mm |
2400×1100×1250mm |
2200×1310×1460mm |
2900×1500×1650mm |
Weigh |
930KG |
1500KG |
2400KG |
3350KG |
Coating |
No.Apple Green |
No.Apple Green |
No.Apple Green |
|
If you are interested in our products,please contact us!
Company Name:Dongguan GangYang Wire And Cable Machinery Co., Ltd.
