Home > Products > Single twisting Machine > wire and cable stranding machine from China

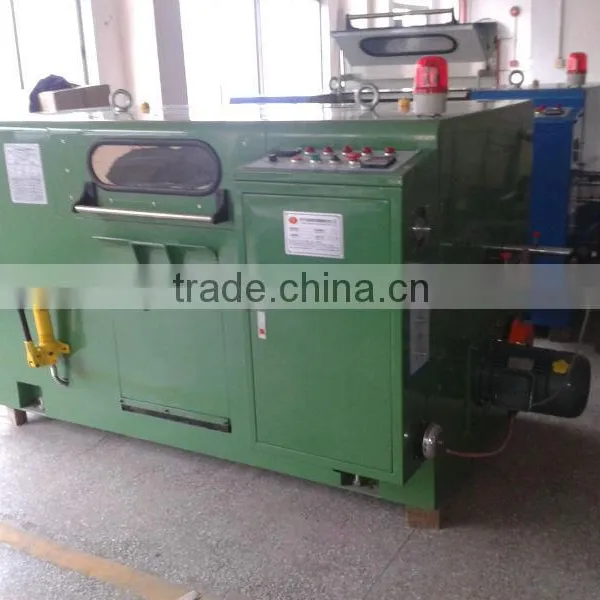

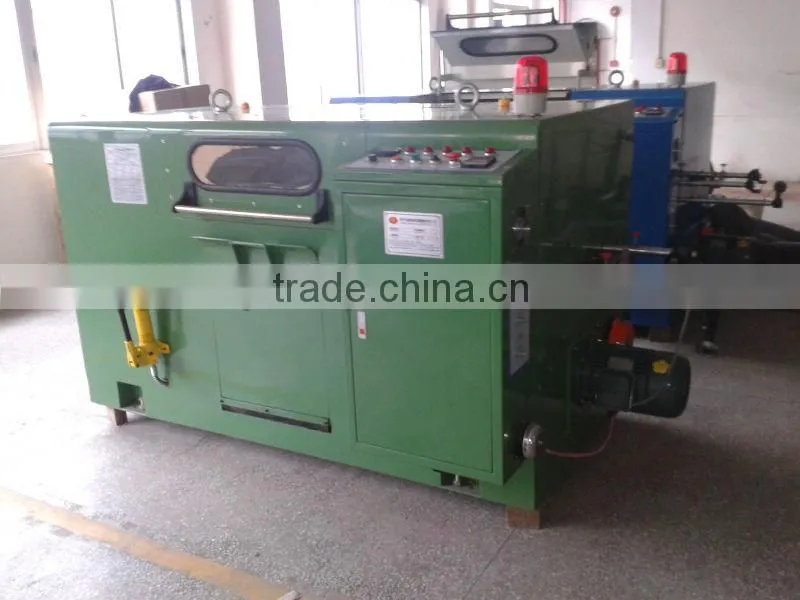

wire and cable stranding machine from China
- 10 Set / Sets per Month
- Shenzhen
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | GangYang | Model Number: | GY-500 |
Usage: | Twisting |
Product Description
Specifications
1.Have past the ISO9001,CE,certification.2.High quanlity and good price.
3.Delivery on time and T/T Payment 30%deposit.
1.Have past the ISO9001,CE,certification.
2.High quanlity and good price.
3.Delivery on time and T/T Payment 30%deposit.
Packaging & Delivery
Packaging Detail: | simple packing |
Delivery Detail: | 30 days after confirmation of order |
Specifications
Intermediate/small wire drawing with annealing machine
wire and cable machine equipment
Intermediate/small wire drawing with annealing machine
wire and cable machine equipment
Detailed Selling Lead Description
Automatic tension control by dual-inverter.
Zero-slip pilot design,high productivity.
Low power consumption.
Widely used imported advanced parts and components ensure high reliability.
Technical parameters
Type | 17DHT |
Power control | Dual-inverter |
Input wire | Φ0.8-Φ1.5mm |
Output wire | Φ0.2-Φ0.5mm |
Maximum line speed | 1800M/min |
Maximum number of dies | 17 |
Mechanical elongation | 15%+8.7% |
Construction of the machine body | Casting +steel plate welding |
Final capstan | Φ206 |
Take-up reel | Φ300, Φ400 |
Traverse | Flat belt |
Drawing/take-up motor | AC 15kW/AC 4kW |
Drive | Imported advanced flat belt drive |
Correction system | PIDAutomatic control of take-up by PID |
Tension adjustment | Weight type tension pulley |
Maximum copper load | 50kg |
Power supply | 380V, 50/60HZ |
Annealing capacity | 25KVA |
Brake | Magnetic brake |
Volume of lubricant | 40L/min |
Lubrication of wire drawing | Spraying |
DimensionsL×W×H | 1650×1100×2050mm |
Weight | ca.3000kg |
