Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Meanwell Hlg-600h-20a Ip65 600w 20v 28a Led Driver 220v Quality Choice

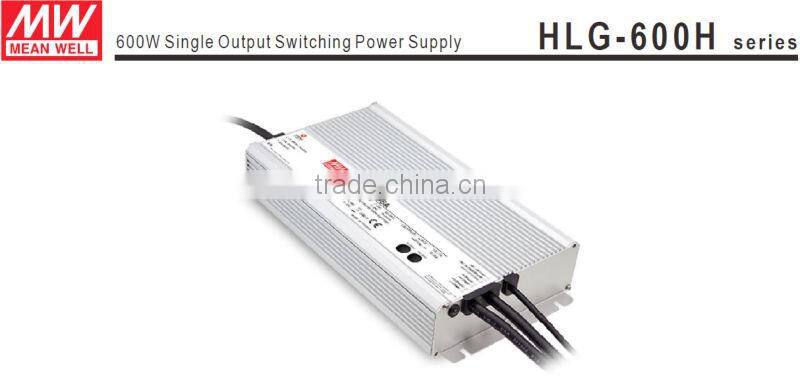

Meanwell Hlg-600h-20a Ip65 600w 20v 28a Led Driver 220v Quality Choice

Name: Meanwell Hlg-600h-20a Ip65 600w 20v 28a Led Driver 220v Quality Choice
Brand: Meanwell
SKU: 117415011
Availability: InStock

Meanwell Hlg-600h-20a Ip65 600w 20v 28a Led Driver 220v Quality Choice thumbnail-1

Meanwell Hlg-600h-20a Ip65 600w 20v 28a Led Driver 220v Quality Choice photo-1

US$ 1 - 10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

HLG-600H-20A

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number HLG-600H-20A

Output Power Other, 560W

Output Type Single

Input Voltage Other, 90 ~ 305VAC 127 ~ 431VDC

Output Voltage 20V

Output Frequency 47~63Hz

Output Current 28A

Specifications

MODEL			HLG-600H-20
OUTPUT	DC VOLTAGE		20V
	CONSTANT CURRENT REGION Note.4		10~20V
	RATED CURRENT		28A
	RATED POWER		560W
	RIPPLE & NOISE (max.) Note.2		150mVp-p
	VOLTAGE ADJ. RANGE Note.6		17~21V
	CURRENT ADJ. RANGE		Can be adjusted by internal potentiometer A type only
			14~28A
	VOLTAGE TOLERANCE Note.3		±1.5%
	LINE REGULATION		±0.5%
	LOAD REGULATION		±1.0%
	SETUP. RISE TIME Note.8		500ms, 80ms at full load 230VAC /115VAC
	HOLD UP TIME (Typ.)		15ms at full load 230VAC /115VAC
INPUT	VOLTAGE RANGE Note.5		90 ~ 305VAC 127 ~ 431VDC
	FREQUENCY RANGE		47~63HZ

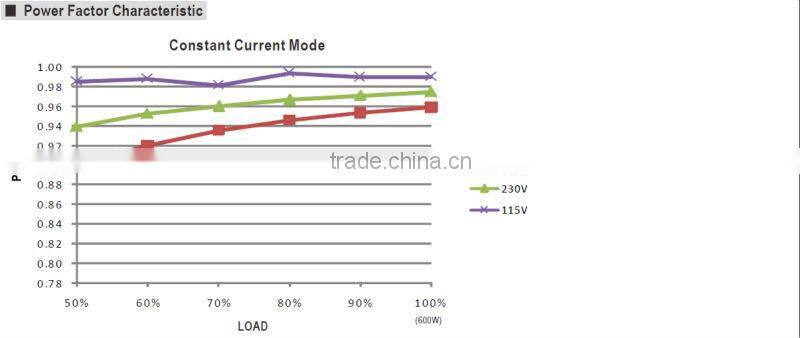

	POWER FACTOR (Typ.)		PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
	TOTAL HARMONIC DISTORTION		THD<20% when output loading>=50% at 115VAC/230VAC input and output loading>=75% at 277VAC input
	EFFICIENCY (Typ.)	230VAC	94.5%
		277VAC	94.5%
	AC CURRENT (Typ.)		7A / 115VAC 3.3A / 230VAC 2.9A / 277VAC
	INRUSH CURRENT (Typ.)		COLD START 70A(twidth=1000μs measured at 50% lpeak) at 230VAC
	LEAKAGE CURRENT		<0.75mA / 277VAC
PROTECTION	OVER CURRENT Note.4		95 ~ 108%
			Protection type : Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT		Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE		22~26V
			Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE		Shut down o/p voltage, re-power on to recover
FUNCTION	REMOTE ON/OFF CONTROL		Power on: “Hi”>2~5V or (Open circuit) Power off: :Low”<0~0.5V or (Short circuit)
	5V STANDY		5VSB : 5V 0.5A ; tolerance ±5%, ripple : 100mVp-p(max.)

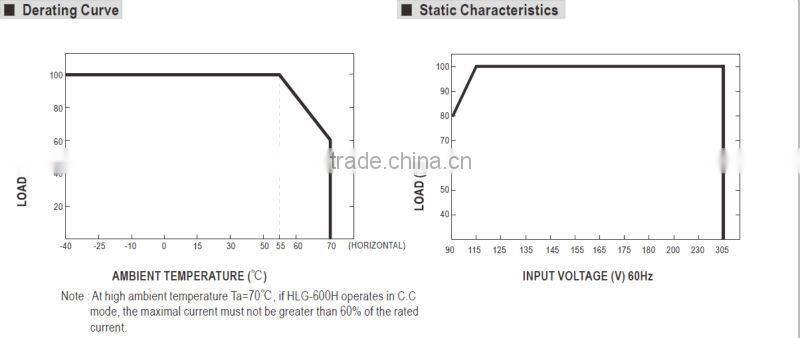

ENVIRONMENT	WORKING TEMP.		-40 ~ +70℃(Refer to "Derating Curve")
	WORKING HUMIDITY		20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY		-40 ~ +85℃, 10 ~ 95% RH
	TEMP. COEFFICIENT		±0.03%/℃(0 ~ 60℃)
	VIBRATION		10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC	SAFETY STANDARDS Note.7		UL8750,CSAC22.2No.250.13-12, EN61347-1, EN61347-2-13 independent,IP65 or IP67 approved
	WITHSTAND VOLTAGE		I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE		I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION		Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (≥50% load) ; EN61000-3-3
	EMC IMMUNITY		Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A
QTHERS	MTBF		76.9K hrs min. MIL-HDBK-217F (25℃)
	DIMENSION		28014448.5mm (LWH)
	PACKING		3.9Kg;4pcs/16.6Kg/0.9CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Constant current operation region is within 50%~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design. 5. Derating may be needed under low input voltages. Please check the static characteristics for more details. 6. A type only. 7. Safety and EMC design refer to EN60598-1, subject CNS15233, GB7000.1, FCC part18. 8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time. 9. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 10. Refer to warranty statement
