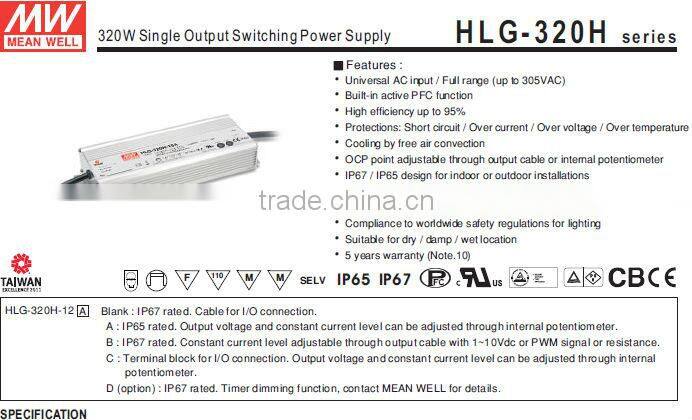

Meanwell Hlg-320h-15a 320w 15v Dali Dimming Led Driver

MODEL

HLG-320H-15A

OUTPUT

DC VOLTAGE

15V

CONSTANT CURRENT REGION Note.4

7.5~15V

RATED CURRENT

19A

RATED POWER

285W

RIPPLE & NOISE (max.)        Note.2

150mVp-p

VOLTAGE ADJ. RANGE          Note.5

13.5 ~ 17V

CURRENT ADJ. RANGE

Can be adjusted by internal potentiometer A type only

9.5 ~ 19A

VOLTAGE TOLERANCE        Note.3

±2.0%

LINE REGULATION

±0.5%

LOAD REGULATION

±1.5%

SETUP. RISE TIME     Note.7

2500ms, 80ms at full load     230VAC /115VAC

HOLD UP TIME (Typ.)

15ms at full load    230VAC /115VAC

INPUT

VOLTAGE RANGE       Note.4

90 ~ 305VAC 127 ~ 431VDC

FREQUENCY RANGE

47~63HZ

POWER FACTOR (Typ.)

PF>0.98/115VAC, PF>0.95/230VAC, PF>0.94/277VAC at full load (Please refer to "Power Factor Characteristic" curve)

EFFICIENCY (Typ.) (230Vac)

92.5%

EFFICIENCY (Typ.) (277Vac)

93%

AC CURRENT (Typ.)

3.5A / 115VAC         1.65A / 230VAC         1.45A / 277VAC

INRUSH CURRENT (Typ.)

COLD START 75A/230VAC

LEAKAGE CURRENT

<0.75mA / 277VAC

PROTECTION

OVER CURRENT            Note.4

95 ~ 108%

Protection type : Constant current limiting, recovers automatically after fault condition is removed

SHORT CIRCUIT

Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

17.5 ~ 21V

Protection type : Shut down and latch off o/p voltage, re-power on to recover

OVER TEMPERATURE

100°C±10°C(RTH2)

Protection type : Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.

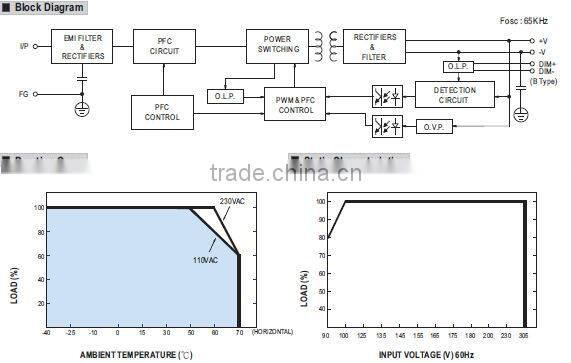

-40 ~ +70°C(Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 95% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +80°C, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/°C(0 ~ 50°C)

VIBRATION

10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY&EMC

SAFETY STANDARDS       Note.7

UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent (except for HLG-320H C type),IP65 or IP67, J61347-1,

WITHSTAND VOLTAGE

I/P-O/P:3.75KVAC     I/P-FG:2KVAC     O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH

EMC EMISSION

Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C(≥50% load) ; EN61000-3-3

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria B

QTHERS

MTBF

157.1K hrs min.    MIL-HDBK-217F (25°C)

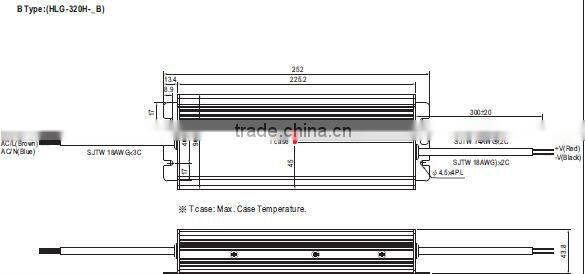

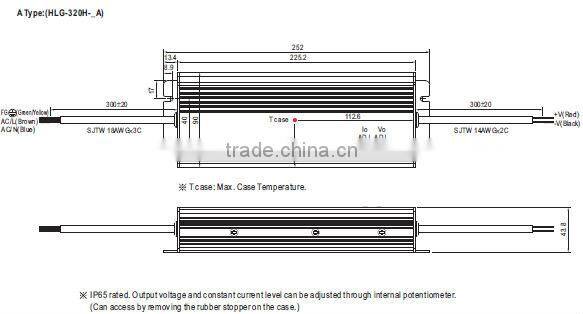

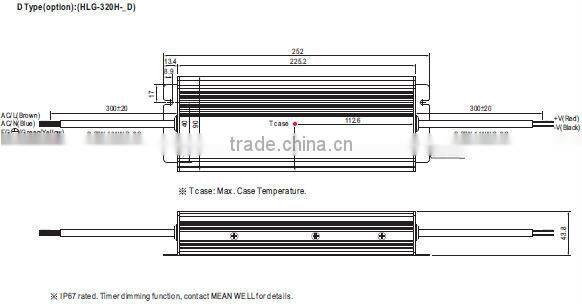

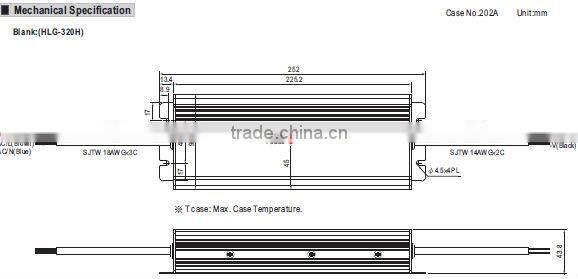

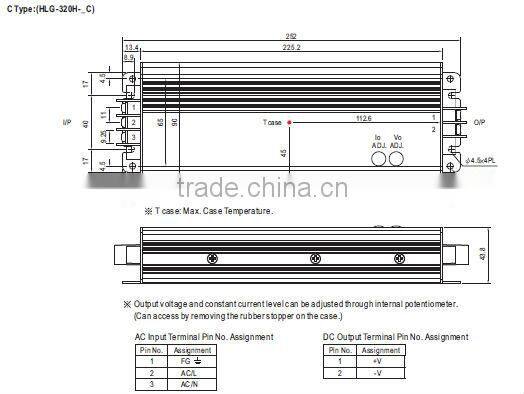

DIMENSION

252*90*43.8mm (L*W*H)

PACKING

1.88Kg; 8pcs/16Kg/0.92CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance: includes set up tolerance, line regulation and load regulation.

4. Constant current operation region is within 50% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design.

5. Derating may be needed under low input voltages. Please check the static characteristics for more details.

6. Type A and type C only.

7. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18.

8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.

9. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.

10. Refer to warranty statement.
