Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Meanwell 0.5W DC-DC Regulated Single Output Converter Switching Power Supply Switch Supply Power

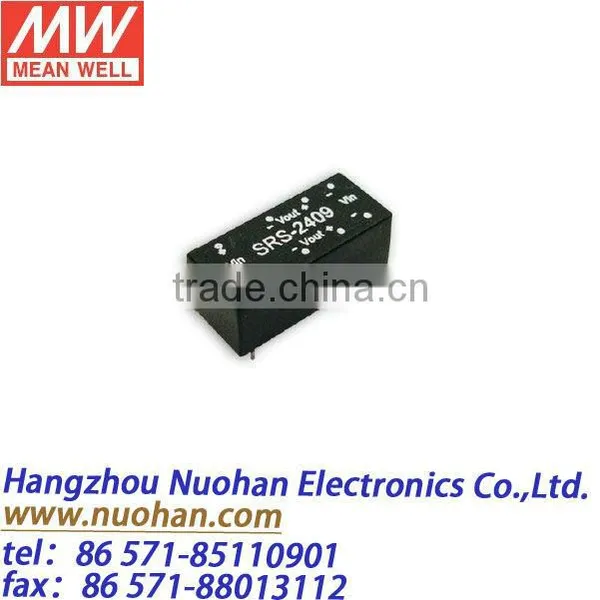

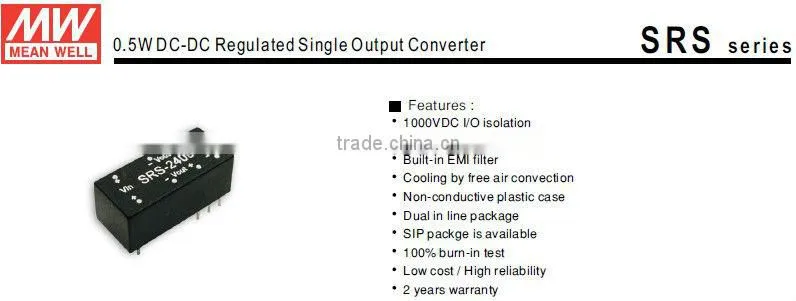

Meanwell 0.5W DC-DC Regulated Single Output Converter Switching Power Supply Switch Supply Power

Name: Meanwell 0.5W DC-DC Regulated Single Output Converter Switching Power Supply Switch Supply Power
Brand: Meanwell
SKU: 117411599
Availability: InStock

Meanwell 0.5W DC-DC Regulated Single Output Converter Switching Power Supply Switch Supply Power thumbnail-1

Meanwell 0.5W DC-DC Regulated Single Output Converter Switching Power Supply Switch Supply Power photo-1

US$ 1 - 10 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

SRS-2405

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

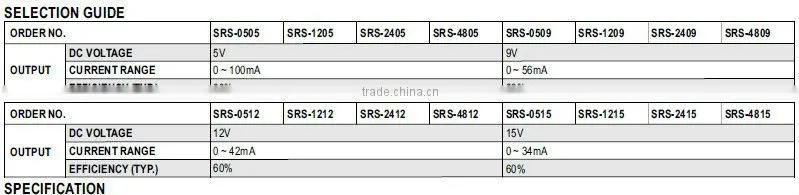

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number SRS-2405

Output Power Other, 0.5W

Output Type Single

Input Voltage Other, 21.6 ~ 26.4V

Output Voltage 5V

Output Current 0 ~ 100mA

OUTPUT	RATED POWER		0.5W
	RIPPLE & NOISE (max.) Note.2		100mVp-p
	LINE REGULATION		±1.0%
	LOAD REGULATION Note.3		±1.0%
	VOLTAGE ACCURACY		±2.0% (Typ.) ±3.0% (max.)
	SWITCHING FREQUENCY		50KHz min.
INPUT	VOLTAGE RANGE		21.6 ~ 26.4V
	NORMAL VOLTAGE		24V
	INPUT CURRENT	Full load	36mA
		No load	9mA
	FILTER		Capacitor type
	PROTECTION		Fuse recommended
PROTECTION (Note. 4)	OVER LOAD		150 ~ 350% rated output power
			Protection type : Hiccup mode, recovers automatically after fault condition is removed
	SHORT CIRCUIT		All output equipped with short circuit
			Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT	WORKING TEMP.		-25~+71°C (Refer to output load derating curve)
	WORKING HUMIDITY		20 ~ 90% RH on-condensing
	STORAGE TEMP., HUMIDITY		-25~+105°C, 10~95%RH
	TEMP. COEFFICIENT		0.03%/°C (0~ 50°C)
	VIBRATION		10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC	WITHSTAND VOLTAGE		I/P-O/P:1KVDC
	ISOLATION RESISTANCE		I/P-O/P: 100M Ohms / 500VDC / 25°C / 70% RH
	ISOLATION CAPACITANCE		80Pfmax.
OTHERS	MTBF		600khrs min.MIL-HDBK-217F(25°C )
	DIMENSION		22.69.98.4mm or 0.89"0.39"0.33" inch (LWH)
	WEIGHT		3.1g
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Load regulation is measured from 10% to 100% rated load. 4.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.
