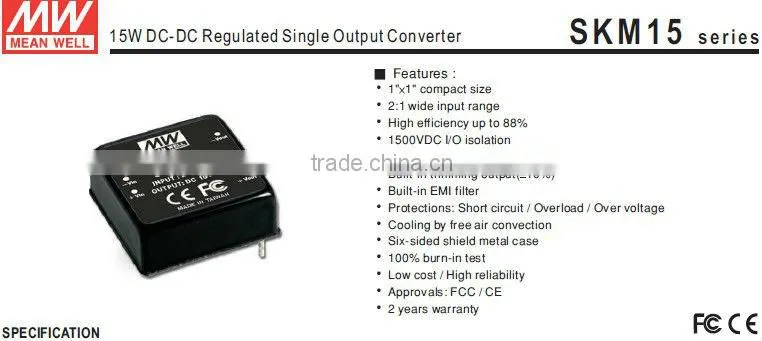

Help CenterMeanwell 15W DC-DC Regulated Single Output Converter ce Switching Power Supply
Related Products
-
Meanwell 15W DC-DC Regulated Single Output Converter Switching Power SupplyUS$ 1 - 10MOQ: 1 Piece -
Meanwell 12W DC-DC Regulated Single Output Converter 12v Switching Power SupplyUS$ 1 - 10MOQ: 1 Piece
-
Mean Well SCW05A-12 5W 12V Converter 5W SMPS 12vUS$ 1 - 10MOQ: 1 Piece
-
Meanwell 3W DC-DC Regulated Single Output Converter 12v dc Switching Power SupplyUS$ 1 - 10MOQ: 10 Pieces
-
Meanwell 3W DC-DC Regulated Single Output Converter 3w Switching Power SupplyUS$ 1 - 10MOQ: 10 Pieces
ORDER NO. |

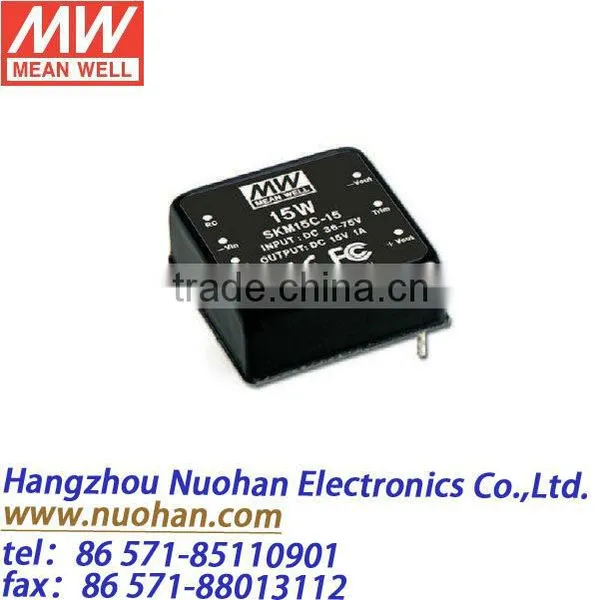

SKM-15C-15 |
||
OUTPUT |
DC OUTPUT VOLTAGE |
15V |
|
CURRENT RANGE |
100 ~ 1000mA |
||
RATED POWER |
15W |
||
RIPPLE & NOISE (max.) Note.2 |
60mVp-p |
||
LINE REGULATION Note.3 |
±0.5% |
||
LOAD REGULATION Note.4 |
±0.5% |
||
VOLTAGE ACCURACY |
±2.0% |
||
SWITCHING FREQUENCY |
400KHz typ. |
||
EXTERNAL CAPACITANCE LOAD (max.) |
1000uF |
||
EXTERNAL TRIM Adj. RANGE(Typ.) |
±10% |
||
INPUT |
VOLTAGE RANGE |
A: 9 ~ 18VDC B: 18 ~ 36VDC C: 36 ~ 75VDC |
|
EFFICIENCY (Typ.) |
87% |
||
DC CURRENT |
Full load |
380mA |
|
No load |
15mA |
||
FILTER |
Pi network |
||
REMOTE CONTROL |
Power ON : R.C ~ -Vin > 2.5VDC or open circuit ; Power OFF : R.C ~ -Vin < 0.5VDC or short |
||
PROTECTION |
Fuse recommended |
||
|
PROTECTION (Note. 5) |
OVER CURRENT |
110 ~ 180% rated output power |
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
SHORT CIRCUIT |
All output equipped with short circuit |
||
Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
OVER VOLTAGE |
115% ~ 150% rated output voltage |
||
Protection type : Clamp by diode, recovers automatically after fault condition is removed | |||
ENVIRONMENT |
WORKING TEMP. |
-40~+80°C (Refer to output load derating curve) |
|
WORKING HUMIDITY |
20 ~ 90%RH non-condensing |
||
STORAGE TEMP., HUMIDITY |
-55~+100°C, 10~95%RH |
||
TEMP. COEFFICIENT |
0.03%/°C (0~ 50°C) |
||
VIBRATION |
10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes |
||
|
SAFETY & EMC |
WITHSTAND VOLTAGE |
I/P-O/P:1.5KVDC |
|
ISOLATION RESISTANCE |
I/P-O/P: 100M Ohms / 500VDC / 25°C/ 70% RH |
||
EMC EMISSION |
Compliance to EN55022 Class A, FCC part 15 Class A |
||
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria Acriteria A |
||
OTHERS |
MTBF |
400khrs min.MIL-HDBK-217F(25°C ) |
|

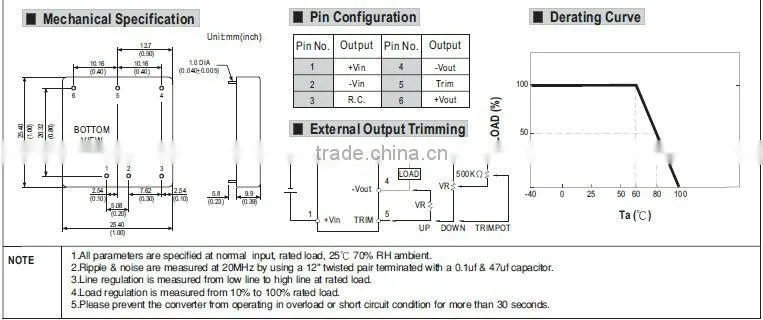

DIMENSION |
25.4*25.4*9.9 mm or 1"*1"*0.39" inch (L*W*H) |
||
WEIGHT |
15g |
||
NOTE |
1. All parameters are specified at normal input, rated load, 25°C 70% RH ambient . 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3.Line regulation is measured from low line to high line at rated load. 4.Load regulation is measured from 20% to 100% rated load. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds. |
||
