Help CenterMeanwell 5W DC-DC Regulated 15v Switching Power Supply/5W DC-DC Converter
Related Products
-
Meanwell 10W DC-DC Regulated Single Output Converter dc Switching Power SupplyUS$ 1 - 10MOQ: 10 Pieces -
Mean Well 1W Converter 5v 1w Switch Power Supply 1w 5vUS$ 1 - 10MOQ: 1 Piece
-
Meanwell 1W DC-DC Unregulated Single Output Converter Unregulated Switching Power SupplyUS$ 1 - 10MOQ: 10 Pieces
-
Meanwell 0.5W DC-DC Regulated Single Output Converter Switching Power Supply Switch Supply PowerUS$ 1 - 10MOQ: 10 Pieces
-
Mean Well 300W Railway DC DC Converter 300w 24v Switching Power Supply 24vUS$ 1 - 30MOQ: 1 Piece

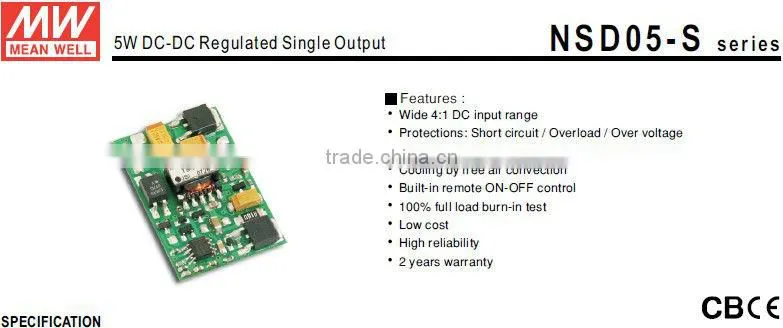

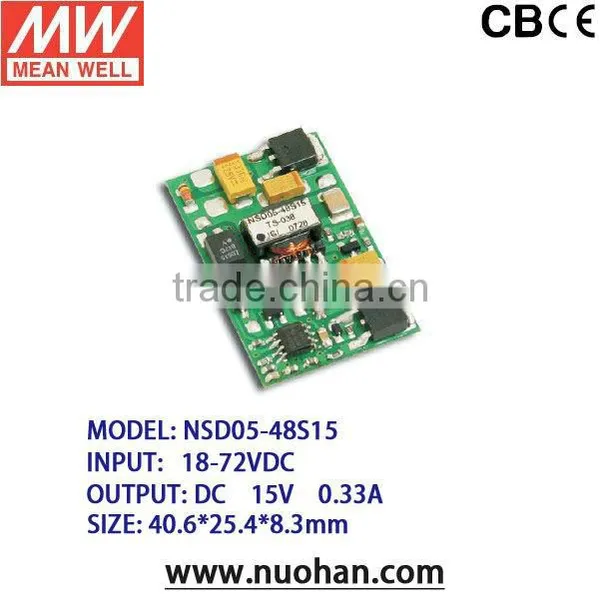

MODEL |
NSD05-48S15 |
|
OUTPUT |
DC VOLTAGE |
15V |
RATED CURRENT |
0.33A |
|
CURRENT RANGE |
0 ~ 0.33A |
|
RATED POWER |
4.95W |
|
CAPACITIVE LOAD (max.) |
120uF |
|
RIPPLE & NOISE (max.) Note.2 |
75mVp-p |
|
VOLTAGE TOLERANCE Note.3 |
±2.0% max. |
|
LINE REGULATION |
±1.0% |
|
LOAD REGULATION |
±1.0% |
|
INPUT |
RATED DC INPUT |
48VDC |
VOLTAGE RANGE |
18 ~ 72VDC |
|
EFFICIENCY (Typ.) |
85% |
|
DC CURRENT |
0.2A/48VDC |
|
SHUTDOWN IDLE CURRENT |
5mA/48VDC |
|
PROTECTION |
OVER LOAD |
Above 105% rated output power |
Protection type : Over power limiting, recovers automatically after fault condition is removed | ||
OVER VOLTAGE(CLAMP) |
16.2 ~ 19.8V |
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
SHORT CIRCUIT |
Recovers automatically after fault condition is removed |
|
FUNCTION |
ON/OFF CONTROL |
Logic "1" or open circuit : ON Logic "0" or short to PIN2 : OFF |
ENVIRONMENT |
WORKING TEMP. |
-25~+70°C |
WORKING HUMIDITY |
0~95% RH max. |
|
STORAGE TEMP., HUMIDITY |
-40~+85°C, 0~95%RH |
|
TEMP. COEFFICIENT |
0.03%/°C (0~ 60°C) |
|
|
SAFETY & EMC (Note 4) |
SAFETY STANDARDS |
IEC60950-1 CB approved by TUV |
ISOLATION VOLTAGE |
I/P-O/P:1KVDC |
|
ISOLATION RESISTANCE |
I/P-O/P:100M Ohms / 500VDC / 25°C / 70% RH |
|
EMC EMISSION |
Compliance to EN55022 (CISPR22) Class B |
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8; EN55024, light industry level, criteria A |
|
OTHERS |
MTBF |
914.4K hrs min. MIL-HDBK-217F (25°C) |
DIMENSION |
40.6*25.4*8.3mm (1.6"*1"*0.327") (L*W*H) |
|
PACKING |
0.007Kg; 700pcs/5.9Kg/0.97CUFT |
|
NOTE |

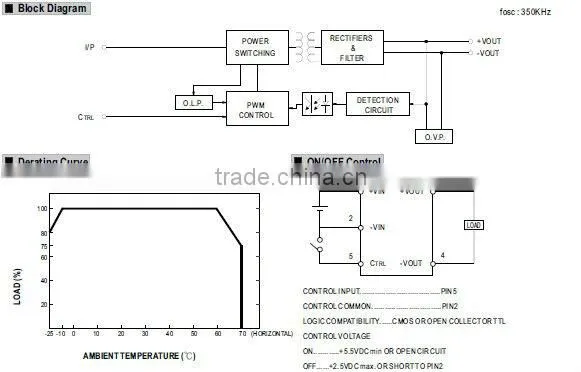

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5.To insure proper operation, a 47uF/100V electrolytic capacitor with Esr <1Ω must be added to the input line. 6.EMC filter suggestion(TBD):
|
|
