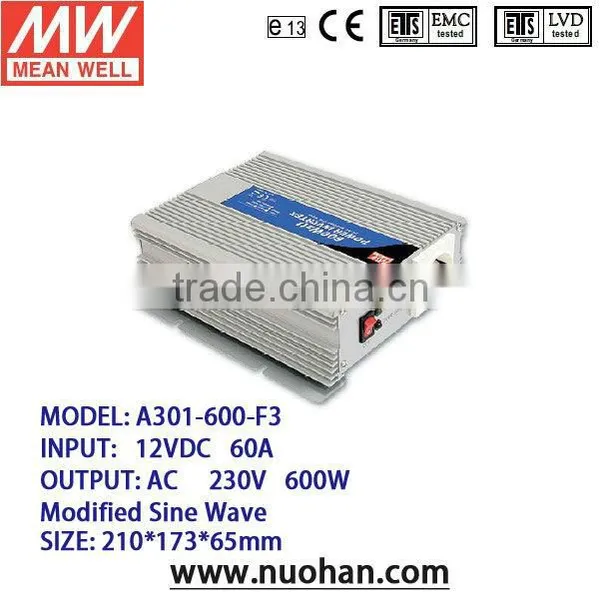

Meanwell 600W Modified Sine Wave DC-AC Power Inverter 12v

Name: Meanwell 600W Modified Sine Wave DC-AC Power Inverter 12v
Brand: Meanwell
SKU: 117409695
Availability: InStock

US$ 1 - 10 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

A301-600-F3

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number A301-600-F3

Output Power Other, 600W

Output Type Single

Input Voltage Other, 12V

Output Voltage 230V

Output Current 2.6A

ORDER NO.		A302-600-F3
OUTPUT	SAFETY MODEL NO.	A-300-600W
	AC VOLTAGE	230V
	RATED POWER	600W
	SURGE POWER	1200W
	WAVE FORM	Modified Sine Wave
	FREQUENCY	50Hz ±1%
	AC REGULATION	±10%
	STANDARD RECEPTACLES	TYPE-3* 1ea
	LED INDICATOR	Green LED for power on; Red LED for power failure status
INPUT	DC CURRENT	30A
	NO LOAD CURRENT DRAW	0.38A
	DC VOLTAGE	24V
	VOLTAGE RANGE	121~ 30VDC
	EFFICIENCY (Typ.)	85%
	DC CONNECTOR	900mm Battery clip*1ea
	FUSE	20A * 3ea
PROTECTION	BAT. LOW ALARM	21± 1V
	BAT. LOW SHUTDOWN	20 ± 1V
	OVER LOAD	>750W shut down o/p voltage, re-power on to recover
	OVER VOLTAGE	30~32V
	OVER TEMPERATURE	60± 5°C / 140± 9F
	OUTPUT SHORT	Shut-off
	BAT. POLARITY	By fuse open
ENVIRONMENT	WORKING TEMP.	0~+30°C at 100% load, 40°C at 50% load
	WORKING HUMIDITY	20%~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-30~+70°C / -22~ +158 F, 10~95%RH
	TEMP. COEFFICIENT	±0.05%/°C (0~50°C)
SAFETY&EMC	ISOLATION RESISTANCE	I/P-O/P: 100M Ohms / 500VDC / 25°C/ 70% RH
	EMI CONDUCTION & RADIATION	Compliance to EN55022 class B, 72/ 245/ CEE, 95/ 54/ CE
	EMC IMMUNITY	Compliance to EN61000-4-2,3
	LVD	Compliance to EN60950
OTHERS	MTBF	100Khrs min. MIL-HDBK-217F (25°C)
	DIMENSION	21017365mm (LWH)
	PACKING	2.1kg ; 8pcs / 20kg / CARTON
	COOLING	by fan, >50% load fan on
	APPLICATIONS	Home appliance, Power tools, Office and Portable equipment and Vehicle ...etc.
