Home > Electrical & Electronics > Inverter > Power Inverter > Meanwell 1500W True Sine Wave DC-AC Power Inverter High Frequency Inverter/48vdc 230vac Inverter

Meanwell 1500W True Sine Wave DC-AC Power Inverter High Frequency Inverter/48vdc 230vac Inverter

Name: Meanwell 1500W True Sine Wave DC-AC Power Inverter High Frequency Inverter/48vdc 230vac Inverter
Brand: Meanwell
SKU: 117409559
Availability: InStock

Meanwell 1500W True Sine Wave DC-AC Power Inverter High Frequency Inverter/48vdc 230vac Inverter thumbnail-1

Meanwell 1500W True Sine Wave DC-AC Power Inverter High Frequency Inverter/48vdc 230vac Inverter photo-1

US$ 500 - 600 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

TS-3000-248

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number TS-3000-248

Output Power Other, 3000W

Output Type Single

Size 466.8*283.5*100mm (L*W*H)

Weight 13Kgs

Input Voltage 48VDC

Output Voltage 230VAC

Type DC/AC Inverters

Output Frequency 50/60Hz selectable

Output Current 13A

MODEL		TS-3000-248
OUTPUT	RATED POWER (Typ.)	3000W
	MAXIMUM OUTPUT POWER(Typ.)	3450W for 180 sec. / 4500W for 10 sec. / surge power 6000W for 30 cycles
	AC VOLTAGE	Factory setting set at 230VAC
	AC VOLTAGE	200 / 220 / 230 / 240VAC selectable by setting button S.W
	FREQUENCY	50 ±0.1Hz 50/60Hz selectable by setting buttonS.W
	WAVEFORM	True sine wave (THD<3%) at rated input voltage
	AC REGULATION (Typ.)	±3%
	SAVING MODE (Typ.)	Default disabled. Load≤5W will be changed to standby mode
	FRONT PANEL INDICATOR	Battery voltage level, output load level, saving mode, fault and operation status
INPUT	BAT. VOLTAGE	48V
	VOLTAGE RANGE (Typ.) Note. 3, 6	42 ~ 60VDC
	DC CURRENT (Typ.) (Typ.)	75A
	NO LOAD DISSIPATION(Typ.)	≤10W at standby saving mode
	OFF MODE CURRENT DRAW(Typ.)	≤1mA
	EFFICIENCY (Typ.) Note.1	92%
	BATTERY TYPES	Open & sealed Lead Acid
BATTERY INPUT PROTECTION	FUSE	20A*6
	BAT. LOW ALARM Note.6	45V
	BAT. LOW SHUTDOWN Note.6	42V
	BAT. POLARITY	By internal fuse open
OUTPUTPROTECTION	OVER TEMPERATURE	75°C ± 5°C
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, re-power on to recover
	OUTPUT SHORT	Protection type : Shut down o/p voltage, re-power on to recover
	OVER LOAD (Typ.)	105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.
	OVER LOAD (Typ.)	Protection type : Shut down o/p voltage, re-power on to recover
	CIRCUIT BREAKER	AC output receptacle:15A
	GFCI PROCTECTION	None
ENVIRONMENT	WORKING TEMP. Note.2	0~+40°C at 100% load 60°C at 50% load
	WORKING HUMIDITY	20%~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-30~+70°C / -22~ +158 F, 10~95%RH
	VIBRATION	10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY&EMC	SAFETY STANDARDS	None
	LVD	EN60950-1
	WITHSTAND VOLTAGE	Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
	ISOLATION RESISTANCE	Bat I/P - AC O/P, Bat I/P - FG,AC O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
	EMC EMISSION	Compliance to EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11
OTHERS	CONTROL WIRING	RJ11 -RS232 (Option)

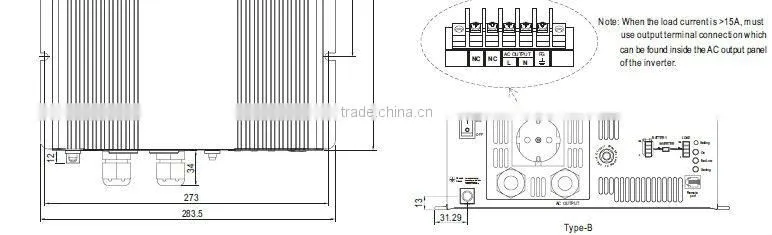

	DIMENSION	466.8283.5100mm (LWH)
	PACKING	12.9Kg; 1pcs/14Kg/1.98CUFT

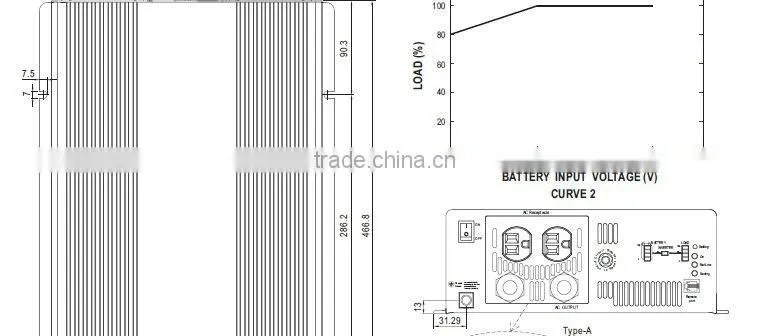

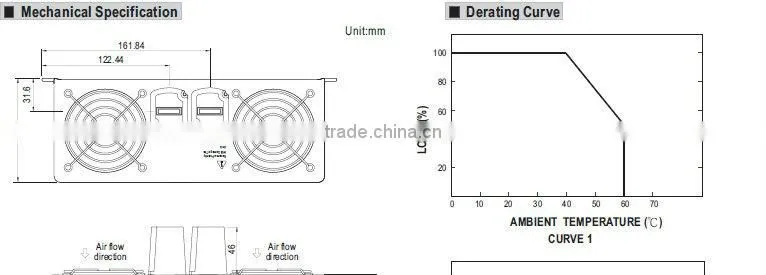

NOTE	1. Efficiency is tested by 2100W, linear load at 13V, 26V, 52V input voltage. 2. Output derating capacity referenced by curve 1. 3. Input derating capacity referenced by curve 2. 4. DC current is tested by 3000W, linear load at 12V, 24V, 48V input voltage. 5. All parameters not specified above are measured at rated load, 25°C of ambient temperature. 6. The tolerance of each voltage value by models is:112/212 →±0.5V;124/224 →±1V;148/248 →±2V
