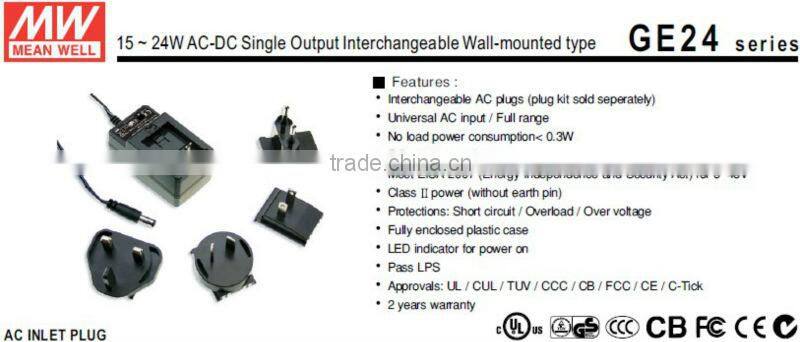

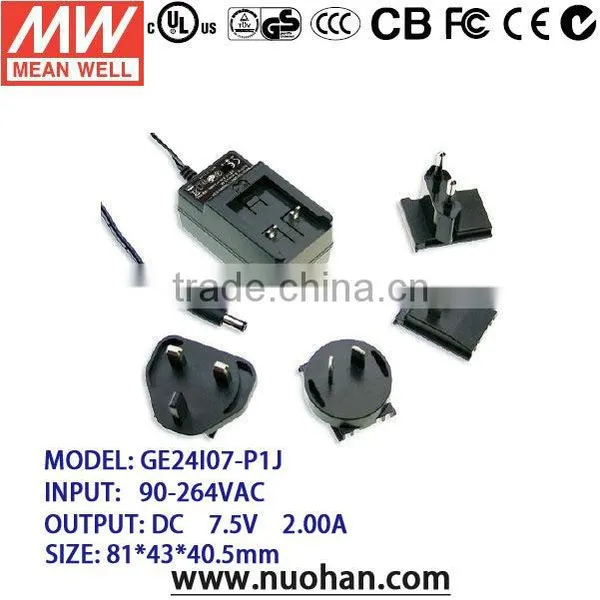

Meanwell 7.5v Switching Power Supply/15 ~ 24W AC-DC Single Output Interchangeable Wall-mounted Type

Name: Meanwell 7.5v Switching Power Supply/15 ~ 24W AC-DC Single Output Interchangeable Wall-mounted Type
Brand: Mean Well
SKU: 117409041
Availability: InStock

Meanwell 7.5v Switching Power Supply/15 ~ 24W AC-DC Single Output Interchangeable Wall-mounted Type thumbnail-1

Meanwell 7.5v Switching Power Supply/15 ~ 24W AC-DC Single Output Interchangeable Wall-mounted Type photo-1

US$ 1 - 10 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Mean Well

Model Number:

GE24I07-P1J

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Mean Well

Model Number GE24I07-P1J

Output Type DC

Connection Plug In

ORDER NO.		GE24I07-P1J
OUTPUT	SAFETY MODEL NO.	FRA024-S07-I
	DC VOLTAGE Note.2	7.5V
	RATED CURRENT	2.0A
	CURRENT RANGE	0 ~ 2.0A
	RATED POWER	15W
	RIPPLE & NOISE (max.) Note.3	75mVp-p
	VOLTAGE TOLERANCE Note.4	±5.0%
	LINE REGULATION Note.5	±1.0%
	LOAD REGULATION Note.6	±5.0%
	SETUP, RISE, HOLD UP TIME	4000ms, 100ms, 30ms / 230VAC 4000ms, 100ms, 10ms / 115VAC at full load
INPUT	VOLTAGE RANGE	90 ~ 264VAC 135 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	79.5%
	AC CURRENT	0.7A / 100VAC 0.4A / 230VAC
	INRUSH CURRENT (max.)	COLD START 40A / 100VAC 80A / 230VAC
	LEAKAGE CURRENT(max.)	0.25mA / 240VAC
PROTECTION	OVERLOAD	110 ~ 200 %rated output power
	OVERLOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	115% ~ 135%
	OVER VOLTAGE	Protection type : Clamp by zener diode

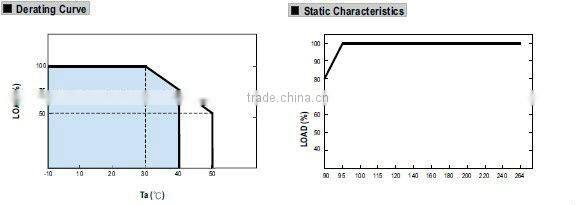

ENVIRONMENT	WORKING TEMP.	-10 ~ +50°C(Refer to "Derating Curve")
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20~+85°C, 10~95%RH
	TEMP. COEFFICIENT	±0.03%/°C( 0~ 50°C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC	SAFETY STANDARDS	UL60950-1, CSA C22.2, TUV EN60950 -1, CCC GB4943 approved
	WITHSTAND VOLTAGE	I/P-O/P:4242VDC
	ISOLATION RESISTANCE	I/P-O/P:100M Ohms /500VDC/25°C/70% RH
	EMC EMISSION	Compliance to EN55022, EN61000-3-2,3, FCC part15, GB9254 class B
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A
OTHERS	LIFE	2 years : 100% load 30°C, 8 hours / day
	MTBF	100Khrs min. MIL-HDBK-217F(25°C)

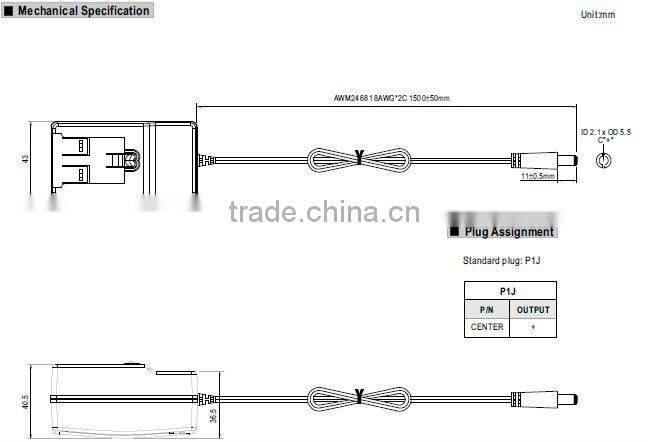

	DIMENSION	814340.5mm (LWH)
	PACKING	134g ; 60pcs / 12.32kg / CARTON
CONNECTOR	PLUG	Standard type P1J: 2.1 * 5.5 * 11mm turning fork type, center positive for stock ; Other type available by customer requested
CONNECTOR	CABLE	See page2

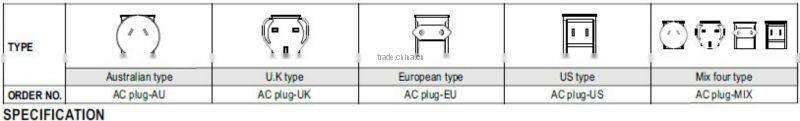

NOTE	1.All parameters are specified at 115VAC input, rated load, 25°C 70% RH ambient. 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load. 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor. 4.Tolerance: includes set up tolerance, line regulation, load regulation. 5.Line regulation is measured from low line to high line at rated load. 6.Load regulation is measured from 20% to 100% rated load 7.Main body unit and AC inlet plug should be ordered seperately ; it needs to be used along with any of the AC inlet plug.
