Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Meanwell Power Supply Switching/108W/216W Desktop Power Supply or Charger/communication Switching Power Supply

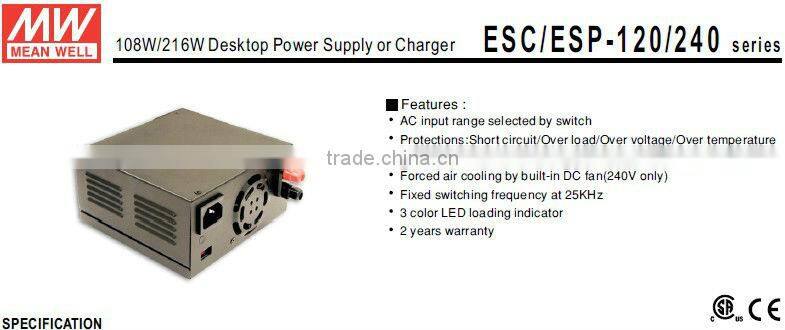

Meanwell Power Supply Switching/108W/216W Desktop Power Supply or Charger/communication Switching Power Supply

Name: Meanwell Power Supply Switching/108W/216W Desktop Power Supply or Charger/communication Switching Power Supply
Brand: Meanwell
SKU: 117408895
Availability: InStock

Meanwell Power Supply Switching/108W/216W Desktop Power Supply or Charger/communication Switching Power Supply thumbnail-1

Meanwell Power Supply Switching/108W/216W Desktop Power Supply or Charger/communication Switching Power Supply photo-1

US$ 1 - 10 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

ESP-240-13.5

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number ESP-240-13.5

Output Power Other, 216W

Output Type Single

Input Voltage Other, 88 ~ 132VAC/176 ~264VAC selected by switch

Output Voltage 13.5V

Output Frequency 47~63Hz

Output Current 16A

MODEL		ESP-240-13.5
OUTPUT	DC VOLTAGE	13.5V
	RATED CURRENT	16A
	CURRENT RANGE	0 ~ 16A
	RATED POWER	216W
	RIPPLE & NOISE (max.) Note.2	120mVp-p
	VOLTAGE ADJ. RANGE	12 ~ 15V
	VOLTAGE TOLERANCE Note.3	±2.0%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±2.0%
	SETUP, RISE TIME	200ms, 100ms at full load
	HOLD TIME (Typ.)	30ms at full load
INPUT	VOLTAGE RANGE	88 ~ 132VAC/176 ~264VAC selected by switch 249 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	81%
	AC CURRENT (Typ.)	4.5A/115VAC 2.5A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 40A
	LEAKAGE CURRENT	<3.5mA / 240VAC
PROTECTION	OVER LOAD	105 ~ 135% rated output power
	OVER LOAD	Protection type : Fold back current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	15.5 ~ 18.2V
	OVER VOLTAGE	Protection type : Constant voltage limiting, recovers automatically after fault condition is removed
	OVER TEMPERATURE	RTH5 ≥85°C Detect on heatsink of Q1,Q2 power transistor
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
	BATTERY	ESC series with bat. polarity, bat. Under voltage, bat. Over voltage protection
FUNCTION	FAN CONTROL	RTH5≥60°C FAN ON, ≤50 °C FAN OFF

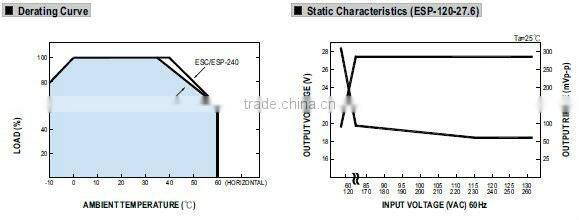

ENVIRONMENT	WORKING TEMP.	-10 ~ +60°C (Refer to output load derating curve)
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20~+85°C, 10~95%RH
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY&EMC (Note 4)	SAFETY STANDARDS	CSA60950-1(UL3101-1,IEC1010-1,EN61010-1) Approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
	EMI CONDUCTION & RADIATION	Compliance to EN55022 (CISPR22) Class B
	HARMONIC CURRENT	Compliance to EN61000-3-2,-3
	EMS IMMUNITY	Compliance to EN61000-4-2,3,4; ENV50204, Light industry level, criteria A
OTHERS	MTBF	215.8K hrs min.(ESC-120) 200.6K hrs min.(ESC-240) 250.9K Hrs min.(ESP-120) 226.6K Hrs min.(ESP-240) MIL-HDBK-217F (25°C)

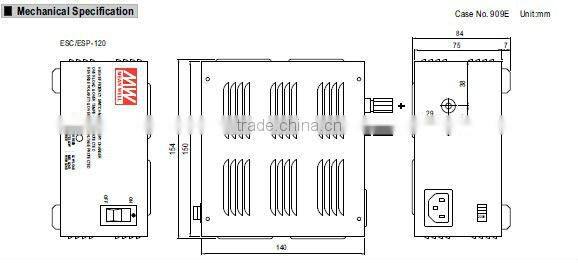

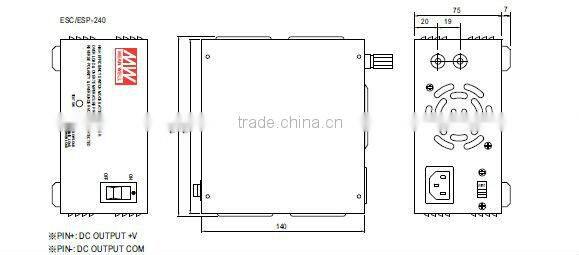

	DIMENSION	15014086mm (LWH)
	PACKING	1.38Kg; 8pcs/12Kg/1.1CUFT(ESC-120) 1.5Kg; 8pcs/13Kg/1.1CUFT(ESC-240)
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
