Home > Electrical & Electronics > Power Supply & Distribution > Power Adapter > Meanwell 9v 1.66a Adaptor/12~15W AC-DC Single Output Wall-mounted Type

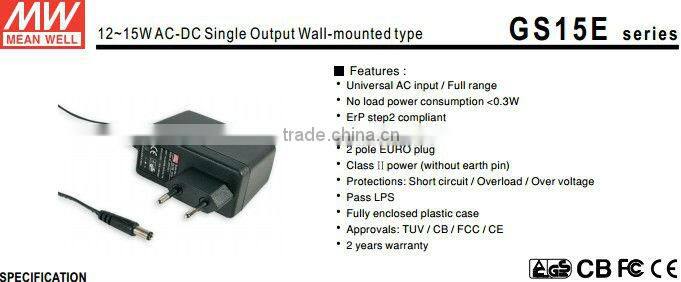

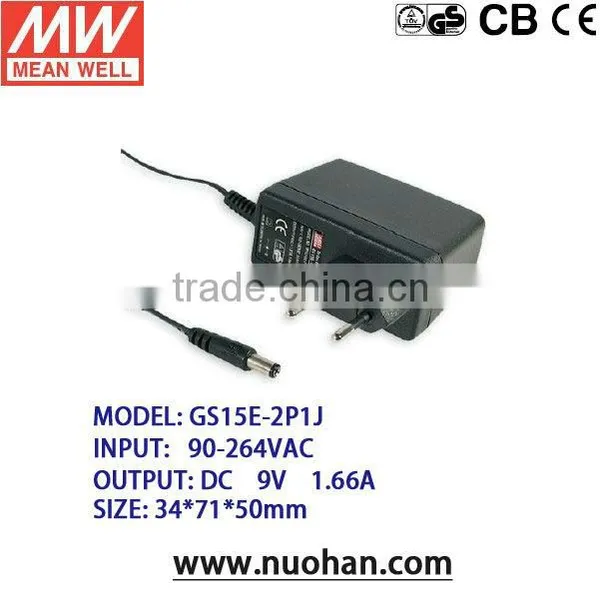

Meanwell 9v 1.66a Adaptor/12~15W AC-DC Single Output Wall-mounted Type

Name: Meanwell 9v 1.66a Adaptor/12~15W AC-DC Single Output Wall-mounted Type
Brand: Mean Well
SKU: 117408923
Availability: InStock

Meanwell 9v 1.66a Adaptor/12~15W AC-DC Single Output Wall-mounted Type thumbnail-1

Meanwell 9v 1.66a Adaptor/12~15W AC-DC Single Output Wall-mounted Type photo-1

US$ 1 - 10 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Mean Well

Model Number:

GS15E-2P1J

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Mean Well

Model Number GS15E-2P1J

Output Type DC

Connection Desktop

ORDER NO.		GS15E-2P1J
OUTPUT	SAFETY MODEL NO.	GPSU15E-2
	DC VOLTAGE	9V
	RATED CURRENT	1.66A
	RATED POWER	15W
	CURRENT RANGE	0 ~ 1.66A
	RIPPLE & NOISE (max.)	80mVp-p
	VOLTAGE ADJ. RANGE	8~ 11V
	VOLTAGE ADJ. RANGE	Fixed
	VOLTAGE TOLERANCE	±5.0%,
	LINE REGULATION	±0.5%
	LOAD REGULATION	±5.0%
	SETUP, RISE, HOLD UP TIME	3000ms, 50ms, 16ms at full load
INPUT	VOLTAGE RANGE	90 ~ 264VAC 127~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	80%
	AC CURRENT (Typ.)	0.5A / 100VAC
	INRUSH CURRENT (Typ.)	50A / 230VAC
	LEAKAGE CURRENT	0.25mA / 240VAC
PROTECTION	OVERLOAD	105 ~ 250% rated output power
	OVERLOAD	Protection type Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	>120% rated output voltage
	OVER VOLTAGE	Protection type : Clamp by zener diode

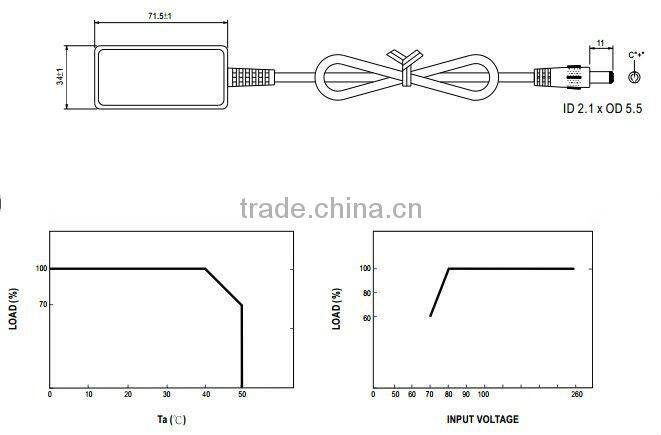

ENVIRONMENT	WORKING TEMP.	0~+50°C (Refer to derating curve)
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGETEMP.,HUMIDITY	-20~+85°C, 10~95%RH
	TEMP. COEFFICIENT	±0.03%/°C (0~50°C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY	SAFETY STANDARDS	EN60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25°C/ 70% RH
	EMC EMISSION	Compliance to EN55022, EN61000-3-2,3, FCC part 15 Class B
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A
OTHERS	MTBF	500Khrs min. MIL-HDBK-217F (25°C)
	DIMENSION	347150mm (LWH)
	PACKING	180g ; 60pcs / 12Kg / CARTON
CONNECTOR	PLUG	Standard type P1J: 2.1 * 5.5 * 11mm, turning fork type center positive ; for stock other type available by customer requested
CONNECTOR	CABLE	Standard type 18Awg UL11856ft for 3.3v output only for stock other type available by customer requested
NOTE	1. All parameters are specially at 230VAC input, rated load and 25°C70%RH ambient. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5.Line regulation is measured from low line to high line at rated load 6..Load regulation is measured from 0% to 100% rated load 7.DC voltage:The output voltage set at point measure by plug terminal &50%load. 8.Efficiency is measured at 115VAC.
