Home > Electrical & Electronics > Power Supply & Distribution > Power Adapter > Meanwell 220W AC-DC Single Output Desktop Switching Power Supply/ac Switching Power Supply

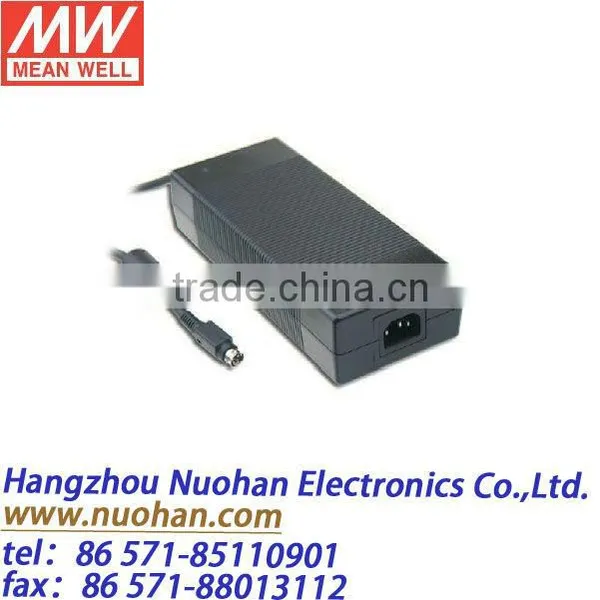

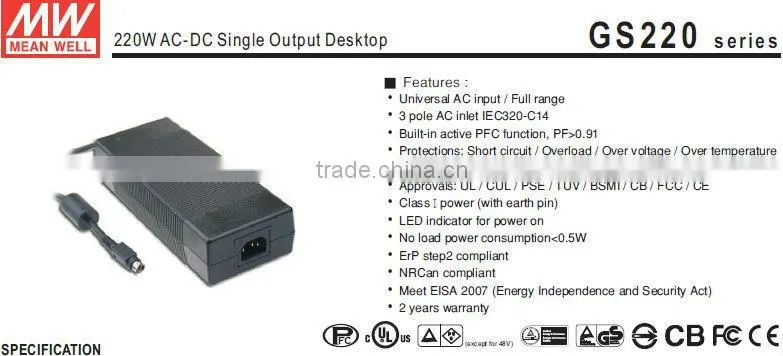

Meanwell 220W AC-DC Single Output Desktop Switching Power Supply/ac Switching Power Supply

Name: Meanwell 220W AC-DC Single Output Desktop Switching Power Supply/ac Switching Power Supply
Brand: Meanwell
SKU: 117408683
Availability: InStock

Meanwell 220W AC-DC Single Output Desktop Switching Power Supply/ac Switching Power Supply thumbnail-1

Meanwell 220W AC-DC Single Output Desktop Switching Power Supply/ac Switching Power Supply photo-1

US$ 1 - 10 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

GS220A12-R7B

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number GS220A12-R7B

Output Type DC

Connection Desktop

ORDER NO.		GS220A12-R7B
OUTPUT	SAFETY MODEL NO.	GS220A12
	DC VOLTAGE Note.2	12V
	RATED CURRENT	15A
	CURRENT RANGE	0 ~ 15A
	RATED POWER(max.)	180W
	RIPPLE & NOISE (max.) Note.3	80mVp-p
	VOLTAGE TOLERANCE Note.4	±5.0%
	LINE REGULATION Note.5	±1.0%
	LOAD REGULATION	±5.0%
	SETUP, RISE TIME Note.7	2000ms, 20ms / 230VAC 2000ms, 20ms / 115VAC at full load
	HOLD UP TIME (Typ.)	20ms / 230VAC 20ms / 115VAC at full load
INPUT	VOLTAGE RANGE Note.8	90 ~ 264VAC 120 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	PF>0.91 / 230VAC PF>0.98 / 115VAC at full load
	EFFICIENCY (Typ.)	90%
	AC CURRENT(Typ.)	4A / 115VAC 2A / 230VAC
	INRUSH CURRENT (max.)	120A / 230VAC
	LEAKAGE CURRENT(max.)	1.5mA / 240VAC
PROTECTION	OVERLOAD	105 ~ 135%rated output power
	OVERLOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	105 ~ 135%rated output voltage
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	95°C ±5°C (TSW1) detect on heatsink of power transistor
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT	WORKING TEMP.	-30 ~ +60°C(Refer to "Derating Curve")
	WORKING HUMIDITY	20%~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+85°C, 10~95%RH
	TEMP. COEFFICIENT	±0.03%/°C (0~50°C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC (Note. 6)	SAFETY STANDARDS	UL60950-1, TUV EN60950-1, BSMI CNS14336, J60950-1(except for 48V) approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC
	ISOLATION RESISTANCE	I/P-O/P:100M Ohms /500VDC/25°C/70% RH
	EMC EMISSION	Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 class B / CISPR22 class B, CNS13438 class B
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A
OTHERS	MTBF	191.3K hrs min. MIL-HDBK-217F(25°C)
	DIMENSION	2108546mm (LWH)
	PACKING	1.1Kg; 12pcs/14.2Kg/0.73CUFT

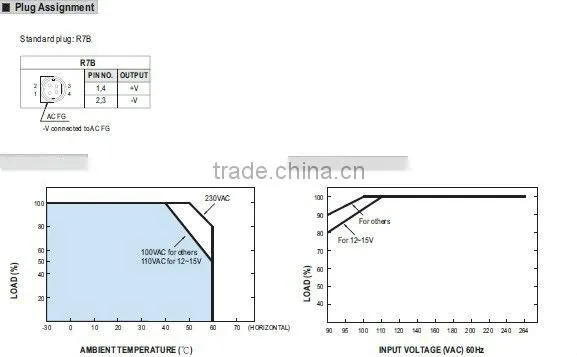

CONNECTOR	PLUG	See page 2 ; Other type available by customer requested
CONNECTOR	CABLE	See page 2 ; Other type available by customer requested
NOTE	1.All parameters are specified at 230VAC input, rated load, 25°C 70% RH ambient. 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load. 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor. 4Tolerance: includes set up tolerance, line regulation, load regulation. 5.Line regulation is measured from low line to high line at rated load. 6.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. 7 Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 8. Derating may be needed under low input voltages. Please check the derating curve for more details.
