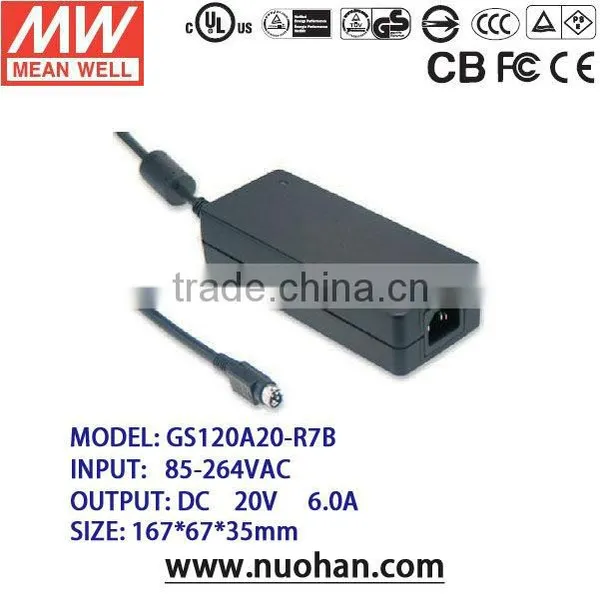

Meanwell 120w 20v 6a Switching Power Supply/120W 20V AC-DC Single Output Desktop / 20V 6a Adaptor

Name: Meanwell 120w 20v 6a Switching Power Supply/120W 20V AC-DC Single Output Desktop / 20V 6a Adaptor
Brand: Meanwell
SKU: 117408697
Availability: InStock

Meanwell 120w 20v 6a Switching Power Supply/120W 20V AC-DC Single Output Desktop / 20V 6a Adaptor thumbnail-1

Meanwell 120w 20v 6a Switching Power Supply/120W 20V AC-DC Single Output Desktop / 20V 6a Adaptor photo-1

US$ 1 - 100 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

GS120A20-R7B

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number GS120A20-R7B

Output Power Other, 120W

Output Type Single

Input Voltage Other, 85 ~ 264VAC 120 ~ 370VDC

Output Voltage 20V

Output Frequency 47~63Hz

Output Current 6A

ORDER NO.			GS120A20-R7B
OUTPUT	SAFETY MODEL NO.		GS120A20
	DC VOLTAGE		20V
	RATED CURRENT		6A
	CURRENT RANGE		0 ~ 6A
	RATED POWER		120W
	RIPPLE & NOISE (max.) Note.2		150mVp-p
	VOLTAGE TOLERANCE Note.3		±5.0%
	LINE REGULATION Note.4		±1.0%
	LOAD REGULATION		±4.0%
	SETUP, RISE TIME Note.6		2000ms, 30ms / 230VAC 2500ms, 30ms / 115VAC at full load
	HOLD UP TIME (Typ.)		20ms / 230VAC 20ms / 115VAC at full load
INPUT	VOLTAGE RANGE Note.7		85 ~ 264VAC 120 ~ 370VDC
	FREQUENCY RANGE		47 ~ 63Hz
	POWER FACTOR (Typ.)		PF>0.97 / 230VAC PF>0.99 / 115VAC at full load
	EFFICIENCY (Typ.)	R7B	89%
		P1M	88.5%
	AC CURRENT		1.4A / 115VAC 0.7A / 230VAC
	INRUSH CURRENT (max.)		70A / 230VAC
	LEAKAGE CURRENT(max.)		0.75mA / 240VAC
PROTECTION	OVERLOAD		105 ~ 160%rated output power
			Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE		105 ~ 135%rated output voltage
			Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE		RTH2 > 100°C ±10°C
			Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT	WORKING TEMP.		-30 ~ +70°C(Refer to "Derating Curve")
	WORKING HUMIDITY		20%~90% RH non-condensing
	STORAGE TEMP., HUMIDITY		-40~+85°C, 10~95%RH
	TEMP. COEFFICIENT		±0.03%/°C (0~50°C)
	VIBRATION		10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC (Note. 5)	SAFETY STANDARDS		UL60950-1, TUV EN60950-1, BSMI CNS14336, J60950-1(except for 48V) approved
	WITHSTAND VOLTAGE		I/P-O/P:3KVAC
	ISOLATION RESISTANCE		I/P-O/P:100M Ohms /500VDC/25°C/70% RH
	EMC EMISSION		Compliance to EN55022(CISPR22) ,EN61204-3 class B, CNS13438 class B, FCC PART 15, EN61000-3-2,3
	EMC IMMUNITY		Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A
OTHERS	MTBF		400.7K hrs min. MIL-HDBK-217F(25°C)
	DIMENSION		1676735mm (LWH)
	PACKING		0.62Kg; 20pcs/13.4Kg/0.9CUFT
CONNECTOR	PLUG		See page 2 ; Other type available by customer requested
	CABLE		See page 2 ; Other type available by customer requested
NOTE	1.All parameters are specified at 230VAC input, rated load, 25°C 70% RH ambient. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor. 3.Tolerance: includes set up tolerance, line regulation, load regulation. 4.Line regulation is measured from low line to high line at rated load. 5.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 7. Derating may be needed under low input voltages. Please check the derating curve for moredetails.
