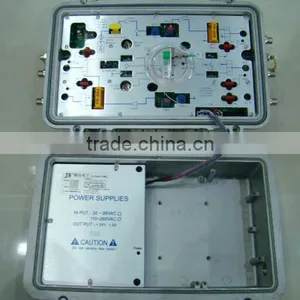

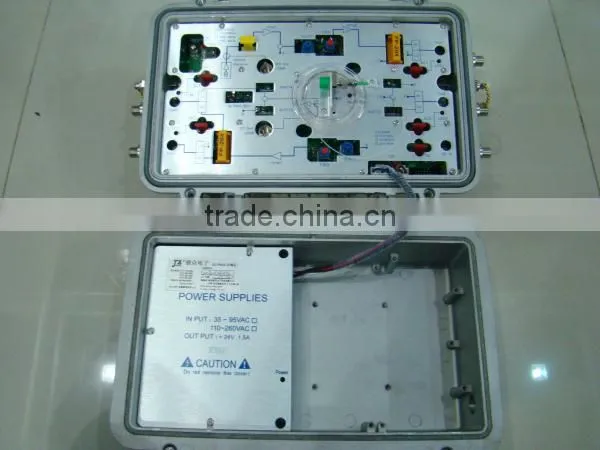

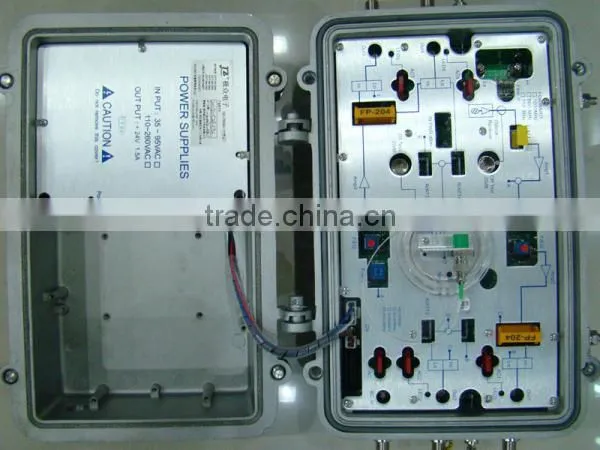

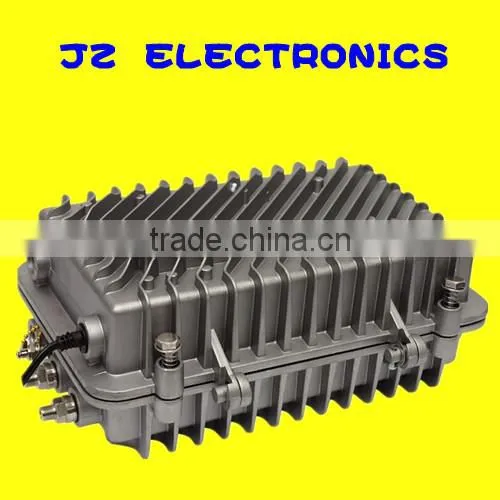

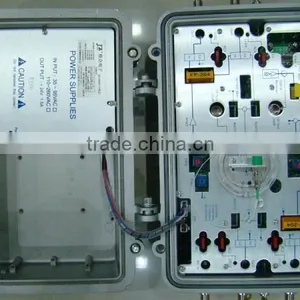

CATV Outdoor Two-way Optical Node For HFC Network

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shaanxi, China

Brand Name:

Model Number:

JZOR860JRIII-4AV

Shaanxi Jizhong Electronics Scien-Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Shenzhen/Ningbo/Tianin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shaanxi, China

Brand Name JZ

Model Number JZOR860JRIII-4AV

CATV Outdoor Two-way Optical Receiver For HFC Network

Usage:

It can meet the need of two-way alternating multi-functional business of HFC broadband network in the optical fiber transmission system.

It also can satisfy the value adding business, such as, CATV business, telephone, data ect.

Product advantage

1. 5-1000MHz optimized circuit design, you can customize your desired frequency bandwidth based on the system.

2. Special optical receiving module, high-index optical-electrical transform.

3. With LED optical power display, it can precisely display input optical power.

4. AGC is available, AGC controling range is -7 ~ +2dBm

6. Each port are independently segmented by duplex filter, up singal for each channel is independently adjustable.

7. Network management function is available, it also has II-type net management responder.

Main technical parameter

Item	Unit	Technical specification		Remarks
Forward working bandwidth	MHz	47~862/750		alternative
Input optical power	dBm	-7~+2
Optical working wavelength	nm	1200~1600		double windows
Optical reflection consumption	dB	>45
Equivalent input noise current	PA Hz	≤8
Optical connector type		FC/APC or SC/APC
RF Flatness in Band	dB	±0.75
Output reflection consumption	dB	≥16 (47~550MHz) ≥14(550~860MHz)
Link C/N	dB	>51		79 way PAL-D simulated TV channel, test when the input optical power is -1dBm
C/CSO	dB	>60
C/CTB	dB	>65
Output level	dBuV	>104		test when the input optical power is -1dBm
Reverse working bandwidth	MHz	5~30, 5~42 or 5~65		Custom-made
Reverse RF input level	dBuV	70~85		Gross power
Reverse output optical power	mW	0.5~4		Custom-made
Dynamic range of NPR	dB	≥15 (DFB laser)(NPR≥30db)	≥10 (FP laser)(NPR≥30db)
Power input voltage	V	A: 30~75 B: 110~260		AC
