Specifications
1. We are manufacturer2. With Agc
3. Competitive price with high quality
4. Wecome sample for close inspection

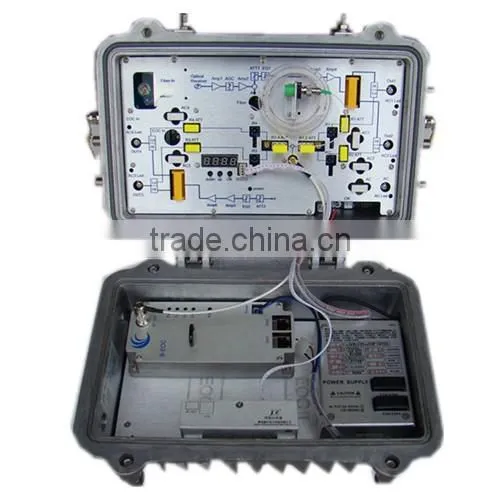

Hot Sale Catv Optical Node
Functional characteristics:
1.5-1000MHz optimized circuit design, you could custom your desired frequency bandwidth based on the system.
2. Adopting special optical receiver modular guarantees high working reliability.
3. With LED optical power, it can precisely display input optical power.
4. AGC optical function is available.
5. AGC controling range is -7 ~ +2dBm
6. Each port are independently segmented by duplex filter, up singal for each channel is independently adjustable.
7. Network management function is available, it also has II-type net management responder.
Technical parameters:
Item |
Unit |
Specification |
Note |
down working bandwidth |
MHz |
47/87 ~ 862/1000 |
optional |
Input optical power |
dBm |
-7~+2 |
|
Optical wavelength |
nm |
1200~1600 |
|
RF Flatness in Band |
dB |
±0.75 |
|
Output reflection loss |
dB |
≥16 |
|
Link C/N |
dB |
≥ 52 |
|
Link C/CSO |
dB |
≥ 60 |
|
Link C/CTB |
dB |
≥ 65 |
|
Classic output level |
dBμV |
106 |
|
Reverse RF input level |
MHz |
5~65 or 5~42 |
customized |
Noise frenquency ratio |
mW |
0.5 ~ 4 |
customized
|
Power loss |
W
|
≤ 45 |
|
| Dimension | mm |
330 x 220 x 130 |
|
3. Picturer:
