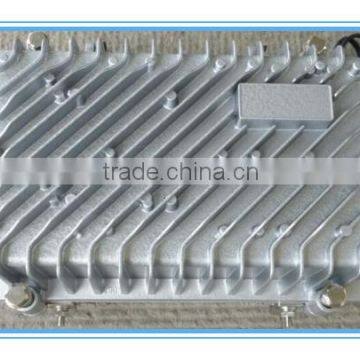

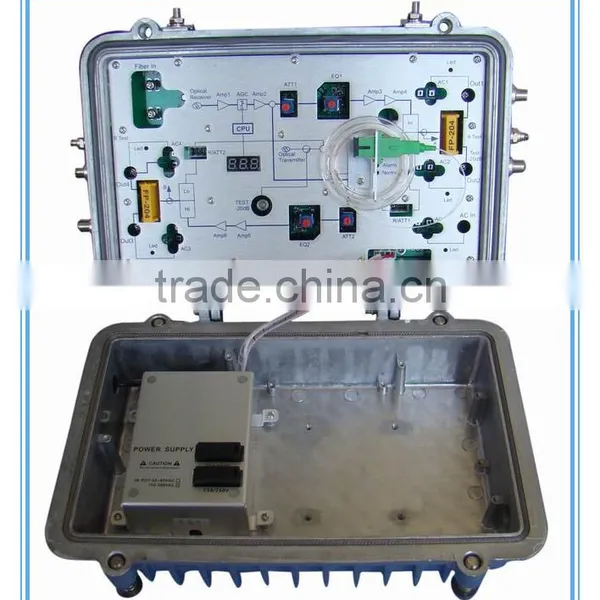

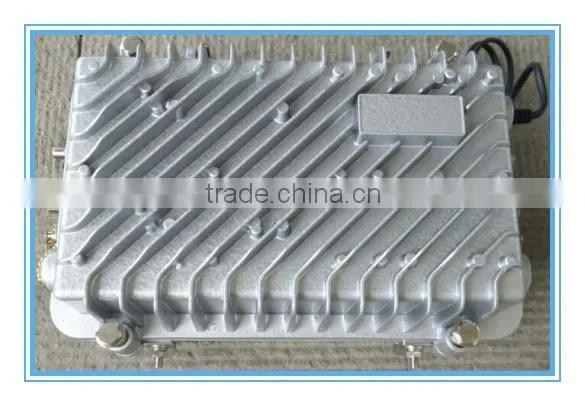

Help CenterHFC Optical Node With Return Path Transmitter
Related Products
-
Bi-directional CATV Optical Node With SNMPUS$ 31 - 46MOQ: 100 Sets -
1550nm Bi-directional CATV Optical Node ReceiverUS$ 31 - 46MOQ: 100 Sets
-
FTTH CATV Receiver With Built-in WDMNegotiableMOQ: 1 Set
-
High Quality RF To Optical Converter For HFC NetworkUS$ 31 - 46MOQ: 100 Sets
-
CATV RF To Fiber Optical Receiver 860/1000MHzUS$ 31 - 46MOQ: 100 Sets
Application:
JZOR1000RII-4BV series of standard optical receiver applies for HFC broadband network bi-directional interactive multi-function business in the fiber optic transmission system, meeting the transmission requirements of value-added business like catv network business, telephone, data and so on.
Product Advantages:
OEM offers competitive price, makes sure excellect quality and satisfying service.
1. LED display for input optical power.
2. 5~1000MHz optimal design of the circuit.
3. High-responsivity PIN photoelectric conversion and high working realibility.
4.Advanced optical AGC control, and high output level more than 108dbuv.
5.Advanced power supply conversion, the power consumption is 1.5W, excellent lineality output.
7. Multi-service protection circuit is designed, which makes product much safer and more reliable.
8. Return path is optional.
Product specs:
Item |
Unit |
Index |
Remark |
Downlink receiving parameters | |||
Forward working bandwidth |
MHz |
45~1000/860 |
|
Rated input optical power |
dBm |
-8~+2 |
|
AGC range |
dBm |
-10~-1 |
customizable |
Optical working wavelength |
nm |
1100~1600 |
Dual windows |
Reflection loss |
dB |
>45 |
|
Equivalent input noise current |
PA/ |
≤8 |
|
Optical connector |
|
SC/APCor FC/APC |
Optional |
Flatness in band |
dB |
±0.75 |
|
Output reflection loss |
dB |
≥14 |
|
Link C/N |
dB |
>50 |
OMI=3.5%,59 way PAL-D analog tv channel, test when input optical power is -9dBm |
Link C/CSO |
dB |
>60 |
|
Link C/CTB |
dB |
>65 |
|
Classic output level |
dBμV |
108 |
|
RF output port |
|
F type standard interface |
|
Factory Advantages:
We are manufacturer, established in 1999 with intelligent R&D personel and advanced detecting devices. Manufacturing and trading all over the world, we have the professional technical team to support our customer.
Our service:
1.Your inquiry related to our products or prices will be replied within 24hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM & ODM, any your customized requirements we can try to help you realize.
4.Protection of your sales area ,ideas of design and all your private information.
5. 2 years warranty.
