High Pressure Portable Injection Pump
Product Introduction

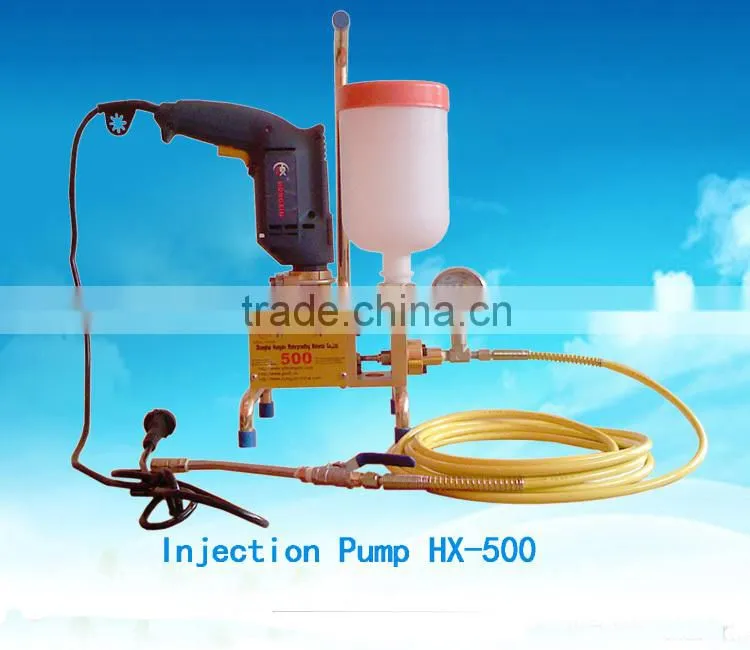

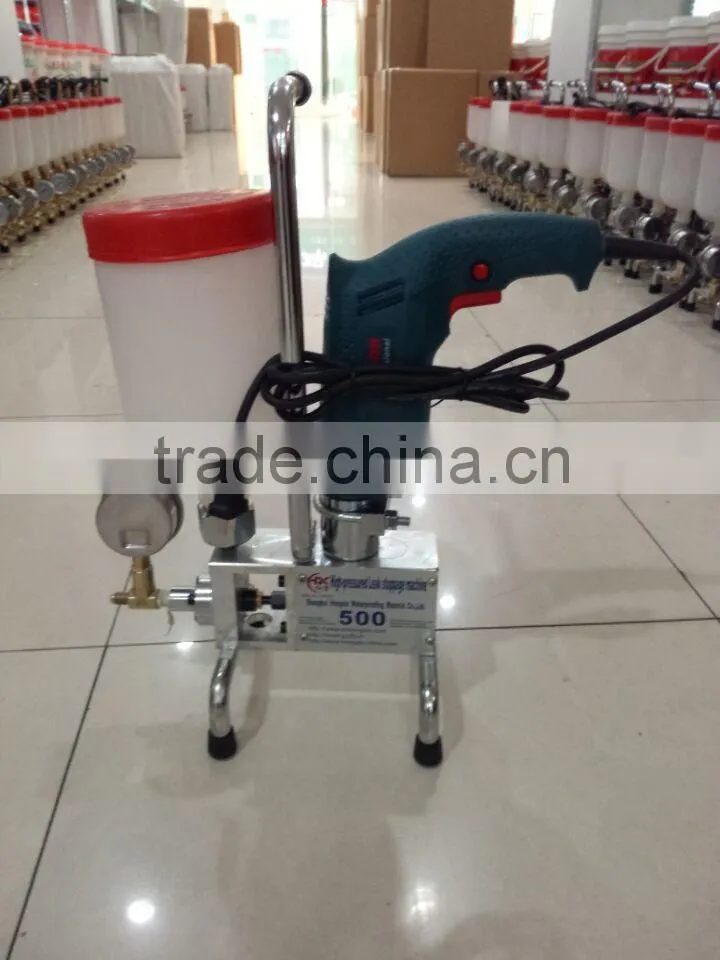

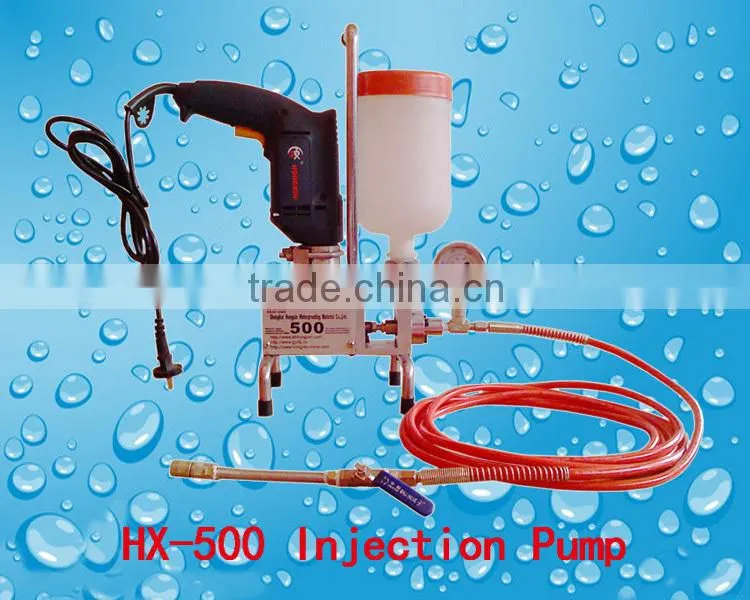

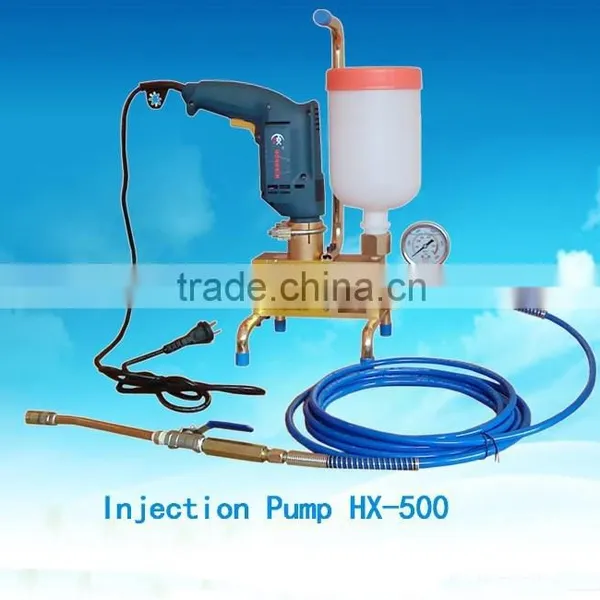

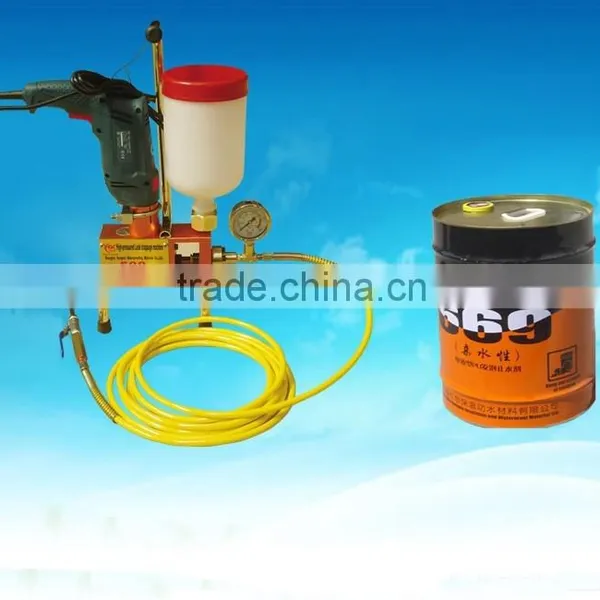

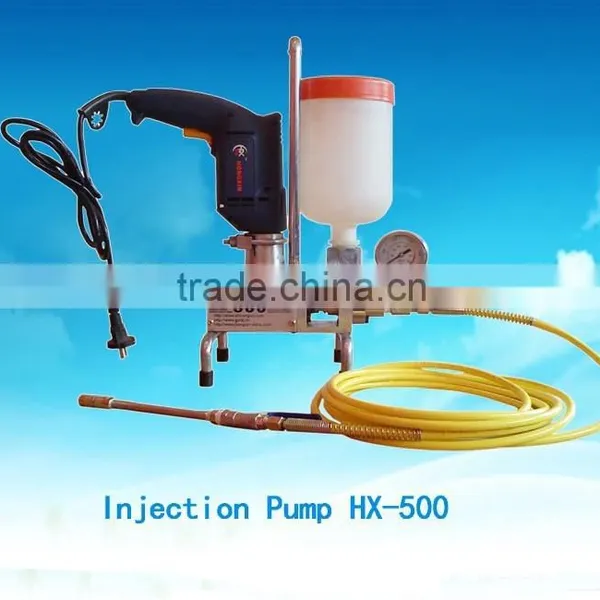

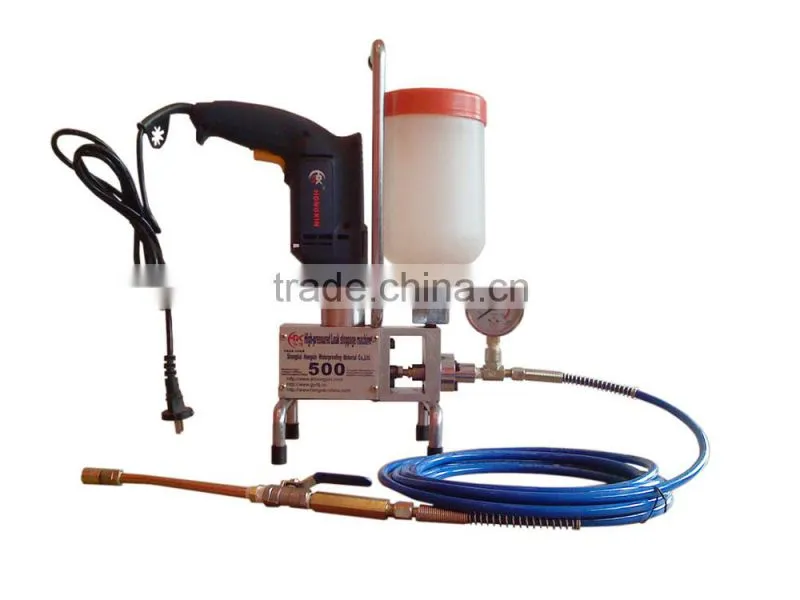

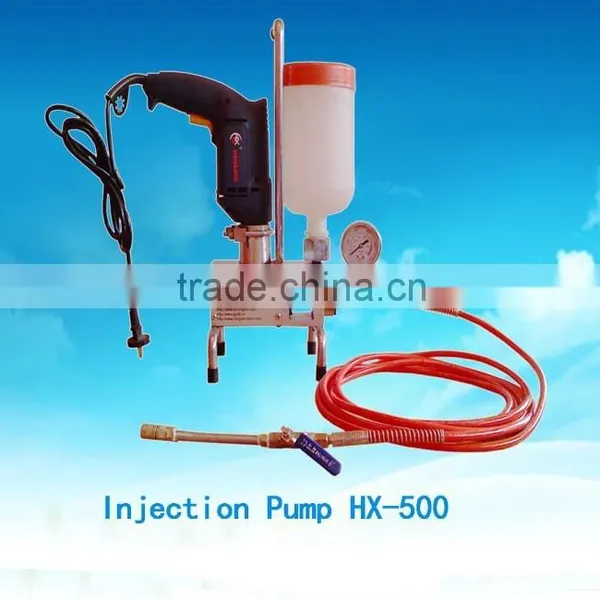

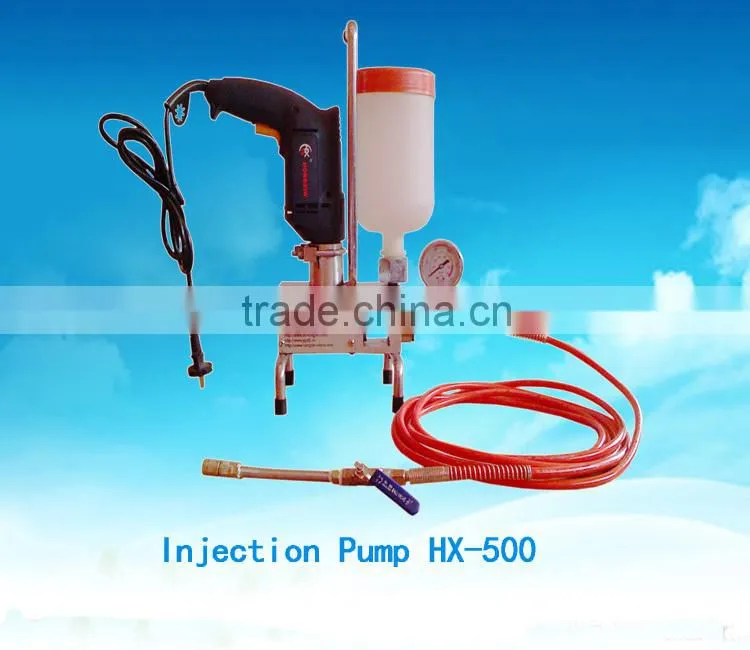

HX-500, High Pressure Portable Injection Pump, adds an adjustable pressure gauge onto the basic edition . It prevents the machine and the hose system from exceeded pressure, which results in damaging and/or breaking the whole system. This is the professional machine for hydrophilic polyurethane (WPU), hydrophobic polyurethane (OPU), and epoxy resin injection. The pressure which is created can inject materials into 0.02mm hairline cracks. It is widely used in waterproof, water leakage seal, and concrete crack repair. IEs are well known for their light weight, small size, simple to operate and maintain, and long product life. It is the best choice for stanch workers.
Product Description
1. Product Name: HX-500
2. Power Consumption: drill 810W/220V
3. One Ways of Material Feed-In: Pour

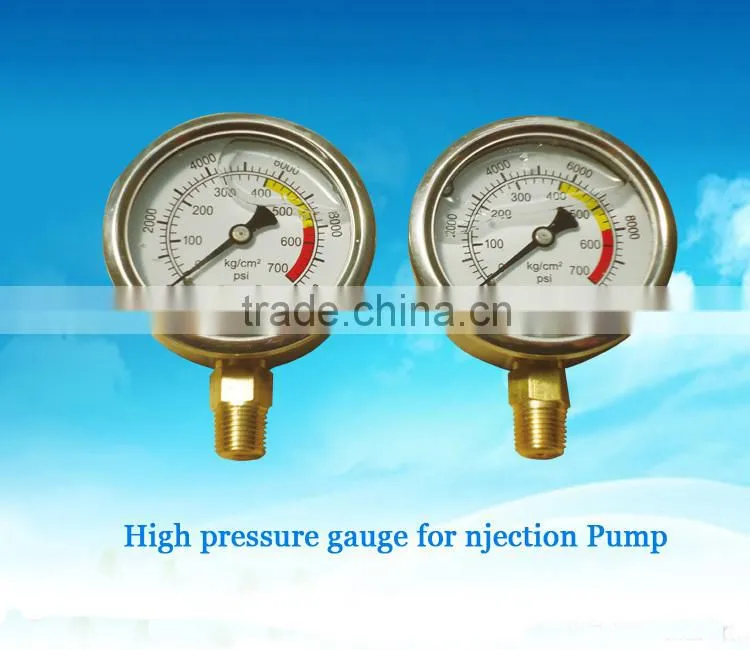

4. Adjustable Pressure Gauge
5. Single Component
Specification
Weight |
8 Kgs / 20Lbs. |
Maximum Output Pressure |
70 MPa / 10,000 Psi |
Pressure of Restarting |
Less than 20 MPa / 2,900 Psi |

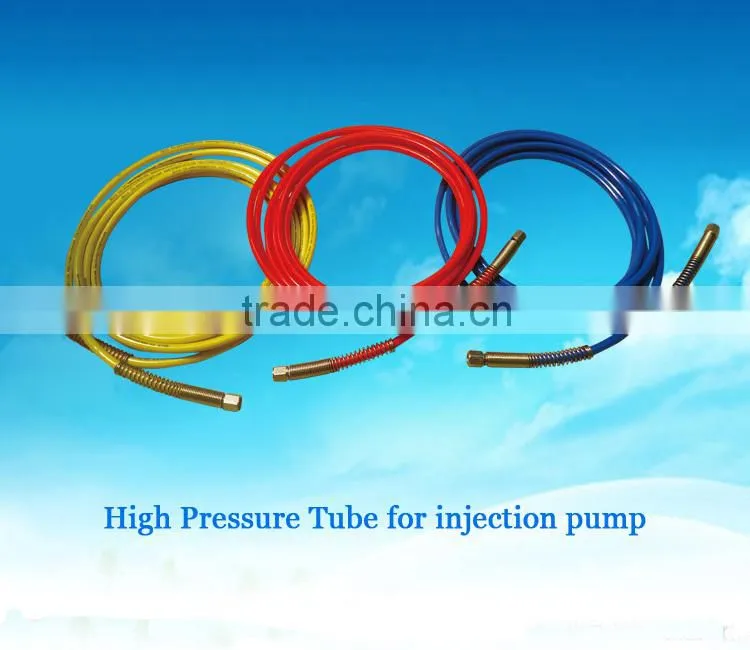

Safe range of High-Pressure Hose |
Less than 70 MPa / 10,000 Psi |
Safe Range of Switch Valve |
Less than 50 MPa / 7,250 Psi |
Materials of Application
Hydrophilic Polyurethane (WPU) and Hydrophobic Polyurethane (OPU) foam stop leakage agent, Epoxy Resin.
Application Field
Subway Station, Tunnel, Culvert, Foundation Improvement, Soil Settlement, Reservoir, Port Project, Top Slab, Crack, Construction Join, Shrinkage Crack, Basement Hairline Crack, etc., water stop projects.
