gps tracking device , gps tracking , GPS Trackers

FOB Price

USD $76 - $86 / Set

1 Set(Min.Order)

Supply Ability 5000 Set / Sets per Month
Port Shenzhen
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Type:	Gps Tracker	Use:	Other, track vehicles/cars/trucks	Screen Size:	Other
Place of Origin:	Guangdong, China	Brand Name:	OEM,ODM	Model Number:	OX-ET-101B
Warranty:	one year

Product Description

Overview:

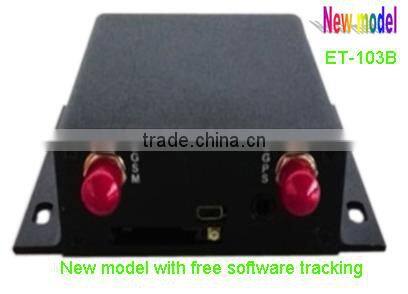

ET103B/GSM is a small, powerful, high reliability and profession vehicle tracker. Especially suitable for logistics vehicles, mortgage vehicles, business vehicles, private vehicles etc. ET103B/GSM have GSM + GPRS dual-channel communications and support Camera or Fuel Sensor. Users can real-time manage and control vehicle by computer or mobile phone.

· Function List:

Master No. and Authorize No. :

Only authorized number of tracking device before they can locate and control. Absolutely guarantee the safety of vehicles. Automatically upload data like vehicle location data, hardware information (such as the ACC state, the state of the door, voltage of vehicle battery, driver time, etc.). (Can be set by time or by distance upload data)

Remote Listen in:

External high sensitivity microphone. Users can monitor the car remotely via phone.

Remote Fuel control:

Tracking device with a vehicle-specific fuel control installation. When abnormal occur. User can control fuel of vehicle by computer or mobile phone. So that vehicle can not continue running.

SOS:

Tracking device with an emergency alarm button. Can be installed on the cover. when the event of an emergency.
press the button will send alarm to monitoring Center and to authorize No.

OverSpeed Alarm:

Tracking device can detect vehicle's speed. If vehicle's speed exceed setting of device.
It will send the alarm to monitoring center and authorized No...

Towing Alarm:

Towing means a vehicle in the parking because of the movement caused by external forces(such as the police towing). tracking device can detect that..
It will send the alarm to monitoring center and authorized No...

Parking Alarm:

User can set the maximum parking time. If a vehicle exceeds setting,
It will send the alarm to monitoring center and authorized No...

Tried Driver Alarm:

In order to the security needs of the driver, it can configured driver time. If the driver did not rest over time
It will send the alarm to monitoring center and authorized No...

Main Power Off alarm:

If the illegal removal of tracking device from vehicle
It will send the alarm to monitoring center and authorized No...

Anti-Steal Alarm:

In Armed state. if someone trespass
It will send the alarm to monitoring center and authorized No...(Can be compatible with the original car alarm system).

Low Power Alarm:

If vehicle battery voltage is too low.
It will send the alarm to monitoring center and authorized No...

GEO-Fence :

When the user set a 1km(optional) circle with the current position as center. When the vehicle left the circle area, device will send alarm

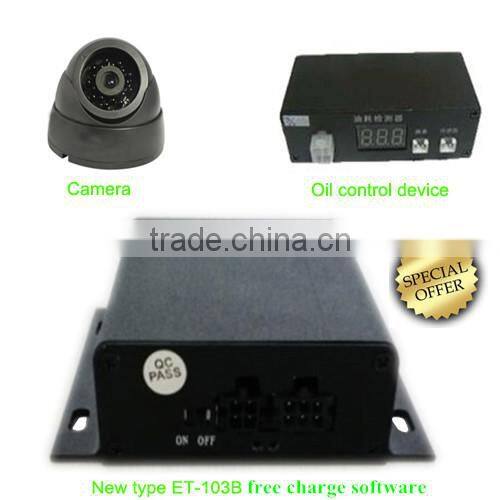

Extension Accessories

1) Camera: ET-103B could work with 4 Max camera to take pictures.User could operate with tracking system software.Further more, when there's alarm , it will take the picture automatically and send back to server.
Fuel Sensor: Data Collector is used to get the digital information from the sensors which installed in the vehicle.And the ET103B passed the information to the sever,then we can read the these from computer and store them. Now it widely used to fuel remaining and temperature.

Particular Function:

Without computer, user can got detailed address from tracking device by mobile phone.
In the absence of GPS signal. use GSM network positioning.

· Custom Development:
Products can be customized according to your request and support solution of product include hardware and software.
Welcome you to contact us!

· Specifications:

Size: 80mm*53mm*25mm
Weight: N.W0.16KG G.W. 0.61KG

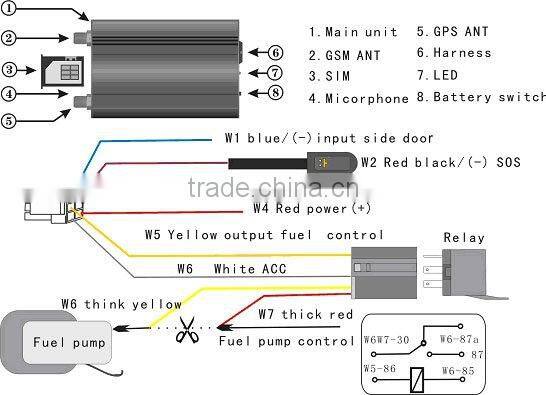

Input/Output:

3x Input ACC/ SOS / Door Check/

1x Output Fuel Control

RS232 Input:(Can Connect Camera or Fuel Collector)

Microphone

Communication: GSM / GPRS (900/180 or /850/1900)
Positioning accuracy: 5m~10m

Keyword: GPS Vehicle Tracker, GPS Tracking Device, GPS Car Alarm, Fleet tracker, AVL
