Home > Products > Hongda Crushers and Grinders > QS-100 Airflow Crusher

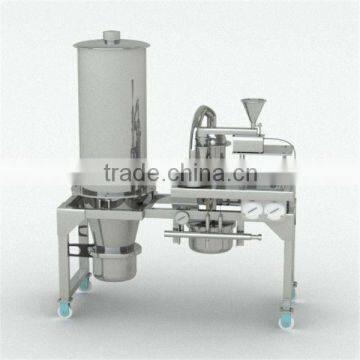

QS-100 Airflow Crusher
- Shanghai
- T/T Money Gram
You May Like
Product Details
| Type | Other, Other, Pulverizer | |||
| Application | Powder | Place of Origin | Jiangsu, China | |
| Brand Name | Hongda | Model Number | QS-100 | |
| Certification | CE, ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. simple structure and easy cleaning2. crushing brittle material
3. the size of output is 1000mesh
4. super fine crusher
Main Application:
This airflow crusher is applied for supwe fine crushing of fragile material in such trades as pharmsceutical.chemical,foodstuff.mineral,pesticide,pesticide,pigment,dyestuff,new pattern and ceramics etc.and is especially for small batch,warious producing.
Working Principle:
This machine is used for compressing gases.through feed sprayer,made powder materials(near 60 mesh)which fall from automatic feeder come into mill evenly and continuously.Meanwile,by the pulverizing nozzles at the periphery of the pulverizing room,compressed gas from high-speed air flow,then spray into the pulverizing room the pulverizing room,make powder particles impact and rub each other,thus attain pulverization goal,After pufverized,the greater pare of the ultra-fine particles are collectsd under the cycline separetor,part of turther fine particles are collected into filter collector and gases discharge through filter.This machine is simple structure,small volume,easy deaning.
Technical Parameters :
Grinding press | Feed pressure | Airvolume | Handing capacity | Crushing fineness (mesh) | Overall dimension | Weight
| Motor power of air compressor |
0.6-0.9Mpa | 0.6-0.9Mpa | 1.1-1.55m3/min | 2-10kg/h | 300-2000 | 1320×620×1600mm | 140kg | 13-15kw
|
Contact Us
- Jiangyin Hongda Power Equipment Co., Ltd.
- Contact nameJohnson Sun Chat Now
- Phone86-510-86906308
- AddressNo. 68, Jincheng Road, Zhouzhuang Town, Jiangsu, China
