Exquisite Craftsmanship Advance Good Perofrmance Peanut Butter Making Plant

Introduction Of Peanut Butter Making Plant

Peanut butter is nutritious and delicious, it is rich of vitamin A, vitamin E, folic acid, calcium, magnesium, zinc, iron, fiber and protein, also contains large amounts of monounsaturated fatty acids, can increase the heat emission, burning harmful cholesterol and reduce the high blood lipid. Nowadays peanut butter is welcomed and becomes necessary in people’s daily food menu. Peanut Butter Production Line we designed begins from raw peanut kernels, passing by peanut de stoner, peanut roaster, split peanut blanching, peanut sorting belt, peanut grinder, peanut cooler, peanut mixing tank and peanut butter filler, finally ends bottle/jar/bags packed peanut for sale.

Design Purpose

Peanut Butter Making Plant begins from raw peanut kernels, finished at bottle packed butter, the line is complete automatic from beginning to end.

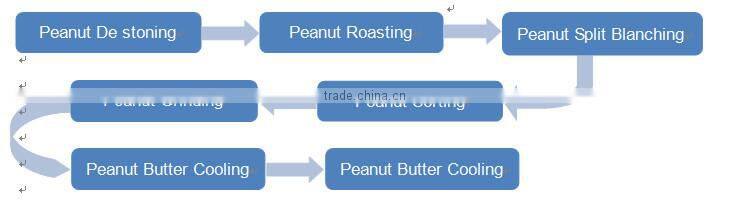

Simple Introduction

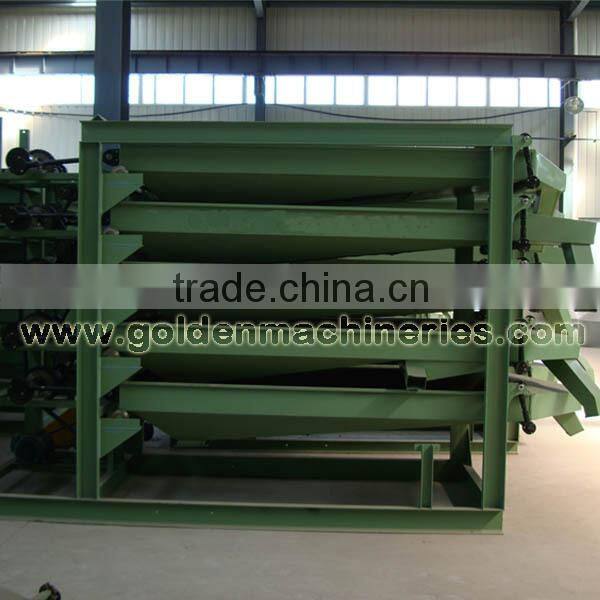

1.Peanut Cleaning: It takes away the light impurity, stone by gravity de stoner system, the stone will flow up to the de stoner’s exit, the light impurities will be sucked by the air cyclone system.

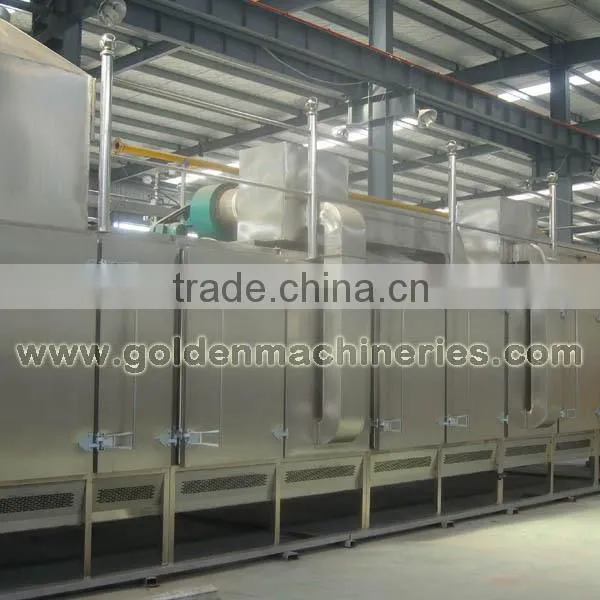

2.Peanut Roasting: In this line we use an automatic roaster, it can be designed natural gas & electrical &coal type, just depend on customer’s request. In order to satisfy different area customer, this line can adopts drum type roaster, for matching with this line, 5-units assembled drum roaster is suggested. The raw peanuts will be baked in high temperature (150-170 oC), for automatic roaster, the baking time is 20-30minutes, for drum roaster, the time will be 50minutes at least. It also depends on material’s humidity.

3.Split Blanching: the roasted peanuts come from vibrating discharge device, through bucket conveyor, are feed into split blancher, under the frication of rubber rollers, the red skin will be taken, and sucked by the cyclone system. Most of peanut will be split in half-piece or much small, the bitter germ will be separated by the vibrating sieve at bottom of split blancher, finally blanched peanuts will fall to the sorting conveyor.

4.Sorting Belt Conveyor: the over-roasted, un-blanched peanut kernel, bad kernels and small impurities will be picked up by manual (6-8person), it is the last station which inspect the peanut kernels before grinding section. Sorting belt speed can be changed on request.

5.Metal Detector: it is mainly designed to pick out the metal impurities among split blanched peanuts, in order to protect the cutter and keep purity of finished chopped peanuts.

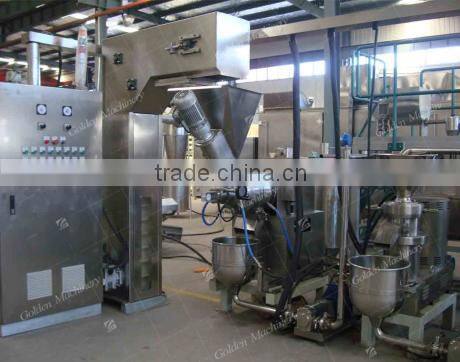

6.Primary grinding: Using disc grinder to make the first grinding, the blanched peanuts will be feed into the primary grinder’s feeder first, then they will be put by a kind of screw force, peanut will fall to limited gauge between two disc and be grinded by sand disc in high speed, the primary butter will flow to the tank and pumped into the second grinder

7.Second grinding: The purpose of second grinder is for fine grinding, the fineness of grinding is controlled below 7-12um, water cooling system should be supplied in order to reduce the grinders’ chamber temperature (both primary and second grinder).

8.Cooling refrigerator set: It is another key part of the whole plant, the butter’s temperature from second grinder can reach to 90C or so, in order to reduce the temperature and make it prepared to be packed, we have to build a cooling system. The refrigerator work and produce cooling water (water temperature can be set on), the cooling water will be divided into 3direction, the 1st is to provide cooling water for grinders, the 2nd is for the blending tank, the 3rd is to for the cooling machine. The cooling water can used repeatedly, so no loss on water. All connecting pipes in the cooling system are made of 316L, food grade.

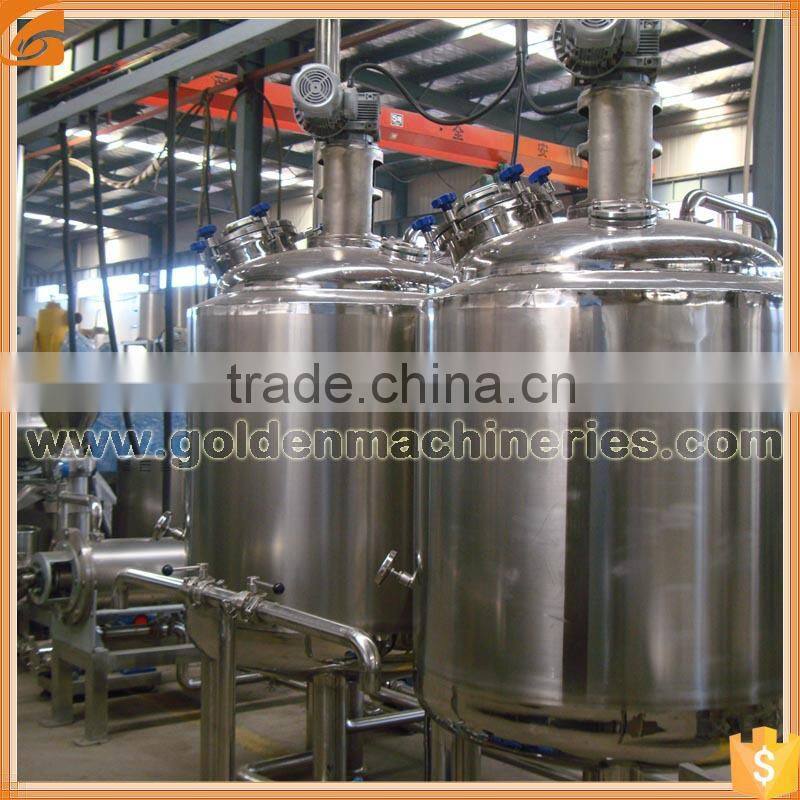

9.Mixing tank: This tank has two layers, with two functions, mixing and making the butter more homogeneous, moreover, it can also decrease the butter’s temperature with large extent.

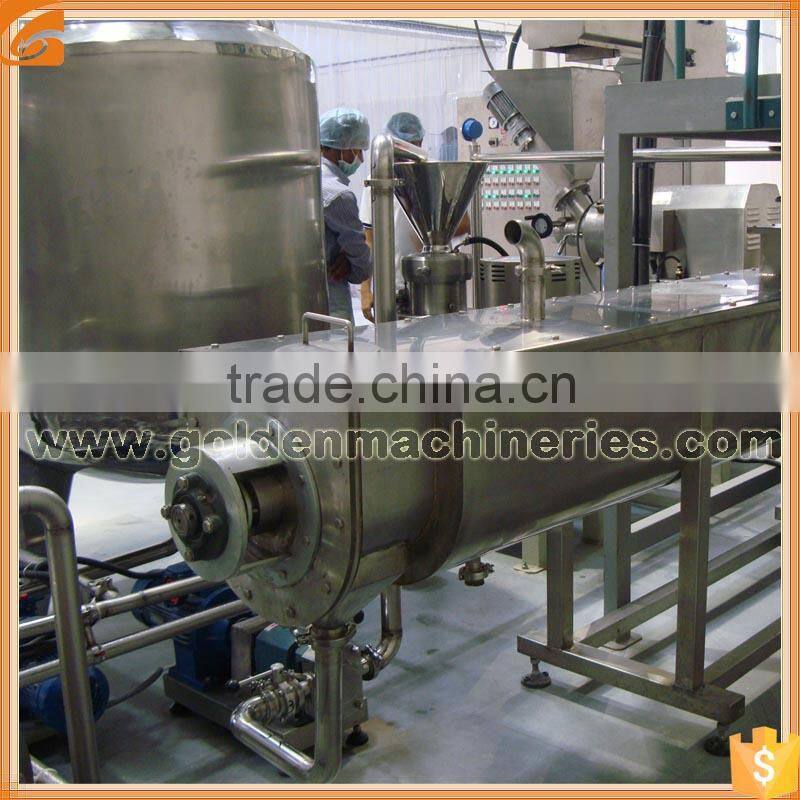

10.Cooling machine: The butter is pumped into cooling machine, through pipes twisted inside of cooler, the ideal temperature will obtain.

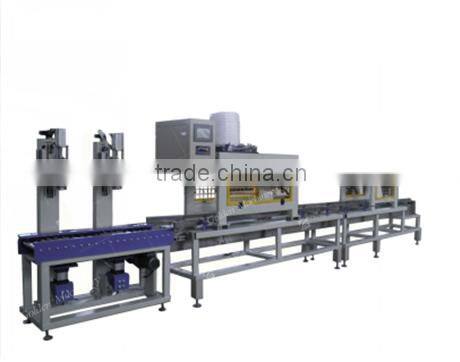

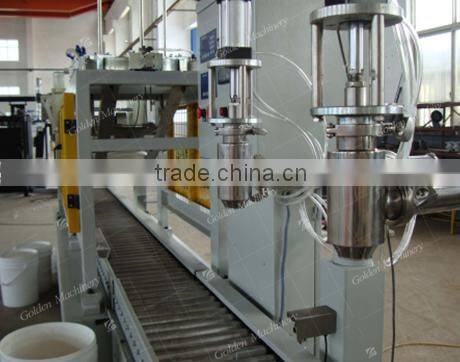

11.Filling: by the peanut butter filler, capper, labeling machine, etc. Peanut butter is packed into 200g/500g/1000g bottle.

Capacity Available

500/1000/1500/2000kg/hr

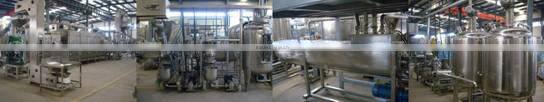

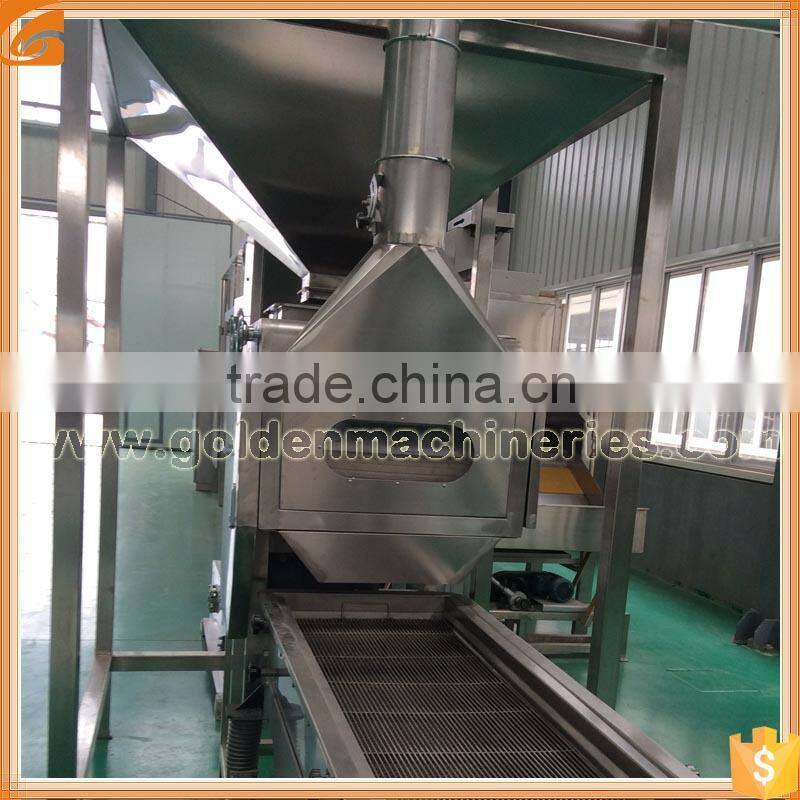

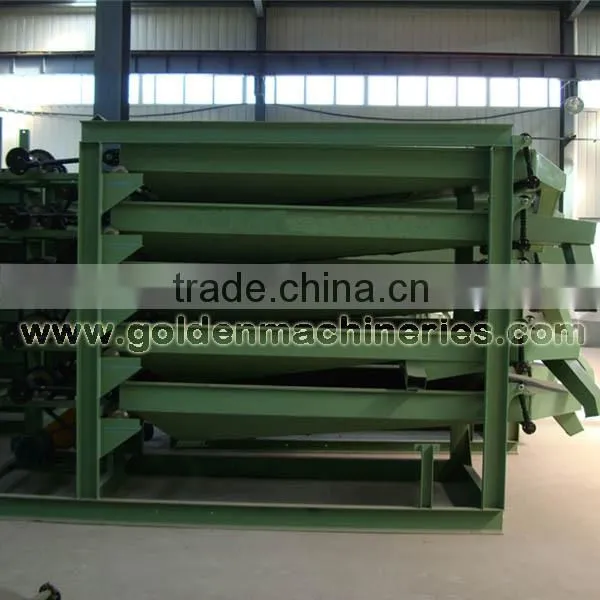

Peanut Butter Making Plant Machine Pictures

Peanut Butter Making Plant Equipment List

Hopper

Vertical Conveyor

Peanut De stoner

Bucket Elevator

Peanut Roaster

Vertical Conveyor

Split Peanut Blancher

Sorting Belt Conveyor

Collecting Conveyor

Vibrating Sifter

Dust Collection System

Metal Detector

Peanut Grinder

Ribbon Mixer

Cooling & Mixing Tank

Peanut Butter Cooler

Vacuum Air Exhauster

Peanut Butter Filling System

Electrical Control System

Main Machines

Peanut De stoner

Peanut roaster

Split Peanut Blancher

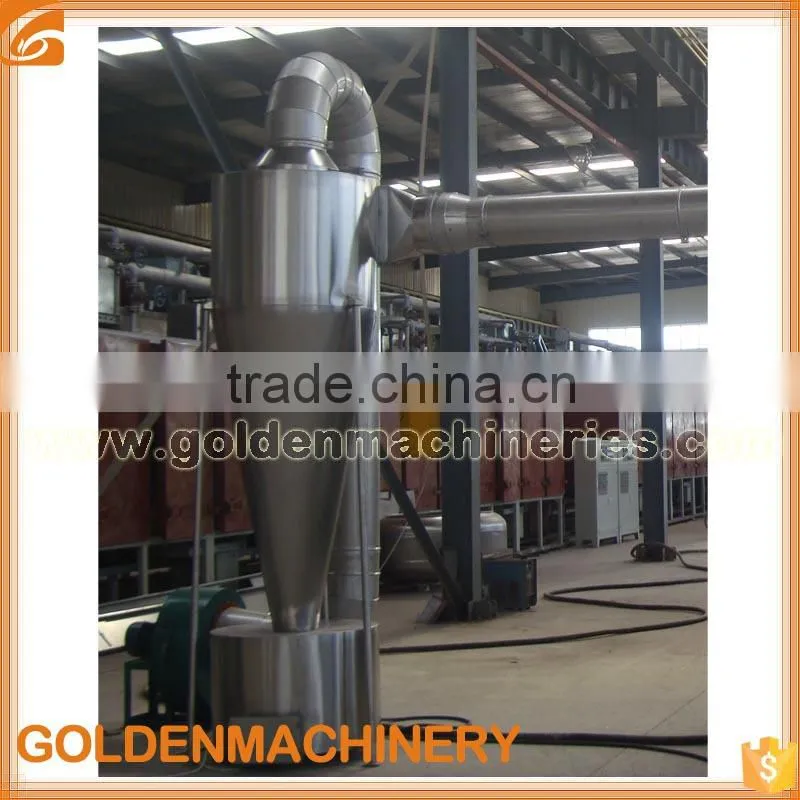

Dust Collection System

Peanut Grinder

Cap-tightener

Filling Machine

Our Services

1.We obey the rule of Customer-orientated
2.Initial consultation by email or on-line messenger
3.Timely delivery and ship organization
4.Guide how to use and daily maintenance
5.Provide a comprehensive range of after-sale service
6.Availability spare parts service and prompt dispatching

Experienced Installation & Training

About Us

As a pioneer in the manufacture of Peanut Processing Machinery, we dedicate to design, manufacture Peanut Sheller, Peanut De huller, Peanut De stoner, Peanut Sieving Machine, Peanut Color Sorter, Peanut Roaster, Peanut Blancher, Split Nut Blancher, Peanut Coater, Peanut Fryer, Peanut Chopper, Peanut Slicer, Peanut Powder Mill, Peanut Butter Grinder, Peanut Butter Cooler and all kinds of assistant Conveyors, our machinery have been applied for processing Peanuts, Sunflower Seeds, Pumpkin Seeds, Cashew Nut, Horse Beans, Almonds, Walnuts, Hazelnut Pistachios, Pine Nuts, Pistachios and dried fruits.
With tens of years development, our peanut processing plants, such as Peanut Shelling & Sieving Line, Peanut Roasting Line, Peanut Blanching Line, Peanut Chopping Line, Peanut Coating Line, Peanut Frying Line, Peanut Butter Line, Slated Inshell Peanut Line are installed and run in customer’s company successfully, effective and lasting quality help us to create a deep impression both domestically and internationally. Our machinery occupies more than 85% in domestic market, are exported to more than 30 countries.

If you are interested in our machine,please feel free to contact us!
