Specifications
circular vibrating screen1.Adjustable vibration frequency
2.Uniform screen;low noise
3.Factory
4.CE/ISO9001
1.Application of Circular vibrating Screen:
YZS Series circular vibrating screens used for separating the stuff,are unique and advanced products of our company.They are mainly used in coal dressing,metallurgy,min,power station,water conservancy project,building industry,light industry and chemical industry etc.They are efficient screening machines for the classification of bulk material such as coal,minerals,coke etc.
2.Working principle of Circular vibrating Screen:
The Circular Vibrating Screen is composed of mainframe,eccentric bock,screen web,rub spring,
electric motor,coupler and some more.It has multi-layers and is of high efficiency.The eccentric shaft vibration exciter and partial block help to adjust amplitude.The material drops down along the long time.We have always kept in our minds the choices,preferences and the tastes of our all clients.We will offer you suitable type according to your requirements.
3.Features of Circular vibrating Screen:
1.The materials drop down the long line,and the machine bears the features of differentspecifications.
2.Taking the partial block as the exciter,which is strong.
3.Screen cross-beam and box are connected by strong bolt,which is with simple structure,and
convenientmaintenance.
4.With small amplitude,high frequency,large-inclination structure,high efficiency,large capacity,long service life,low power consumption and noise.
4.Specifications of Circular vibrating Screen:
Model |
Screen Spec(mm) |
Layers |
Screen Mesh Size(mm) |
Feed Size(mm) |
Capacity(t/h) |
Power(kw) |
Vibrating Frequency(HZ) |
Double Amplitude(mm) |
2YZS1445 |
4500x1400 |
2 |
5-50 |
≤100 |
45-250 |
11 |
900 |
5-9 |
2YZS1548 |
4800x1500 |
2 |
5-50 |
≤100 |
50-250 |
15 |
870 |
5-9 |
3YZS1548 |
4800x1500 |
3 |
5-50 |
≤100 |
50-250 |
15 |
870 |
5-9 |
2YZS1848 |
4800x1800 |
2 |
5-50 |
≤100 |
50-250 |
18.5 |
870 |
5-9 |
3YZS1848 |
4800x1800 |
3 |
5-50 |
≤100 |
50-250 |
18.5 |
870 |
5-9 |
2YZS1860 |
6000x1800 |
2 |
5-50 |
≤100 |
50-128 |
18.5 |
870 |
5-9 |
3YZS1860 |
6000x1800 |
3 |
5-50 |
≤100 |
50-128 |
22 |
870 |
5-9 |
2YZS2160 |
6000x2100 |
2 |
5-50 |
≤100 |
60-300 |
22 |
730 |
5-9 |
3YZS2160 |
6000x2100 |
3 |
5-50 |
≤100 |
60-300 |
30 |
730 |
5-9 |
2YZS2460 |
6000x2400 |
2 |
5-100 |
≤100 |
100-460 |
37 |
730 |
5-9 |

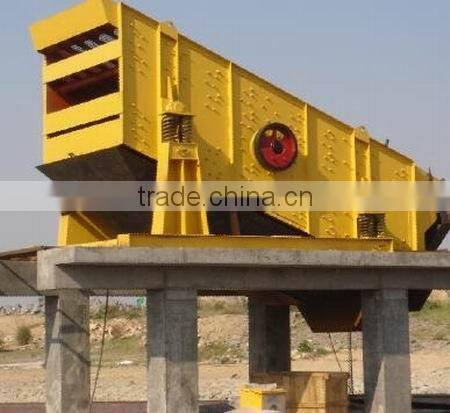

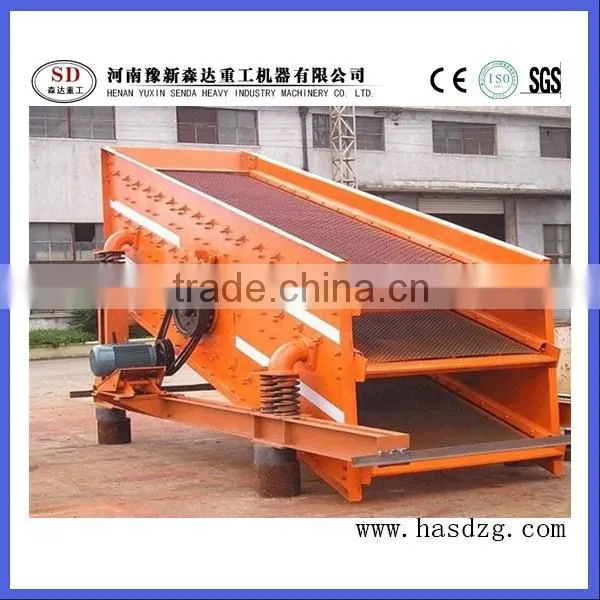

5.Main Pictures of Circular vibrating Screen:
