2013 Good Efficiency ISO9001 Certificated Circular Vibrating Screen

2013 Good Efficiency ISO9001 Certificated Circular Vibrating Screen thumbnail-1

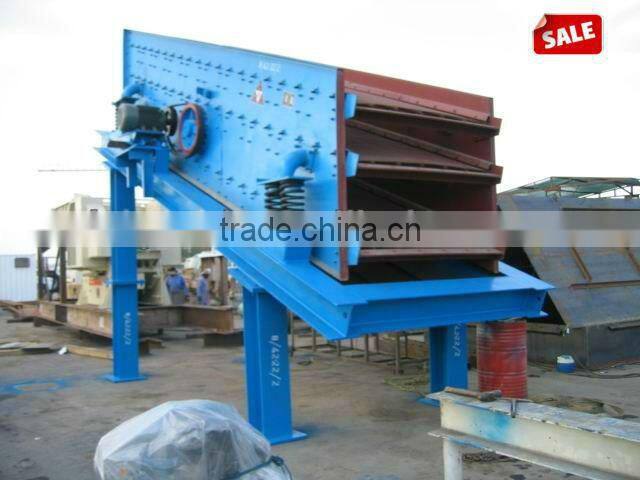

2013 Good Efficiency ISO9001 Certificated Circular Vibrating Screen photo-1
US$ 2,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Type:
Circular
Application:
Ore
Contact Supplier Request Quote Chat Now
Henan Yuxinsenda Heavy Industry Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Circular
Application Ore
Place of Origin Henan, China
Brand Name SD
Model Number 2YZS1860
Power(W) 18500
Certification ISO9001
Warranty 1Year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Vibrating Screen
1.Steady vibration,Large capacity
2.High Screening efficiency
3.Long life screen,
4.1-4 layer

Circular Vibrating Screen





Cicular Vibrating screen,screen machine

Vibrating screen introdcution:



1.Circular vibrating screen is one of the unique product or equipment,it is used for separating the stuff,the circular vibrating screen work on circular motion.



2.Cicular Vibrating screen are widely used in coal dressing,metallurgy,mine,power station,water conservancy project,building industry,light industry and chemical industry,etc,they are efficient screening machines for the classification of bulk materials such as coal,minerals,coke.etc.

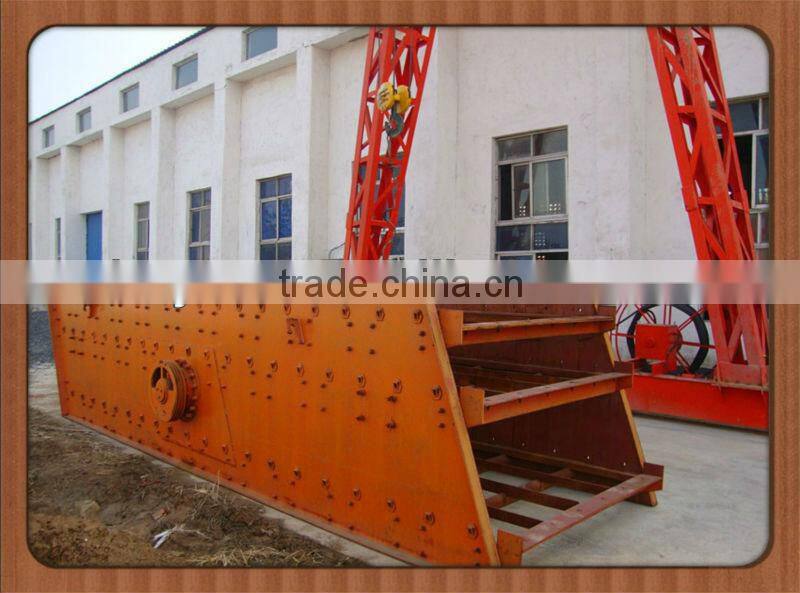

2013 Good Efficiency ISO9001 Certificated Circular Vibrating Screen



Cicular Vibrating Screen Working principle:

Vibrating screens is compiled of mainframe, screen web, rub spring, electric motor, coupler and some moreeccentric shaft vibration . Vibrating screen moves around. It has muti-layers and is of high efficiency. The exciter and partial block help to adjust amplitude. The material drops down along the long line.

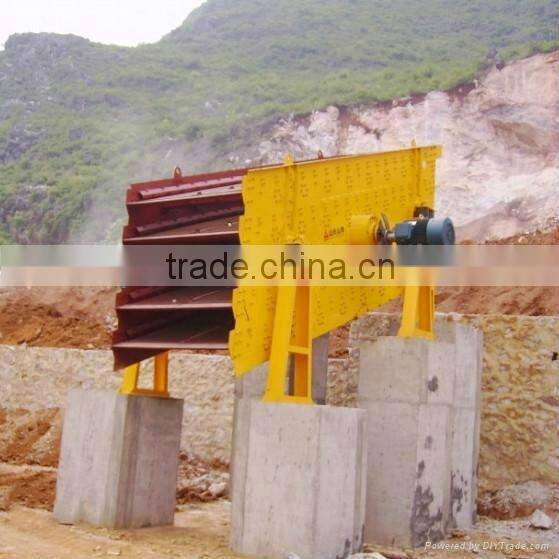

2013 Good Efficiency ISO9001 Certificated Circular Vibrating Screen



Cicular Vibrating Screen Features:

(1)Simple and dependable Eccentric type system.
(2)High screening capacity.
(3)High durability and stable performance
(4)No transmission of screen panels.
(5)Ready changing of screen plates.
(6)Rigid and vibrating resistance screen body

(7) Used in metallurgy,construction, abrasive industrial



 Cicular Vibrating Screen Parameter:

Model

Screen size (mm)

No. of Layer

Screen mesh (mm)

Max. feed size(mm)

Handling capacity (t/h)

Motor power (Kw)

Vibrating frequency (r/min)

Double swing(mm)

2YZS1237

3700×1200

2

3-100

400

10-80

11

750-950

5-9

3YZS1237

3700×1200

3

3-100

400

10-80

11

750-950

5-9

2YZS1548

4800×1500

2

3-100

400

30-200

15

750-950

5-9

3YZS1548

4800×1500

3

3-100

400

30-200

15

750-950

5-9

2YZS1848

4800×1800

2

3-100

400

50-250

18.5

750-950

5-9

3YZS1848

4800×1800

3

3-100

400

50-250

18.5

750-950

5-9

4YZS1848

4800×1800

4

3-100

400

50-250

18.5

750-950

5-9

2YZS1860

6000×1800

2

3-100

400

65-586

22

750-950

5-9

3YZS1860

6000×1800

3

3-100

400

65-586

22

750-950

5-9

4YZS1860

6000×1800

4

3-100

400

65-586

22

750-950

5-9

2YZS2160

6000×2100

2

3-100

400

81-720

30

700-900

5-9

3YZS2160

6000×2100

3

3-100

400

81-720

30

700-900

5-9

4YZS2160

6000×2100

4

3-100

400

81-720

30

700-900

5-9

2YZS2460

6000×2400

2

3-150

400

100-500

30

700-900

5-9



 2013 Good Efficiency ISO9001 Certificated Circular Vibrating Screen





Circular Vibrating Screen







If you have any question ,don't hesitate to contact us !
