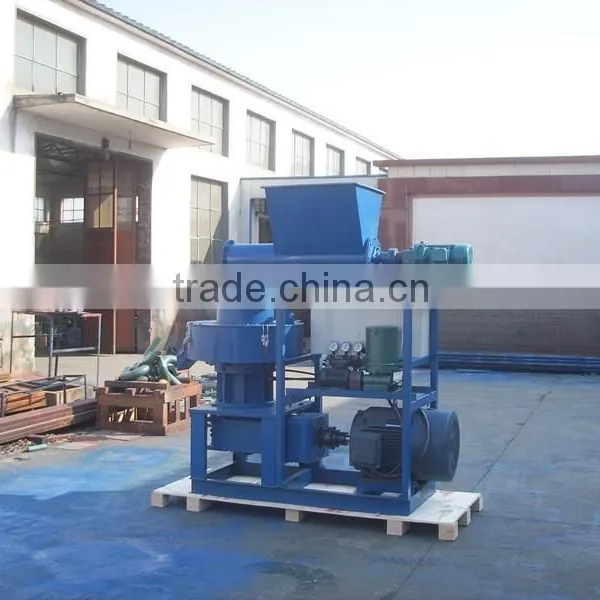

Vertical big capacity ring die pellet machine
1.Vertical feeding directly in place.
2. Die static, roller rotating, materials centrifugal, Evenly distributed around.
3.Double-layer dies, up and down dual-use, reduce the cost,enhance the efficiency, can be dual-use,high capacity,energy saving.
4.One die,different hole diameters, with different specifications to pelletize.
5.Macroporous die, wire joining circular tube, increasing travel, improving density.
6.Ring die,vertical structure,good for cooling the pelletizing room.
7. Independent and frequency conversion discharge device, to ensure that the rate of
pellet formation.
Raw material :
you can choose sawdust, wood chipper, all kinds of straw, corn husk powder,groundnut shell,bamboo biomass and so on. the moisture between 8%-25%.
1. Upward mould, special structure, vertically feeding and easier heat dissipation.
2. Die static, roller rotating, material centrifugal and distributed around evenly.
3. Double-layer die, multi-function, high efficiency.
4. Macroporous die, wire joining circular tube, increasing travel, improving density.
| Model | Capacity | Motor power | Weight | Packing size | Diameter of final pellet |

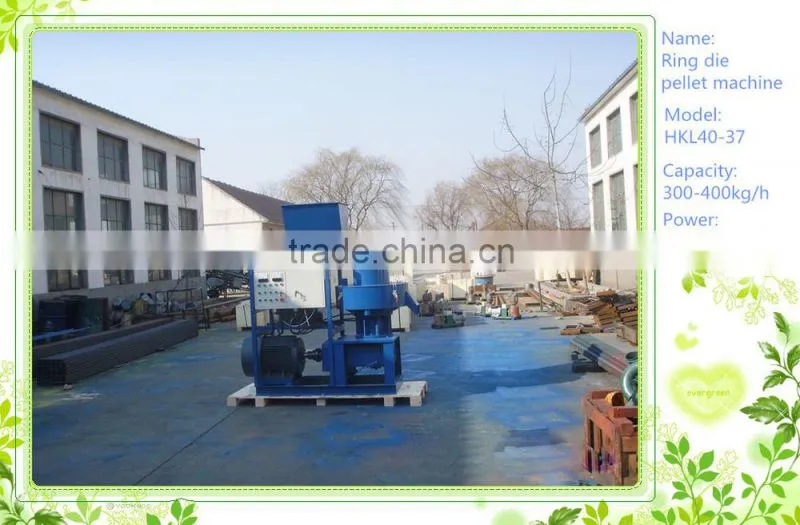

| HKL40-37 | 300-400KG/H | 37KW | 1500/1600KG | 2120X840X2220MM | 4-12MM |
| HKL40-45 | 400-600KG/H | 45KW | 1900/2000KG | 1850X740X1740MM | 4-12MM |
| HKL45-55 | 600-800KG/H | 55 | 3000/3100KG | 2420X1210X1950MM | 4-12MM |
| HKL45-75 | 800-1200KG/H | 75 | 3200/3400KG | 2520X1210X2000MM | 4-12MM |
| HKL45-90 | 1200-1500KG/H | 90 | 3500/3600KG | 2780X1320X2100MM | 4-12MM |
FINAL WOOD PELETS:
SPARE PARTS: RING DIE AND ROLLER
