Specifications
Chicken manure dryer1.Large production volume
2.Wide application range
3.Small flow resistance
4. Convenient operation

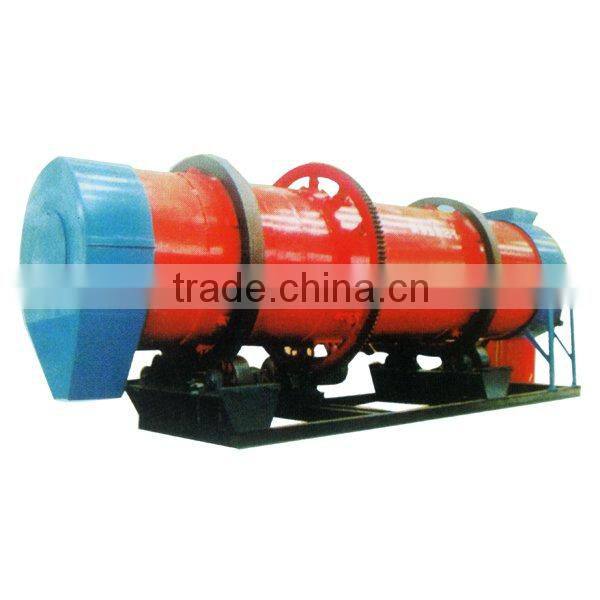

2013 new product High Efficient Chicken Manure Dryer with spare parts
1.Features of Chicken manure dryer:
Chicken manure dryer is a low-fuel-consumption and high efficiency of drying equipment
Can be used to dry the material with a moisture content below 85% to a final moisture content below 13%
Applicable in animal farming, food brewing, sugar and pharmaceutical industries dealing with high humidity waste, as well as a variety of chemical raw materials, such as chicken manure, wine slot, furnace slag, fructose slag, slag vinegar sauce, sugar beet residue, animals slaughtered contents, coal slime, bentonite, and more
For resource development and good environmental protection equipment
The equipment uses downstream drying process, especially suitable for fast drying the humidity materials which need to preserve nutrition, for example, the drying of fresh chicken manure can achieve the purposes of drying, sterilization, deodorant and preservation of nutritional
Equipped with high-speed rotating drum of crushing devices, which increases the contact area between material and drying medium, the internal unique equipment design, makes materials difficult to adhere to the drum wall panels and parade
The complete machine has the effects of heat preservation, good sealing performance, and the fact that the thermal efficiency considerably higher than the general drum dryer
The dryer structure is compact, easy to install and debug, and using small floor area
Drum and crushing device use stepless speed regulating devices, which can adapt to the different requirements of the drying materials
The dryer can combine the use of different fuels (such as coal, heavy oil, natural gas, and more)
2.Facilities and work principle of Chicken manure dryer:
The complete sets of equipment mainly is composed of the crushing drum dryer, burning furnace, feed spiral, output spiral, pipeline, dust collector, airlock, air induced fan, electric control cabinet, and other components
3.Work principle of Chicken manure dryer:
Conveyed from the feed screw directly into the dryer drum, raised by the drum wall panels repeatedly, and scattered by the crushing blow dispersion devices
Materials and the negative high-temp media are combined sufficiently to complete heat and mass transfer process
Result of the drum wind angle and induced air, feed materials move slowly, and discharged from the spiral after drying, exhaust gas handled by the dust precipitator, venting to the atmosphere
4.Chicken manure dryer Technical Specification
Model |
TDG800 |
TDG1000 |
TDG1200 |
TDG1500 |
TDG1800 |
TDG2000 |
TDG2200 |
Capacity |
≥500kg/h |
≥1000kg/h |
≥1300kg/h |
≥1600kg/h |
≥1800kg/h |
≥2000kg/h |
≥2200kg/h |
Power |
4kw |
5.5kw |
7.5kw |
15kw |
18kw |
18.5kw |
22kw |
dryer weight |
5T |
6T |
8T |
18.2T |
26T |
28T |
35T |
Note: The capacity of above models can be achieved only after the material handled by the dewaterer

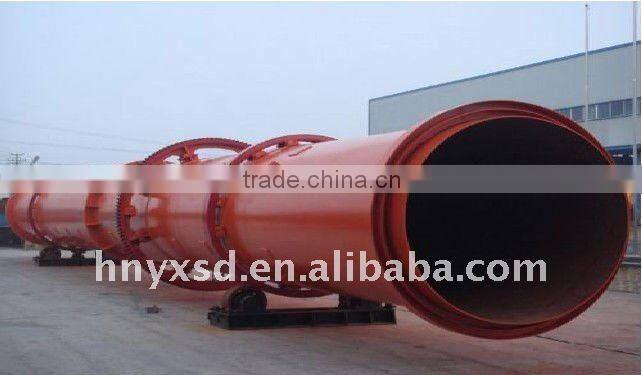

2013 new product High Efficient Chicken Manure Dryer with spare parts
