1800*9000mm CO2 overlength large format tailoring laser cutting machine
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card PayPal
Product Details
Condition: | New | Laser Type: | CO2 | Applicable Material: | Acrylic, Leather, MDF, Paper, plastic, Plywood, Rubber, Wood |
Cutting Thickness: | 0-20mm | Cutting Area: | 1800*9000mm | Cutting Speed: | 0-36000mm/min |

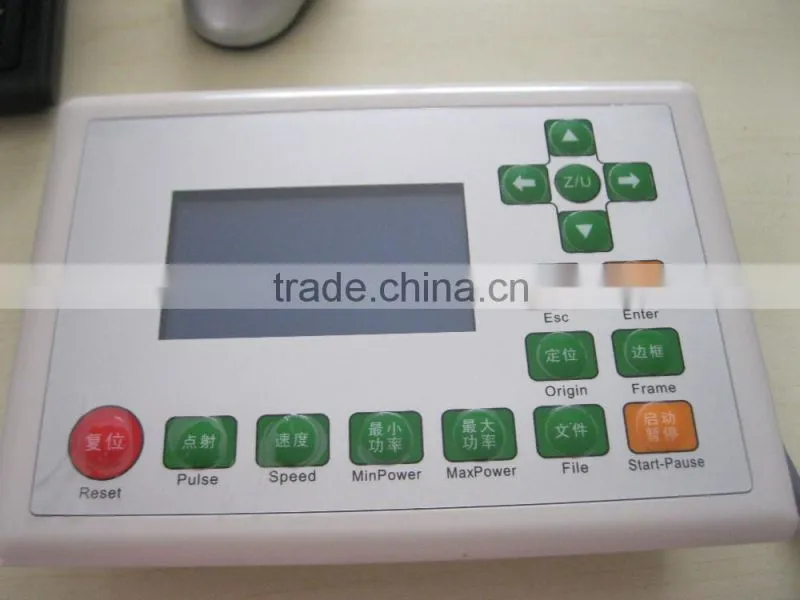

CNC or Not: | Yes | Cooling Mode: | Water Cooling | Control Software: | Lasercut, rdworks v8 |
Graphic Format Supported: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | Place of Origin: | Shandong, China | Brand Name: | DX |
Model Number: | DX-I1890 | Certification: | CE, Other, CE, PDA | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

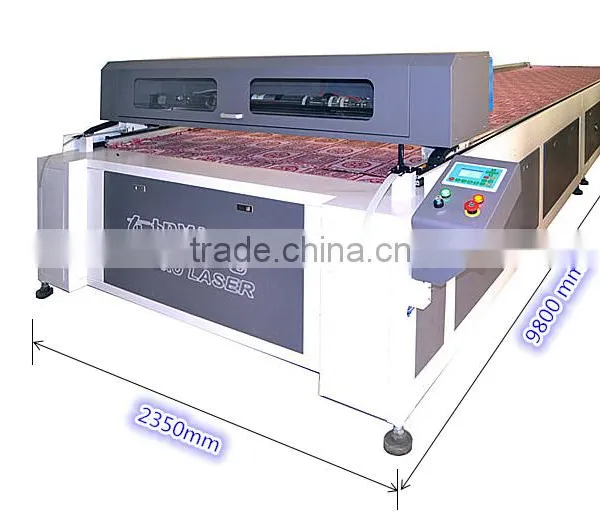

1800*9000mm CO2 overlength large format tailoring laser cutting machine
Machine Description | DX-1890 large format tailoring laser cutting machine |
Laser-type | Hermetic and detached CO2 glass laser tube |
Laser-power | 100W(80W. 120W. 150W as options ) |
Gross Power | no more than 3,000W |
Working area (L*W) | 70.9" * 354.3" / 1800cm*9000 cm |
Worktable type | knife shape or honeycomb bedplate |
Max Cutting speed | 24"/s / 600mm/s |
Power supply | 220V±10% /50HZ , 110V±10%//60HZ |
Driving system | stepper motor, optional servo motor |
Cooling mode | Water-cooling |
Precision Repeatability | ±0.05 mm |
Minimum Character | Chinese character 2.0 mm, christcross-row 1.0 mm |
Whole machine size (L*W*H) | 385.8"x92.5"x49.2" / 9800x2350x1250mm |
Details
1.Our outer packing is plywood box.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
If the clients want samples, clients just need sent their material to us and we will make the free samples to our clients, the clients just need pay the freight.
Our Services
1.18 months guarantee for whole machine except of laser tube and lens.
2.12 hours service on Internet and Telephone, free instructions and problem solving.
3. Free online training provides. We could dispatch engineer overseas, the buyer should pay the fly ticket and accommodation.
