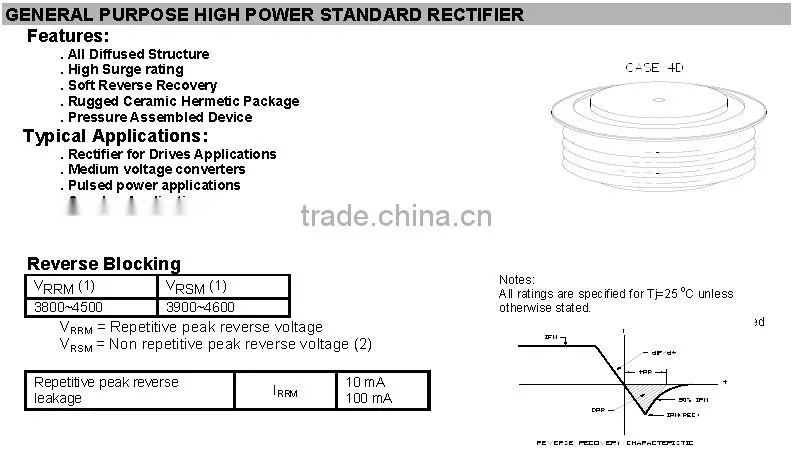

PSTA8801
Conducting - on state
Parameter |
Symbol |
Min |
Max. |
Typ |
Units |
Conditions |
Max. Average value of on-state current |
IF(AV)M |
|
2900 |
|
A |
Sinewave,180oconduction,Tc=85oC |
RMS value of on-state current |
IFRMS |
|
4550 |
|
A |
Nominal value |
|
Peak one cycle surge (non repetitive) current |
IFSM |
|
70 |
|
kA |
Tj=25°C, VR=0,8VRRM, tp=10ms |
I square t |
I2t |
|
6.6x103 |
|
kA2s |
10 msec |
Peak on-state voltage |
VFM |
|
1.15 |
|
V |
IFM = 2000 A; Tj = 160 oC |
Reverse Recovery Current (4) |
IRM(REC) |
|
- |
|
A |
IFM = 1000 A; dIF/dt = 10 A/ms, Tj = 160 oC |
Reverse Recovery Charge (4) |
Qrr |
|
- |
|
mC |
|
Reverse Recovery Time (4) |
tRR |
|
- |
|
ms |
|
* For guaranteed maximum values, contact factory
THERMAL AND MECHANICAL CHARACTERISTICS
Parameter |
Symbol |
Min. |
Max. |
Typ. |
Units |
Conditions |
Operating temperature |
Tj |
-30 |
+170 |
|
oC |
|
Storage temperature |
Tstg |
-30 |
+170 |
|
oC |
|
Thermal resistance - junction to case |
RQ (j-c) |
|
12 24 |
|
oC/kW |
Double sided cooled Single sided cooled |
Thermal resistance - case to sink |
RQ (c-s) |
|
2 4 |
|
oC/kW |
Double sided cooled Single sided cooled |
Mounting force |
P |
31 |
40 |
- |
kN |
|
Weight |
W |
|
|
1.6 |
Kg |
About |
* Mounting surfaces smooth, flat and greased

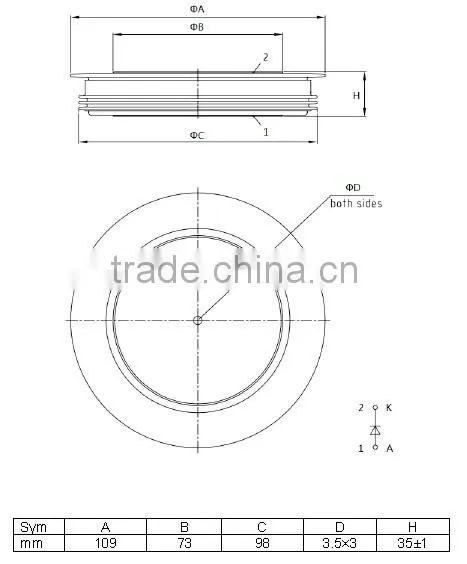

CASE OUTLINE AND DIMENSIONS
