Rectifier diode module
MDC700/16
Features:
- Heat transfer through aluminum nitride ceramic isolated metal baseplate
- Precious metal pressure contacts for high reliability
Typical applications:
- DC motor control (e.g. for machine tools)
- Temperature control (e.g. for ovens, chemical processes)
- Professional light dimming (e.g. for studios, theaters)
Conducting
|
Parameter |
Symbol |
Min |
Max |
Typ |
Unit |
Conditions |
Average value of forward current |
IF(AV) |
|
780 |
|
A |
50 Hz sinewave,180o conduction, Tc = 100 °C |
|
RMS value of forward current |
IF(RMS) |
|
1225 |
|
A |
|
|
Peak one cycle surge (non repetitive) current |
IFSM |
|
21 |
|
kA |
50 Hz sinewave,180o conduction, Tj = Tjmax, VR = 0 |
|
I square t |
I2 t |
|
2205 |
|
kA2s |
Tj = Tjmax |
|
Peak forward voltage |
VFM |
|
1.15 |
|
V |
Forward current 1600 A, Tjmax |
|
Threshold voltage |
VF(TO) |
|
0.75 |
|
V |
Tj = Tjmax |
|
Forward slope resistance |
rF |
|
0.25 |
|
mΩ |
Tj = Tjmax |
|
RMS isolation voltage |
VINS |
|
4500 |
|
V |
AC 50 Hz, 60 s |

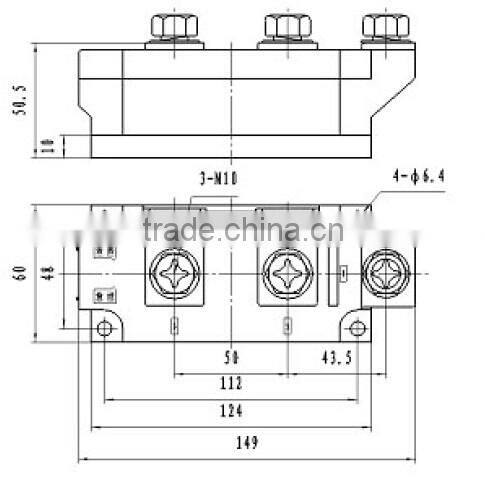

OUTLlNE AND DIMENSIONS
