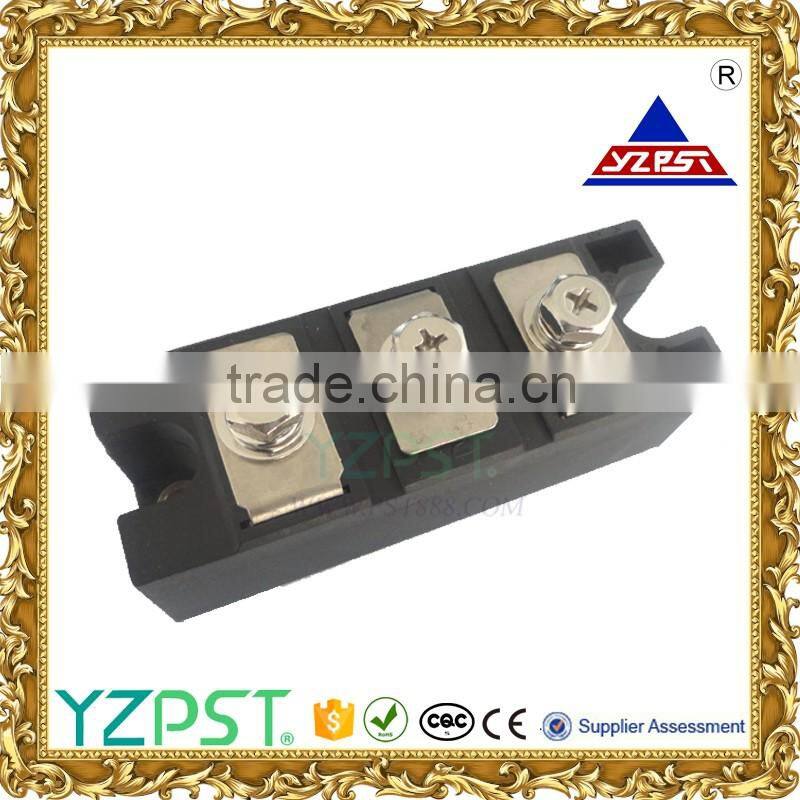

1800V Inverter Diode Modulee

Name: 1800V Inverter Diode Modulee
Brand: YZPST
SKU: 117321331
Availability: InStock

Yangzhou Positioning Tech. Co., Ltd.

1800V Inverter Diode Modulee thumbnail-1

US$ 28.00 - 40.00 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Package:

Plastic package

Model Number:

MDK200-18

Type:

Drive IC

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

SHAGNHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Package Plastic package

Model Number MDK200-18

Type Drive IC

Brand Name YZPST

Place of Origin Jiangsu, China

Diode Modules

MDK200-18

Product Description

VRRM (V)	VRSM (V)	TYPE
1000	1100	MDK200-10
1200	1300	MDK200-12
1600	1700	MDK200-16
1800	1900	MDK200-18
2200	2300	MDK200-22
2400	2500	MDK200-24

Maximum Ratings

Symbol	Item		Conditions	Ratings	Unit
IF(AV)	Average Forward Current		Single phase,half wave, 180°conduction, TC=96^oC	200	A
IF(RMS)	R.M.S.Forward Current		Single phase,half wave, 180°conduction, TC=96^oC	310	A
IFSM	Surge Forward Current		1/2 cycle, 50/60HZ, peak value, non-repetitive	5000/5500	A
I²t	I²t		Value for one cycle of surge current	125000	A²S
Tj	Junction Temperature			-40 to +150	^oC
Tstg	Storage Temperature			-40 to +125	^oC
VISO	Isolation Breakdown Voltage(R.M.S.)		Main Terminal to case 1minute	2500	V
Md	Mounting torque	Mounting(M6)	Recommended Value 2.5-3.9(25-40)	4.7(48)
Md	Mounting torque	Terminal(M6)	Recommended Value2.5-3.9(25-40)	4.7(48)

Electrical Characteristics

Symbol	Item	Conditions	Ratings	Unit
IRRM	Repetitive Peak Reverse Current, max.	Tj=150^oCat VRRM,Singe phase,half wave	8.0	mA
VFM	Forward Voltage Drop, max.	Foward current 200A , Tj=25^oC Inst. measurement	1.4	V

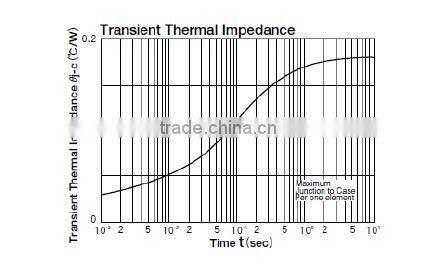

Rth(j-c)	Thermal Impedance, max.	Junction to case	0.18	^oC/W

Company Information

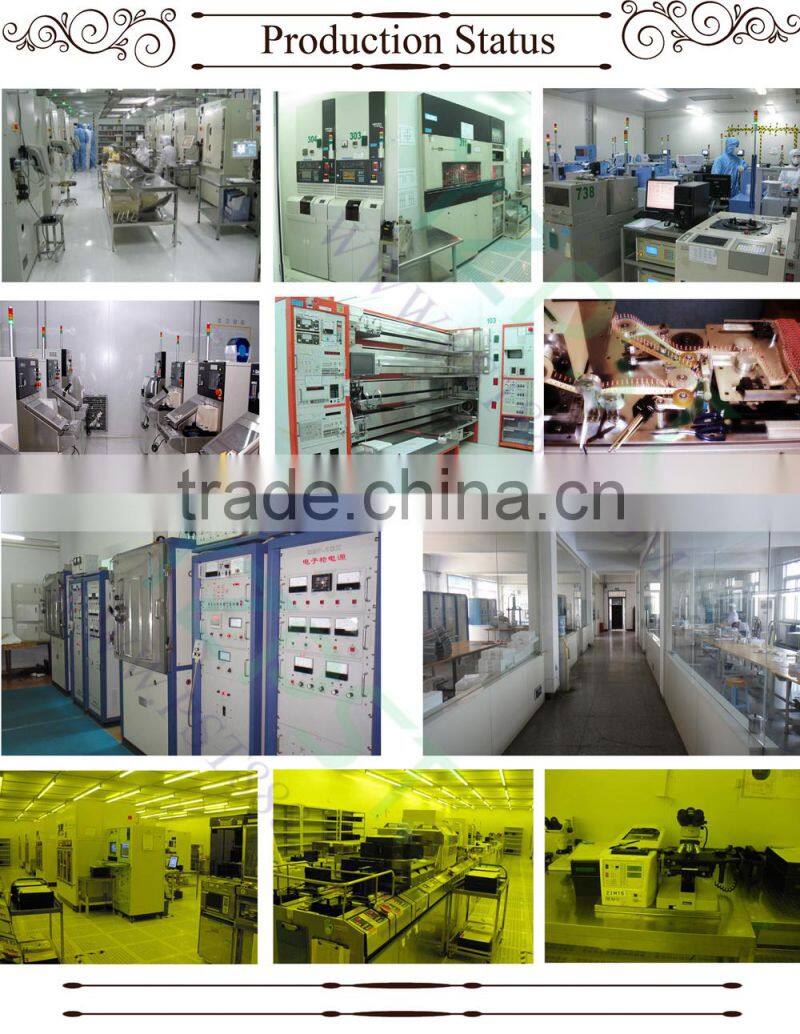

Production status

Quality And Honor

Packaging & Shipping

1. We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items).

2. If the items are defective, please notify us within 3 days of delivery.

3. Any items must be returned in their original condition to qualify for a refund or replacement.

4. We can ship to you by FedEx/UPS/DHL/TNT/EMS/HK Post. Please contact us directly and we will use your preferred ways.

5. We are not responsible for any accidents, delays or other issues caused by the forwarder.

6. Any import fees or charges are on the buyer's account

NAME :John Chang AND Sam Zhou

SKYPE: yzforever0313

TEL: 0086-514-87782298 87782296

FAX: 0086-514-87782297

URL:WWW.YZPST. CC/ WWW.PST888.COM

ADD: Room303 Weiheng Building NO.184 Wangyue RD Yangzhou Jiangsu, China

All emails will be replied within 24 hours. Please leave a message in the Trade Manager. Thank you for ordering and hope you enjoy your purchase here. You commen ts are always welcomed and very important in our long-term business corporation.

We sincerely hope to cooperate with you.For more details, please contact me!
