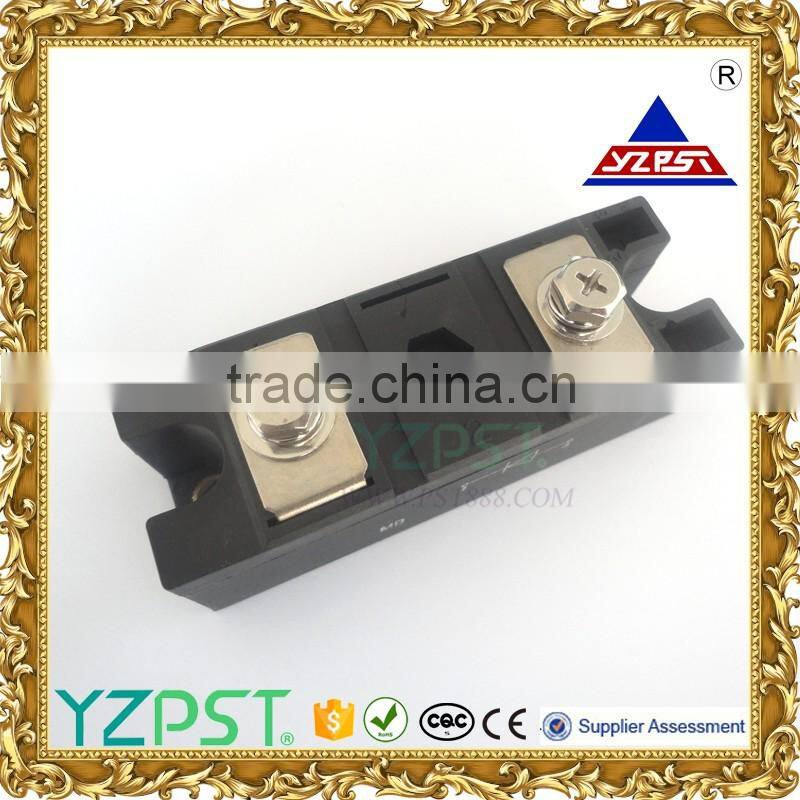

2200V Electronic Components Integrated Circuit Diode Module

Name: 2200V Electronic Components Integrated Circuit Diode Module
Brand: YZPST
SKU: 117320719
Availability: InStock

2200V Electronic Components Integrated Circuit Diode Module thumbnail-1

2200V Electronic Components Integrated Circuit Diode Module photo-1

US$ 23 - 32 MOQ: 50 Pieces

Key Specifications

Get Latest Price

D/C:

VRRM = 2200V IFAV = 200 A

Package:

diode module

Model Number:

MD200-22

Contact Supplier Request Quote Chat Now

Yangzhou Positioning Tech. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHAGNHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

D/C VRRM = 2200V IFAV = 200 A

Package diode module

Model Number MD200-22

Type Drive IC

Brand Name YZPST

Place of Origin Jiangsu, China

Diode Modules

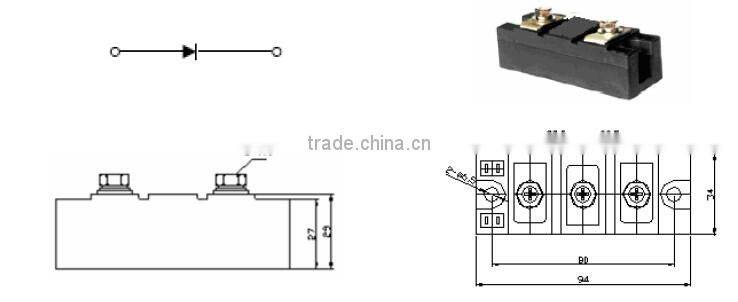

MD200-22

Product Description

VRRM (V)	VRSM (V)	TYPE
1000	1100	MD200-10
1200	1300	MD200-12
1600	1700	MD200-16
1800	1900	MD200-18
2200	2300	MD200-22
2400	2500	MD200-24

Maximum Ratings

Symbol	Item		Conditions	Ratings	Unit
IF(AV)	Average Forward Current		Single phase,half wave, 180°conduction, TC=96^oC	200	A
IF(RMS)	R.M.S.Forward Current		Single phase,half wave, 180°conduction, TC=96^oC	310	A
IFSM	Surge Forward Current		1/2 cycle, 50/60HZ, peak value, non-repetitive	5000/5500	A
I²t	I²t		Value for one cycle of surge current	125000	A²S
Tj	Junction Temperature			-40 to +150	^oC
Tstg	Storage Temperature			-40 to +125	^oC
VISO	Isolation Breakdown Voltage(R.M.S.)		Main Terminal to case 1minute	2500	V
Md	Mounting torque	Mounting(M6)	Recommended Value 2.5-3.9(25-40)	4.7(48)	Nm(kgfcm)
Md	Mounting torque	Terminal(M5)	Recommended Value1.5-2.5(15-25)	2.7(28)	Nm(kgfcm)

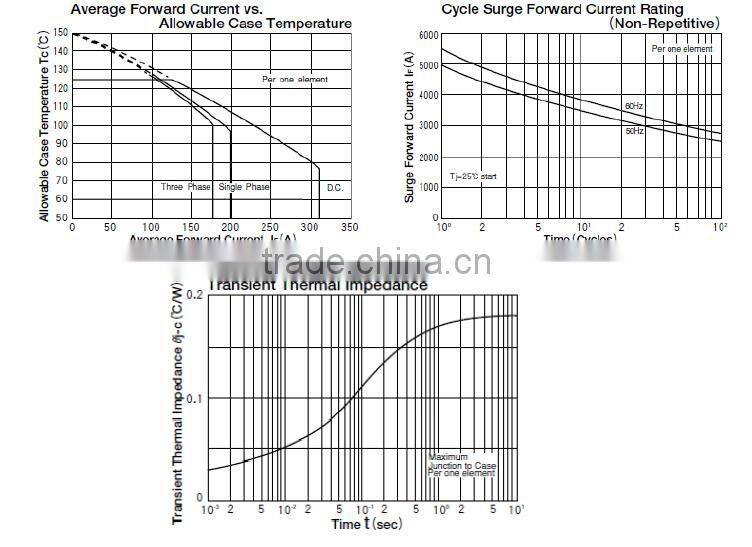

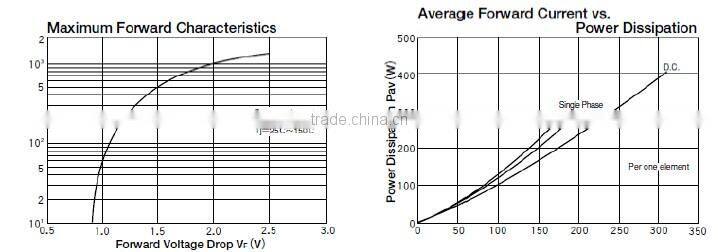

Electrical Characteristics

Symbol	Item	Conditions	Ratings	Unit
IRRM	Repetitive Peak Reverse Current, max.	Tj=150^oCat VRRM,Singe phase,half wave	8.0	mA
VFM	Forward Voltage Drop, max.	Foward current 200A , Tj=25^oC Inst. measurement	1.4	V
Rth(j-c)	Thermal Impedance, max.	Junction to case	0.18	^oC/W
