ND-P-12 Factory Automatic Packaging Machine for Shampoo

ND-P-12 Factory Automatic Packaging Machine for Shampoo photo-1
ND-P-12 Factory Automatic Packaging Machine for Shampoo photo-2
ND-P-12 Factory Automatic Packaging Machine for Shampoo photo-3
ND-P-12 Factory Automatic Packaging Machine for Shampoo photo-4
Negotiable MOQ: 1 Twenty-Foot Container (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type:
Bags, Barrel, Bottles, Cans, Capsule, Cartons, Case, Pouch, Stand-up Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port China; or other sea port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type Bags, Barrel, Bottles, Cans, Capsule, Cartons, Case, Pouch, Stand-up Pouch
Packaging Material Glass, Metal, Paper, Plastic, Wood
Automatic Grade Automatic
Driven Type Pneumatic
Voltage 220V;50HZ
Power 1.5kw
Place of Origin Tianjin, China
Brand Name NEWIDEA
Model Number ND-P-12
Dimension(L*W*H) 2000*1100*2200 (mm)
Weight 900Kg
Certification CE, ISO, SASO, SGS, CIQ
After-sales Service Provided Engineers available to service machinery overseas
Product Description

ND-P-12 Factory Automatic Packaging Machine for Shampoo

Main Characteristics for ND-P-12 Factory Automatic Packaging Machine for Shampoo:

This filling machine is suitable for liquid without carbonated, semi-fluid quantitative filling. Counting of bottles inlet quantitative filling, bottles outlet is done automatically. Especially suitable for SL, EC, SC, edible oil, lubrication oil. It is an ideal equipment for foodstuff, medical, cosmetic, fine chemical, pesticide industries.

1. It adopts advanced mechanical and electrical integration technology. Any filling specification can easily be done by changing parameters in touch screen. Not only the filling volume of 12 filling heads can be changed substantially, but also each filling head volume can be changed finely.

2. With touch screen technologies, which make operation of machine steadier, convenient, the human machine interface is friendlier. Photoelectric sensor, approaching switch and other elements are using international famous brand. No bottle no filling, the machine can stop automatically and alarm when bottles get blocked.

3. It uses the method of diving filling; various sealing rings used can meet different characteristics of products requirements.

4. The design and production of this machine is in accordance with GMP standard requirements. Easily dismantle, clean and maintain. The parts which contact filling products are made of high quality stainless steel. The whole machine is safe, environmental, sanitary, adapting to various kinds of working places.

Technical Parameter for ND-P-12 Factory Automatic Packaging Machine for Shampoo
01
Machine Dimension(L*W*H)
2400mm*2200mm*2200mm
02
Number of filling heads
20
03
Bottle spec.
Diameter
ϕ40mm-ϕ120mm
Height
80mm-280mm
04
Filling volume
50ml-1000ml
05
Production capacity
max 12000 bottles / hour (tested by water)
06
Filling tolerance
50ml-200ml
≤±1ml
200ml-1000ml
±2ml
07
Power supply
AC220V / 380V; 50Hz-60Hz; 4.5Kw
08
Pneumatic(air-operated)source
0.4-0.65 Mpa clean and stable compressed air

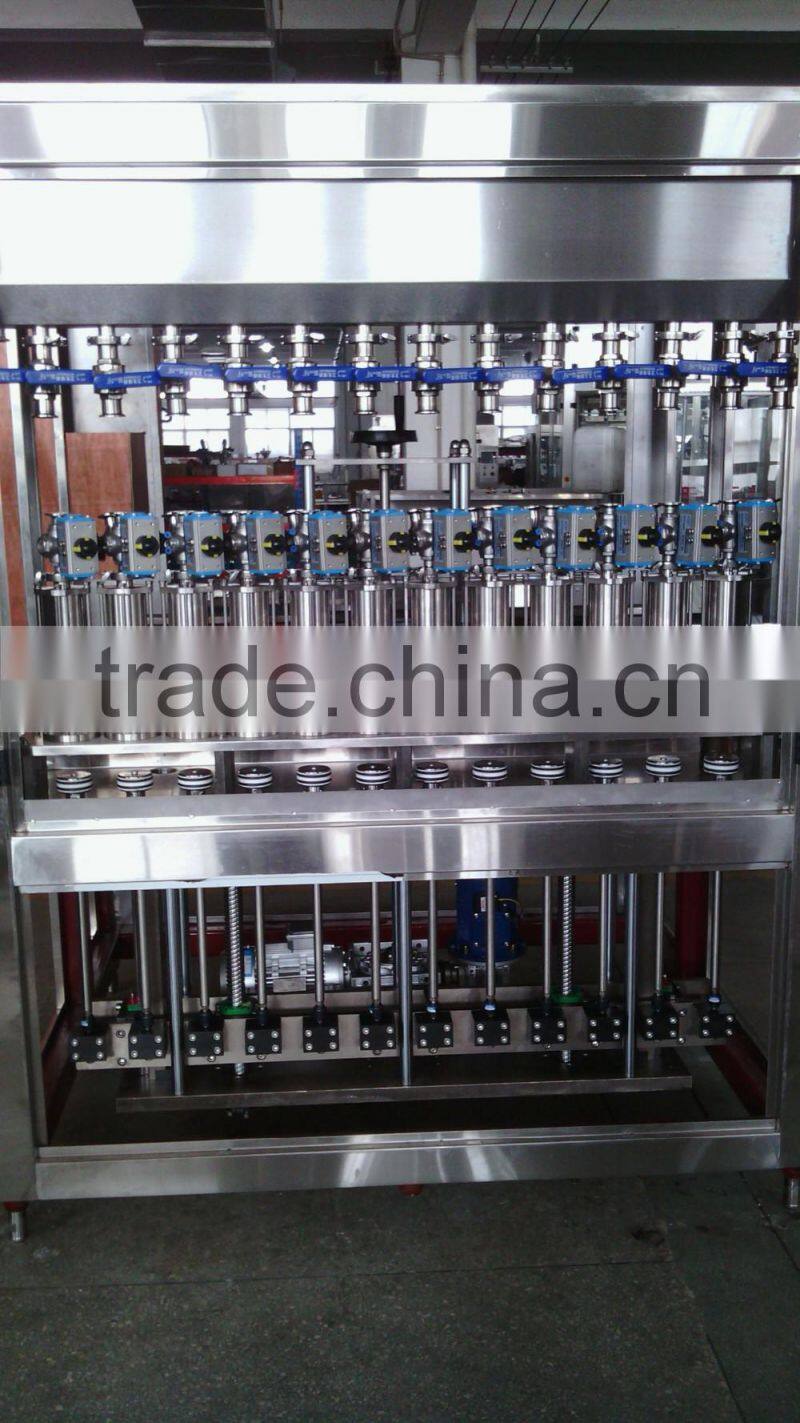

Detailed Image
Certifications
Packing & Delivery
Packaging
Size
2000mm×1100mm×2200mm
      Height
80mm~300mm



Packaging Details
The normal package is wooden case. If export to european countries,the wooden box will be fumigated.
We will use pe film inside package for stoping the salt sea water enter into the machine, prevent machine from corrosion; outside is strong standard export wooden case to bear long time shipping on the sea.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Our factory advantage.

1. 9 years manufacture experience,strong R&D department. Overseas engineer services available.
2. One year guarantee time,lifelong free service,24 hours online service.
3. We promise machine keep working over 10 years in good working condition.Few easy broken parts,easy to change.
4. Intelligent PLC control system,easy operate,more humanization.
5. Exported to more than 1000 customers from more than 50 countries.
6. OEM,ODM and customized service.
7. CE, ISO, SASO, SGS, CIQ certificates.
8. We guarantee the quality for one year, Lifetime free service, 24-hour online service.

Why choose us?

1. We have a professional technical team.

2. Before we deliver machine, we have set all information according to your bag information, and we do the fatigue tests two days, in this time, we open the machine for testing all the time to make sure our machine is perfect.
3. If you still don't know how to do, you can contact me at any time, we have 24-hours after-services for our all customers.
4. We can arrange our engineer to your compony to teach your works if you need.
