Help Center200A Thyristor Module
Related Products

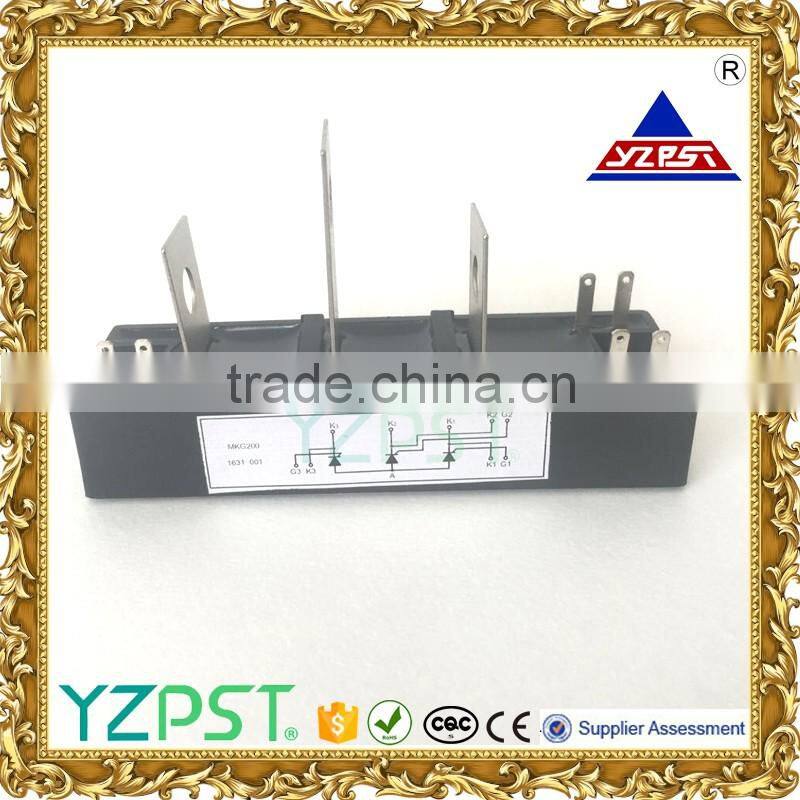

Thyristor module
MTG200-06
Features
- · Triple arms
- · Non-insulated type
Typical Applications
- · Welding power Supply
- · Various DC power Supply
MTG200-06 is a thyristor module suitable for low voltage ,3 phase recifier applications
VDRM/VRRM |
Tj=125°C |
400 |
V |
VRSM |
Tj=125°C |
500 |
V |
Maximum Ratings
Symbol |
Condition |
Ratings |
Unit |
IT(AV) |
sin. 180; Tc =85°C, |
200 |
A |
ITRMS |
sin. 180; Tc =85°C, |
314 |
A |
ITSM |
Tvj =25°C; 10 ms |
5400 |
A |
I2t |
Tvj =25°C; 8,3…10 ms |
1.5 |
kA2S |
(di/dt)cr |
non-repetitive |
50 |
A/us |
Viso |
A.C. 1s / 1min. |
3600/3000 |
V |
Tj |
|
-40 ~ + 125 |
°C |
Tstg |
|
-40 ~ + 125 |
°C |
M |
mounting torque M6 |
4.7 |
N.m |
W |
About |
- |
g |
Electrical Characteristics
Symbol |
Condition |
Ratings |
Unit |
IDRM /IRRM |
AtVDRM, Tj=125°C |
60 |
mA |
VT |
On-State Current 630A, Tj=25°C |
1.2 |
V |
VT(TO) |
Tj=125°C |
- |
V |
tgd |
Tj=25°C |
- |
us |
tq |
Tj=125°C |
- |
us |
IGT/VGT |
Tj=25°C |
150 / 2 |
mA/V |
VGD |
Tj=125°C |
0.25 |
V |
(dv/dt)cr |
Tj=125°C |
200 |
V/us |
IH |
Tj=25°C, typ. / max. |
- |
mA |
IL |
Tj=25°C, typ. / max. |
- |
mA |
Rth(j-c) |
1/3 Module |
0.12 |
°C/W |
Rth(c-s) |
1/3 Module |
0.12 |
°C/W |
