Home > Products > New Products > Big Capacity &New Technology ZSB series Linear Vibrating Screen with New Design ZSB20

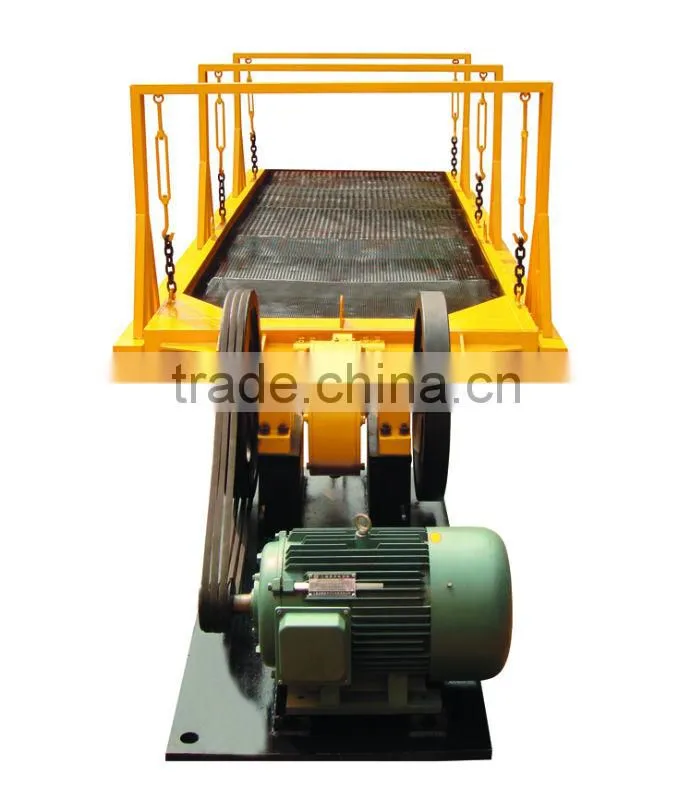

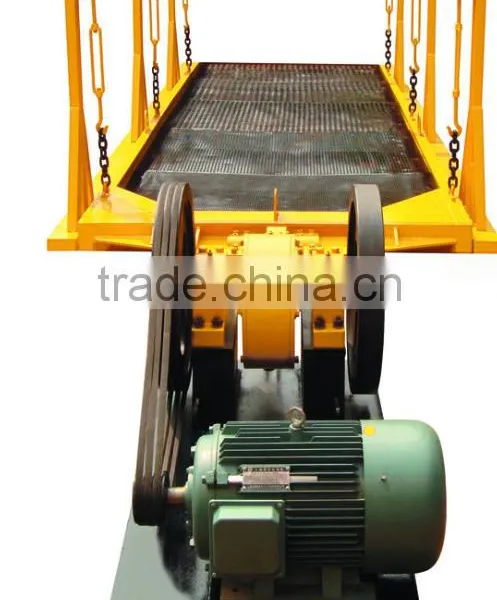

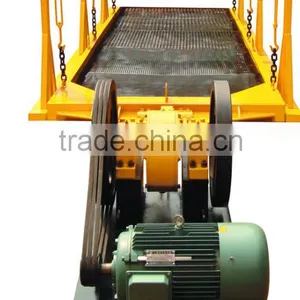

Big Capacity &New Technology ZSB series Linear Vibrating Screen with New Design ZSB20
- 100 Set / Sets per Month
- QINGDAO
- T/T
- LMC Pulse Bag Dust Collector/Filter Bag Dust Catcher
- Pulse Industrial Dust Catcher/Bag Dust Catcher In Cement Plant
- Best Quality Dust Collector For Sale/ Factory Price Dust Catcher With High Frequency
- New Dedign Filter Bag Dust Catcher/Collector For Industrial Dust Cleaner
- High Effiency Electric Dust Catcher With Factory Price/ Dust Collector
- Hot Selling Pulse Dust Catcher/Filter Bag Dust Collector With Best Quality
Product Details
Condition: | New | Type: | Linear | Application: | Other, Ore, Ore,building material,chemical&industry,metallurgy |
Place of Origin: | Shandong, China | Brand Name: | SDSY | Model Number: | ZSB20-12.14.16.18.20 |
Voltage: | 220V/380V/415V/450V | Power(W): | 37KW | Dimension(L*W*H): | DEPENDE |
Weight: | DEPENDE | Certification: | CE ISO | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Export Standard
Product Description
Specifications
Specifications of Linear Vibrating Screen:
1.Symple operation and structure
2.Convenient adjusting
3.Good screen effect
Operating Principle
The eccentric shaft rotated by the motor, the rotary motion will be transferred into linear reciprocating motion
through the draw bar, due to the self-supporting ability of material and installation slope of the frame, the
material will be discharged from the screen hole from coarse to fine, and then realize the screening purpose.
Performance Features:
The structure is simple, the eminence is convenient, the yield is high, the sizing effect is good, the motor and the rotating system are installed at the same platform, the structure is reasonable, the adjustment is convenient, the installment is steady and etc.
Applicability:
Widely applied to the sizing of building materials, metallurgy, chemical industry, roads and bridge mine etc materials.
Technical Parameters
Model | Layer | Max Feeding Size (mm) | Capacity (t/h) | Motor Power (kw) | Vibrating Frequency (r/min) | Screen Slope(0°) |
ZSB16---12.,14,16,18,20 | 1 | <80 | 120-180 | 18.5 | 220 | 5-8 |
ZSB18---12.,14,16,18,20 | 1 | <80 | 150-220 | 22 | 220 | 5-8 |
ZSB20---12.,14,16,18,20 | 1 | <80 | 180-300 | 37 | 220 | 5-8 |
Why customers choose our products?
1.In fact we are not in selling products, and more to help the customer to make a choice
2.We have good after-sales service(Erection &Commissioning,Operator Training,Spare Parts
Supply)
3.We have Pre-defined Query Future:Our products will be cheaper,energy-saving,
simple structure,etc.
When you are interested in Shandong Chengming Crusher, please Check "QA" to save
time
Q: What about Warranty? What will we do if the machine is broken down?
A: Our Warranty is 1 year for whole machine except wearing spare parts.We will provide the technical
advice.
Q: What information should we offer for you if we want to get best engineering proposal and quotation?
A: If you want us recommend a suitable engineering proposal for you, please let us know the following
information,
1). You only need one Hammer Crusher or the whole crushing line? (Include feeder, crusher, screen,
belt conveyor and so on).
2). What is the stone type? Marble, granite, basalt, gravel or others?
3). What is the capacity you need? Tons per hour
4). What is the Max Input Size? mm/inch
5). What is the Out Put Size you need ? 0-5-10-15mm or other size?
6). What is the use of the final products?
Q: What could you help me to do for the business?
A: Thank you for your trust, we can provide you with pre-services of design scheme for complete
production lines, spot inspection and operator training according to your demands and the conditions
and of applied spot, we can help you choose the matching equipments, drilling rig, loader, trucks,
excavators and so on.
When you check all, please contact us by e-mail or call us, we will make the business simple for you.
Company Profile
Shandong Chengming Construction Machinery Co., Ltd. is a provincial enterprise with high and new technology, having our complete departments integrating the research, manufacture and sale of series of crushers, matching equipment of crushing stone sieves, as well as the supply of processing, installation and transporting services. Our company is also an enterprise that obeys contracts and emphasizes credit. Our company registered $750,000 as capital, and our sales income comes up to about $750,000. For ten years, taking our enterprise spirit of "good faith, being pragmatic; innovation, development", through persevering efforts, our company has become an important manufacture and export base rapidly.
Based on talents, we develop creatively. There are a number of research elitists in our company. They are respecting their career and are expert at doing it. They also represent the leading level in technology. For years, they devote all their efforts to the absorption and digestion of advanced technique both at home and abroad, improve enterprise's technical and innovative capacity constantly. Our company has formed a product chain firstly based on series of crushers, secondly based on the matching products such as feeding, sizing and others. At present, our main products are PE, PEX series jaws, PF series reaction equipment, WPC, PC series attaching machines, PG2X series rolling machines, CZG, ZSW series feeders, and YZ, ZSB series vibrating screens totally eight series, dozens of specifications of crushing machines, and crushing stone sizing matching products, which are widely used in the fields of mine, building materials, metallurgy, roads and bridges, and energy.
Quality is the life of an enterprise. Our company takes quality as core and has established a series of strict and efficient quality administrative systems to make sure product quality. Our company was assured by ISO9001 in counterparts firstly. In order to promote the principle of "Manufacture, striving for perfection, pursuing consummation", our company adopts new craft, new equipment to make sure high-standard and high-quality products.
Our company obeys the principle of "Take quality as the basis, regard the users as the first importance", emphasizes on the sale on line. "Shan Yuan" brand series of products have very strong competitive advantages in the intensive market both at home and abroad. Putting Customers at the first place, providing satisfactory services for customers, we have no excuse. Our company has a procession with rich experience, exquisite after-sale services, and takes services to accomplish honesty, considering for customers on everything. Our company also provides the most considerate services actively and fast.
Shandong Chengming Construction Machinery Limited Company takes the developing principle of "Shandong Shan Yuan, Being Trustworthy Forever", sticking to taking quality to accomplish brand, taking service to promote brand and creating actively.
We welcome all customers and friends both at home and abroad to give us your presence and guidance sincerely, to accomplish the win-win cooperation.
