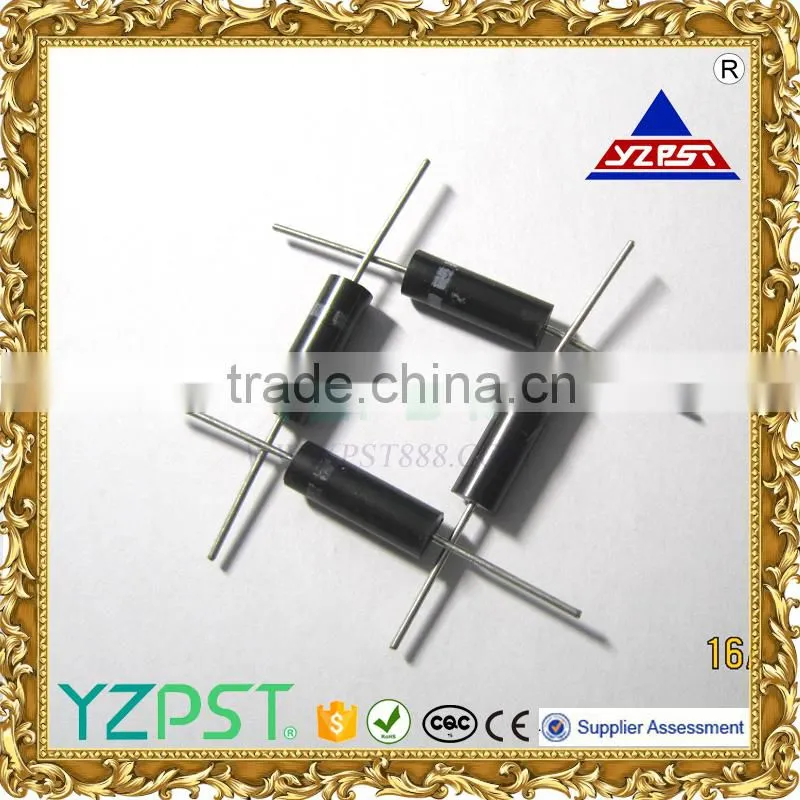

High voltage diode
CL03-10F_3
Characteristics
1. High junction temperature up to 130℃.
2. Low forward voltage drop, and small current leakage
3. Avalanche breakdown protection
4. Max reverse recovery time to 80nS
5. Excellent properties against HV surge impact
6. Axial leading wires which are weldable
7. Epoxy package with anti-corrosion properties on surface
Application
• Rectification for microwave oven
• Industrial microwave power supplies
• HF X ray source
• Laser power supply
• Voltage multiplying circuits
• Rectification of power supplies for other electronic devices
1.Main Specification
|
No. |
Item |
Symbol |
Unit |
Rating |
Conditions |
|
1 1 |
Repetitive Peak Reverse Voltage |
VRRM |
KV |
10 |
|
|
2 |
Average Forward Current |
IF (AV) |
mA |
300 |
Tamb=60°c 50HZ Sine-half Wave Rectification Average Value |
|
3 |
Forward Surge Current |
IFSM |
A |
15 |
Tamb=25 °c 50HZ Sine-half Wave,One Shot |
|
4 |
Reverse Surge Current |
IRSM |
μA |
5 |
Pulse width 1ms triangle wave single pulse |
|
5 |
Maximum Junction Temperature
|
Tjmax |
°c |
130 |
|
|
6 |
Storage Temperature |
Tstg |
°c |
-40~+130 |
|
2. Electric Specification
|
NO. |
Item |
Symbol |
Unit |
Rating |
Test conditions |
|
1 |
Forward Voltage Drop |
VFM |
V |
25 |
IFM=300mA |
|
2 |
Normal Temperature Reverse Current |
IRM1 |
μA |
5 |
VRM=10KV |
|
3 |
High Temperature Reverse Current |
IRM2 |
μA |
5 |
Tamb=100 °c VRM=10KV |
|
4 |
Reverse Breakdown Voltage |
VZ |
KV |
>10 |
IR=300mA |
|
5 |
Reverse Recovery Time |
trr |
nS |
80 |
IF=2mA, IRM=4mA 90% |
(Tamb=25 oC, unless otherwise specified)
3. Application
For high voltage rectification;
4. Derating of Forward Current
Ratio to rating (%)
