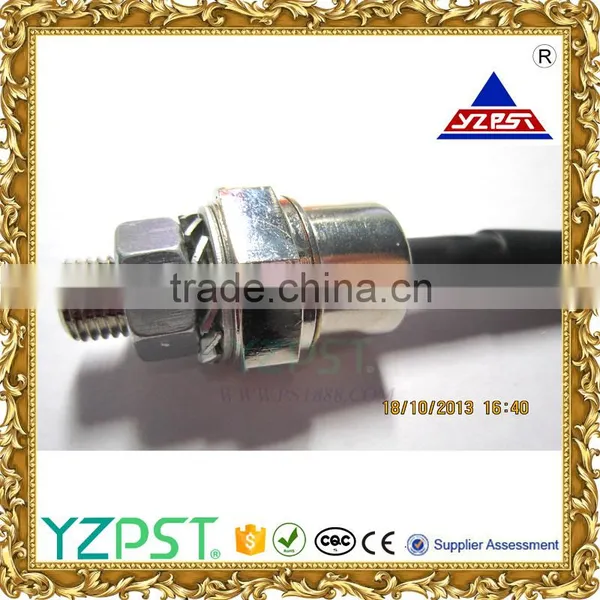

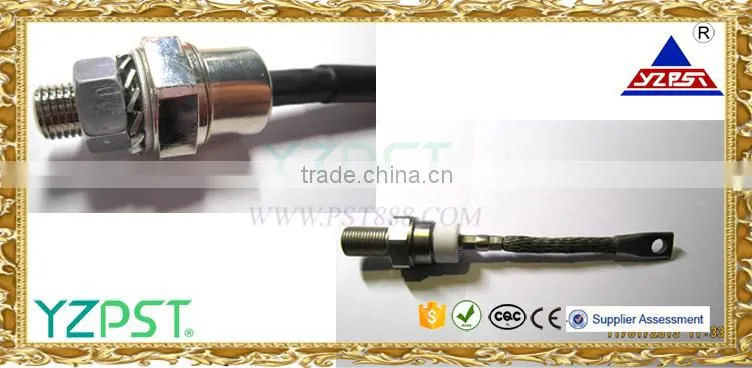

High Voltage Bolt Nut Diode 10f Cl04-12

Name: High Voltage Bolt Nut Diode 10f Cl04-12
Brand: YZPST
SKU: 117315005
Availability: InStock

US$ 1.1 - 1.5 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

YZPST

Model Number:

SM70HF200

Yangzhou Positioning Tech. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name YZPST

Model Number SM70HF200

Type Other, stud diode

Package Type Surface Mount

Max. Forward Voltage 2100V

Max. Reverse Voltage 2000V

Max. Forward Current 79A

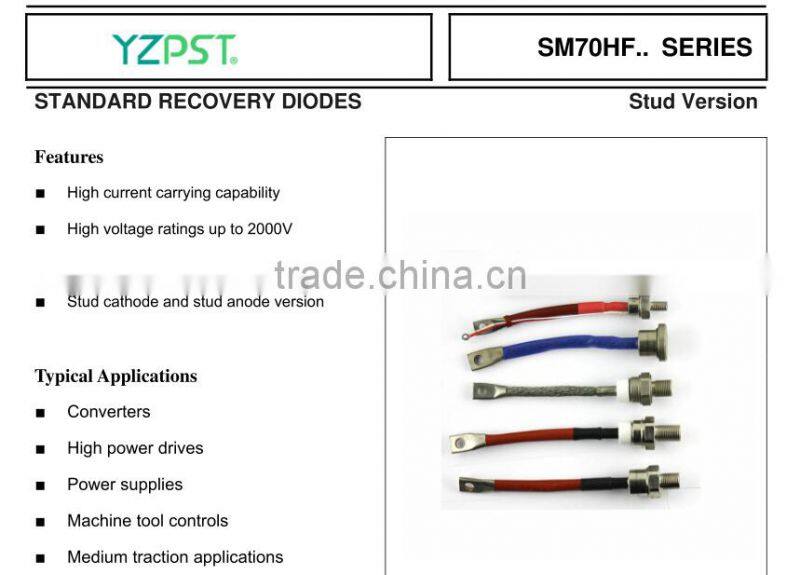

STANDARD RECOVERY DIODES

SM70HF200

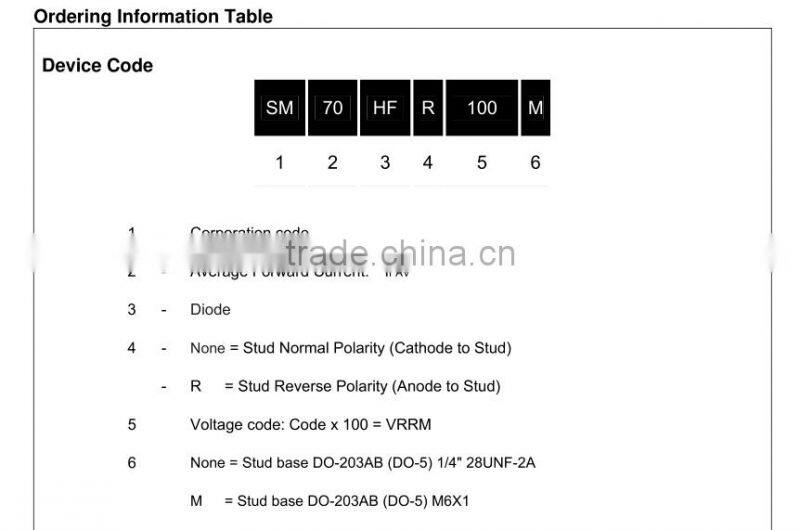

Product Description

ELECTRICAL SPECIFICATIONS Voltage Ratings

Type number	Voltage Code	V RRM, maximum repetitive peak reverse voltage V	V RSM , maximum non- repetitive peak rev. voltage V	I RRM max. @ T J = T J max. mA
SM70HF..	40	400	500	30
	80	800	900
	120	1200	1300
	140	1400	1500
	160	1600	1700
	200	2000	2100

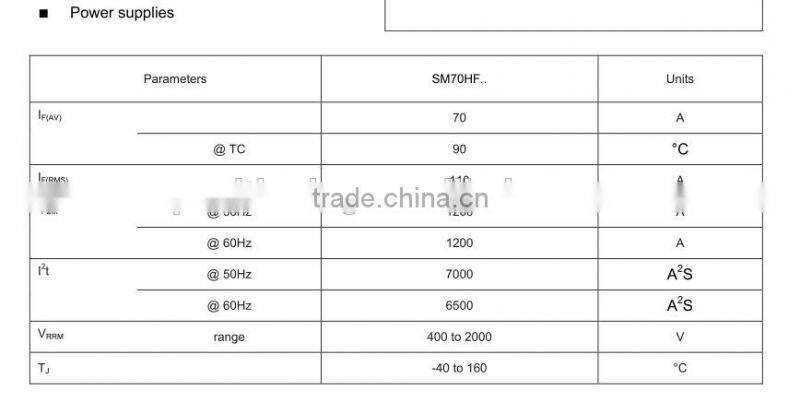

Forward Conduction

Parameter	SM70HF..	Units	Conditions
I F(AV) Max. average forward current @ Case temperature	70	A	180° conduction, half sine wave
I F(AV) Max. average forward current @ Case temperature	90	°C	180° conduction, half sine wave
IF(RMS) Max. RMS forward current	79	A	DC @ TC = 75°C (04 to 20), TC = 36°C (25 to 32)
I FSM, Maximum peak, one-cycle forward, non-repetitive surge current	1200	A	t = 10ms	No voltage reapplied	Sinusoidal half wave, Initial T = T max.
	1200		t = 8.3ms	No voltage reapplied
	1000		t = 10ms	100% VRRM reapplied
	1050		t = 8.3ms	100% VRRM reapplied
I 2 t Maximum I 2 t for fusing	7000	A 2 s	t = 10ms	No voltage reapplied
	6500		t = 8.3ms	No voltage reapplied
	5000		t = 10ms	100% V RRM reapplied
	4500		t = 8.3ms	100% V RRM reapplied
I2√t Maximum I2√t for fusing	70000	A2√s	t = 0.1 to 10ms, no voltage reapplied
VF(TO) Low level value of threshold voltage	0.80	V	TJ = 200°C
rf Max. value of forward slope resistance	2.30	mΩ	TJ = 200°C
VFM Max. forward voltage drop	1.30	V	(IFM x π x IF(AV) (220A Peak), TJ = 25°C

Thermal and Mechanical Specifications

Parameter	SM70HF..	Units	Conditions
T J	- 40 to 150	°C
Tstg	- 40 to 150	°C
R thJC Thermal Impedance, max.	0.45	K/W	DC operation
RthCS Max. thermal resistance, case to heatsink	0.25		Mounting surface, smooth, flat and greased
T Max. allowed mounting torque +0 -20%	3.5	Nm	Not lubricated threads
T Max. allowed mounting torque +0 -20%	2.3	Nm	Lubricated threads
wt Approximate weight	17	g

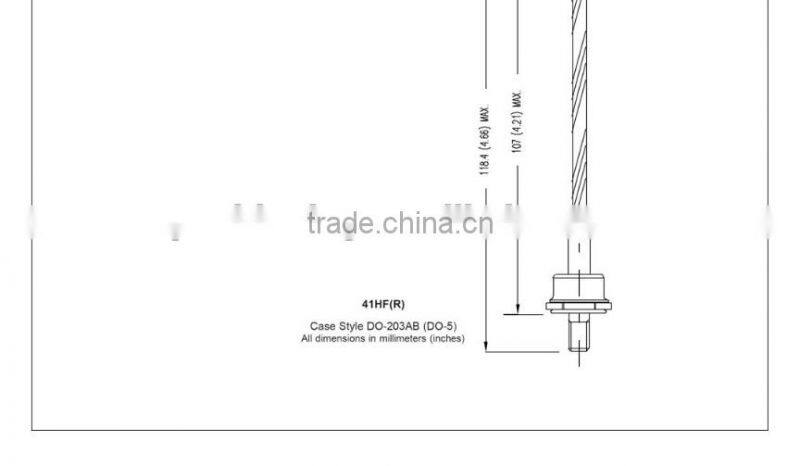

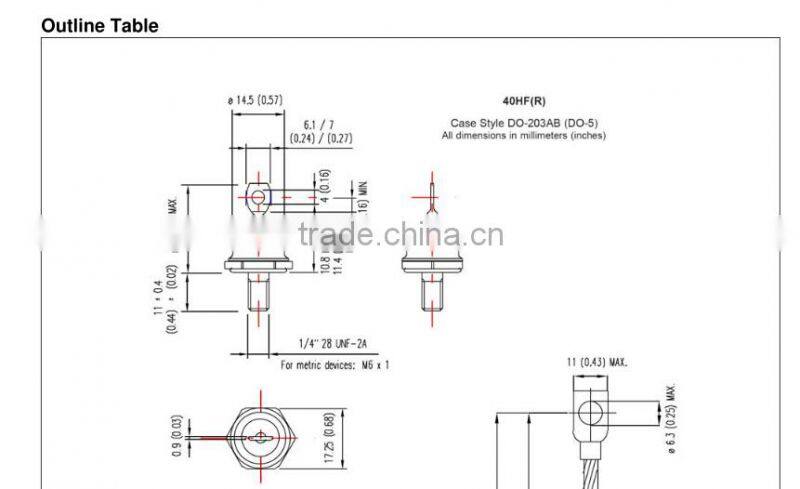

Case style	DO-203AB (DO-5)		See Outline Table
