Pipe Cutting And Beveling Machine For Pipe End Processing
Breif Introduction of Pipe Cutting And Beveling Machine:
PE Series Split frame type Servo-electric pipe cutting and beveling machine are mainly used for on-site pipe processing.Each set of machine equip with strong and stable power source.During the cutting process,Fixed the cutting machine on the pipe,cutter will rotate and cut the pipe automatically. Large cutting capacity ,high efficiency, no cutting glitches, no deformation, simultaneously finished cutting and beveling.
The different customizing bevel knife, can finished different angles of the beveling and cutting.
Widely used in pipe cutting and beveling of petroleum, petrochemical, beer, dairy beverage, pharmaceutical, metallurgy, water treatment, shipbuilding, electric power and other industries.
At the same time according to customer’s requirements can be customized non-standard specifications, cutting non-standard bevel.

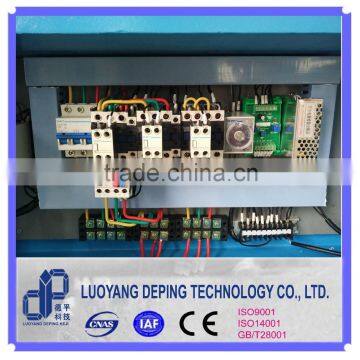

Detail Picture of Pipe Cutting And Beveling Machine
Our Certificate of Pipe Cutting And Beveling Machine:
Advantages of Pipe Cutting And Beveling Machine :

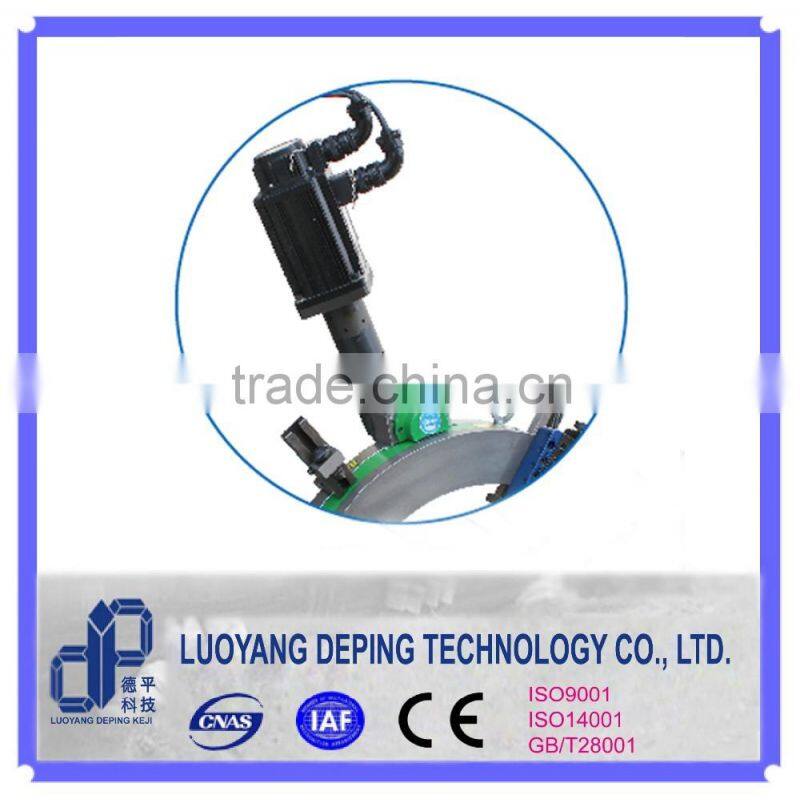

Servo-electric drive characteristics of pipe cutting and beveling machine:
1.The motor of pipe cutting and beveling machine is increased safety explosion proof motor, adopted a series of reliable fire flower, electric arc,
and high temperature measures, can be safely run in explosion danger environment.
2.Start fast, after boot only need to select the speed, the pipe cutting and beveling machine do not need to do other adjustments to the best cutting results.
3.Multiple control methods,to achieve a long-distance operator,more convenient.
4.Maxi energy saving and reduce fever. More suitable for harsh environment operations.

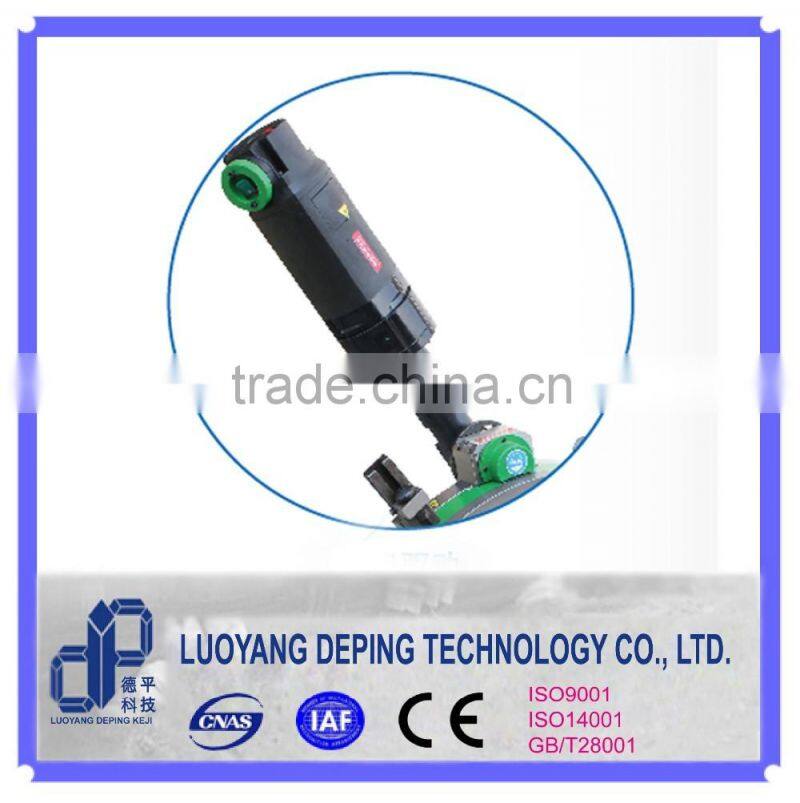

Motor Drive Features of Pipe Cutting And Beveling Machine
1.Motor shell material with enhanced fire-retardant nylon, embedded within metal stent , to ensure the body
strength, reduce the overall weight,easy to operate.
2.Pipe cutting and beveling machine with good ventilation design, long working hours without heat, while ensuring low noise motor
Model |
Process Range(OD.mm) |
Applicable Thickness(MM) |
(MM/R) |
DP-89 |
OD:25-89 |
No more than 100mm |
0.07 |
DP-168 |
OD:50-168 |
No more than 100mm |
0.07 |
DP-219 |
OD:60-219 |
No more than 100mm |
0.07 |
DP-355 |
OD:205-355 |
No more than 100mm |
0.07 |
DP-377 |
OD:227-377 |
No more than 100mm |
0.07 |
DP-430 |
OD:280-430 |
No more than 100mm |
0.07 |
DP-508 |
OD:358-508 |
No more than 100mm |
0.07 |
DP-530 |
OD:380-530 |
No more than 100mm |
0.07 |
DP-610 |
OD:460-610 |
No more than 100mm |
0.07 |
DP-762 |
OD:612-762 |
No more than 100mm |
0.07 |
DP-914 |
OD:764-914 |
No more than 100mm |
0.07 |
DP-1066 |
OD:914-1066 |
No more than 100mm |
0.07 |
DP-1219 |
OD:1066-1219 |
No more than 100mm |
0.07 |
DP-1542 |
OD:1219-1542 |
No more than 100mm |
0.07 |
Notice: Customer can choose Driver for the above model.

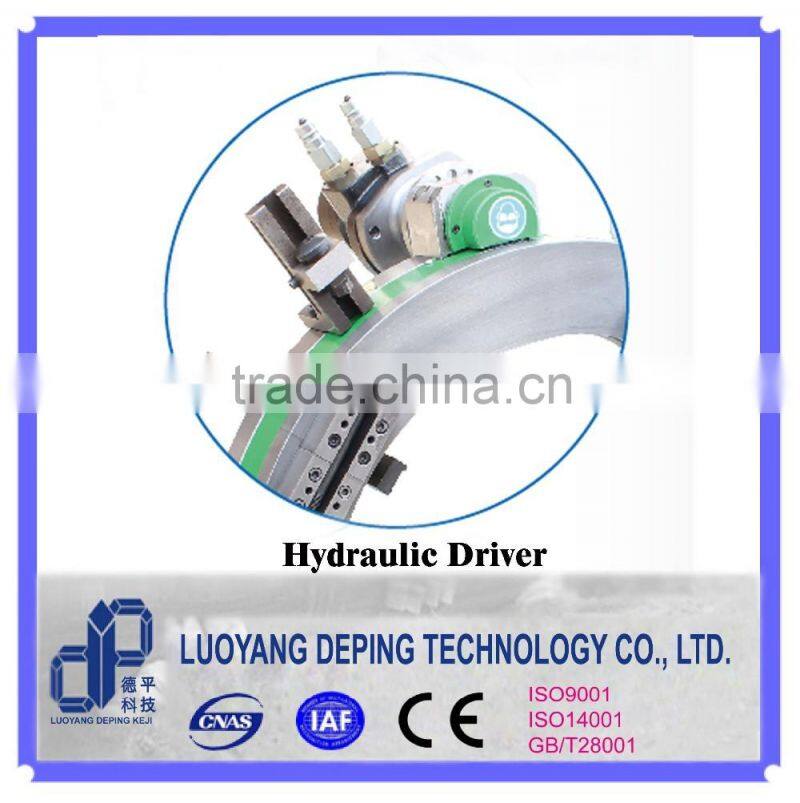

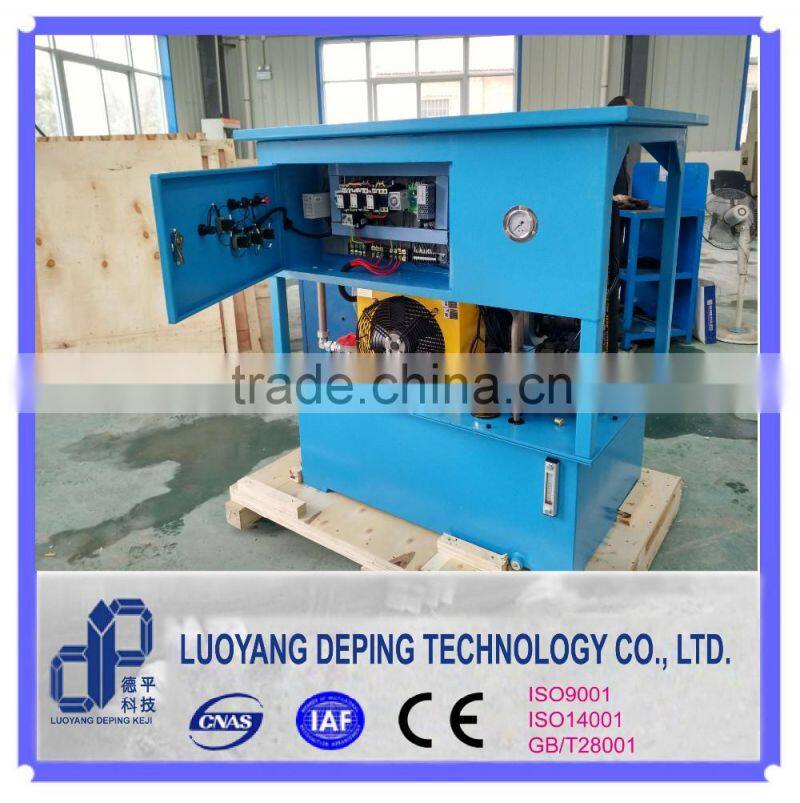

H - Hydraulic Driver, cutting &beveling thickness: no more than 100mm;
D - Common electronic Driver cutting &beveling thickness:no more than 25mm;
E - Servo-Driver cutting &beveling thickness: no more than 35mm;
P - Pneumatic Driver cutting &beveling thickness: No more than 15mm.
Our Domestic and Oversea Exhibition
Our Construction Onsite Photo
- Any more Details welcome to contact Ms. Linda
