Woven Wire Mesh Weave Screen Mesh

Shandong Chengming Construction Machinery Co., Ltd.
5Yrs

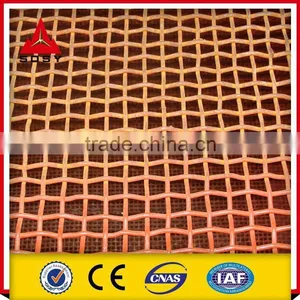

Woven Wire Mesh Weave Screen Mesh thumbnail-1

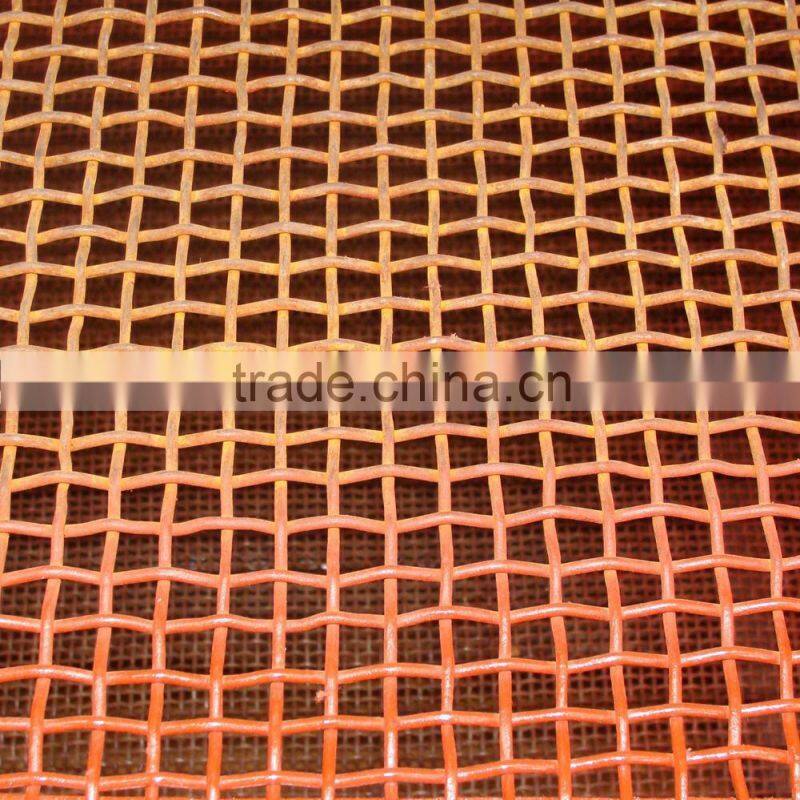

Woven Wire Mesh Weave Screen Mesh photo-1
US$ 999 - 150,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Other, Ore, stone,road-bridge,buliding materials chemical industry
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Circular
Application Other, Ore, stone,road-bridge,buliding materials chemical industry
Place of Origin Shandong, China
Brand Name SDSY
Model Number YK Series Woven Wire Mesh Weave Screen Mesh
Voltage 220V,380V,415V,440V,etc.
Power(W) 7.5-45kw
Dimension(L*W*H) Based on the model of screen
Weight Based on the model of screen
Certification ISO,CE, ISO9001:2000
Warranty One year for main machine
After-sales Service Provided Engineers available to service machinery overseas

Woven Wire Mesh Weave Screen Mesh

Woven Wire Mesh Weave Screen MeshWoven Wire Mesh Weave Screen Mesh



Performance Features of Vibrating Screen:

1. The motor adopts type coupled axle machine, preventing the motor being damaged for twisting when it starts.

2. Adopt rubber spring,the whole machine’s operating is stable and reliable,the operating life is long.

3. Adopt combined exciter and cardon movement, to assure the operation simultaneous, and exclude the phenomenon of bearing affecting the operating life as its coaxial degree is not very good.

4. Adopt air-cooling craft, reducing the bearing temperature, prolonging the bearing’s operating life.

5. Adopt high-strength bolted combination craft, making the sieve body’s operating life more durable under the full vibration.



Specifications

Model

Screen Size

(mm)

Screen Hole

Size(mm)

Input Size

(mm)

Capacity
(t/h)

Motor

(kw)

Vibrating Frenquency (r/min)

Double Amplitude
(mm)

YK1548

1500*4800

<70

<120

50-200

11

960

7

2YK-1548

1500*4800

<70

<120

50-200

11

960

7

3YK-1548

1500*4800

<70

<120

50-200

15

960

7

4YK-1548

1500*4800

<70

<120

50-200

18.5

960

7

2YK1860

1800*6000

<70

<200

80-280

18.5

730

8

3YK1860

1800*6000

<70

<200

80-280

30

730

8

4YK1860

1800*6000

<70

<200

80-280

30

730

8

2YK-2160

2100*6000

<70

<200

100-330

22

730

8

3YK-2160

2100*6000

<70

<200

100-380

30

730

8

4YK-2160

2100*6000

<70

<200

100-430

30

730

8

2YK-2470

2400*7000

<70

<400

100-380

30

730

8

3YK-2470

2400*7000

<70

<400

160-450

37

730

8

4YK-2470

2400*7000

<70

<400

160-450

45

730

8



Applicability of Mine Equipment of Vibrating Screen

Widely applied to the sizing of building materials, metallurgy, chemical industry, traffic-construction, mine etc.



Product Pictures



Woven Wire Mesh Weave Screen MeshWoven Wire Mesh Weave Screen Mesh

Our Services

1. We guarantee our reply in 24 hours of working day.

2. Our engineers will communicate with our customers in different languages to help them to solve the technical questions and quality issues.

3. Our professional QA people make strict inspection before shipment.

4. Punctual shipment time and good after-sales service will be guaranteed.



Woven Wire Mesh Weave Screen MeshWoven Wire Mesh Weave Screen MeshWoven Wire Mesh Weave Screen Mesh
