Home > Products > Portable Crushing Plant > Sand Crushing Plant Machinery
Sand Crushing Plant Machinery
- 100 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | Type: | Jaw Crusher | Application: | mining, construction |
Motor Type: | AC Motor | Power(W): | 30-180 | Capacity(t/h): | 10-1000 |
Place of Origin: | Shandong, China | Brand Name: | SDSY | Model Number: | YZ Series ( sand crushing plant machinery ) |
Dimension(L*W*H): | 14600x3300x5300mm | Weight: | 83tons | Certification: | ISO/CE |
Warranty: | ONE YEAR, 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Sand Crushing Plant Machinery:
Standard Export Container packing ( sand crushing plant machinery )
Product Description
Sand Crushing Plant Machinery
Description:
Mobile crusher plant provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the client.
Characteristics:
1.PE series high performance crusher
2.the integrative feeder and screen
3.the integrative truck loading of belt conveyor, vibrating screen and crusher
4.direction-changing axis of traction for the road transportation convenience and jobsite penetrate deeply
5.truck loading installation supporter for the fast and convenience of equipment residence
6.the integration of truck loading motor and control panel
Mobile crusher plant details:
This series of mobile crusher plant incorporates all the equipments together on one truck, which has high chassis, narrower body compared with other trucks, this ensure the crushing plant be easily transported on highways and moved to crushing sites, so it is able to achieve on-site crushing without material transporting from one place to another place. In addition, the lengthened plant is able to transport the final products to the motor-lorry directly. it can start to work soon even in the bumpy ground without reinstallation, so it saves more time and money than fixed crushing plant which needs to install individual equipment one by one.
Mobile crusher plant Compatibility:
Mobile crusher plants can work independently or together with other devices according to coarse crusher or fine crusher requirements. Side discharging chute supports more screening and transporting ways. Diesel generators of the incorporated plant can not only supply power for this plant, but also supply power for other plants of the process flow.
Specifications:
Model | YZ938E69 | YZ1149E75 | YZ1349E90 |
Transport Length(mm) | 11900 | 13100 | 14600 |
Transport Width (mm) | 2550 | 2550 | 2950 |
Transport Heigt (mm) | 3650 | 4450 | 4500 |
Length(mm) | 12100 | 13300 | 14600 |
Width(mm) | 2900 | 2950 | 3300 |
Hiehgt(mm) | 4060 | 4810 | 5300 |
Weight(T) | 36 | 57 | 83 |
Rubber tyre | Double shaft | Three shafts | Three shafts |
Crusher model | PE600×900 | PE750×1060 | PE900×1200 |
Max. feeding size(mm) | 480 | 630 | 750 |
Output size(mm) | 65~160 | 80~140 | 95~165 |
Capacity(t/h) | 90~180 | 110~320 | 220~450 |
Feeder model | ZSW380*96 | ZSW490*110 | ZSW490*130 |
Belt model | B800×8.5M | B1000×9M | B1200×9.5M |
Side belt (Optional) | B450×3M | B500×3.5M | B650×4M |
GeneratorKW) | 180 | 220 | 250 |

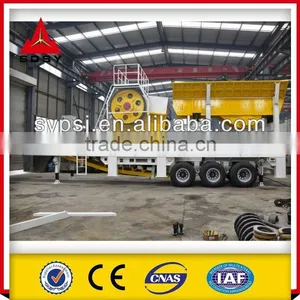

Product Pictures
About Warranty:
Our Warranty is 1 year for whole machine except wearing spare parts.We will provide the technical advice and find the solution immediately for you when the machine is in trouble-shoot. For wearing spare parts, we guarantee the high quality parts for long-time supply.
Our Services
1. We guarantee our reply in 24 hours of working day.
2. Our engineers will communicate with our customers in different languages to help them to solve the technical questions and quality issues.
3. Our professional QA people make strict inspection before shipment.
4. Punctual shipment time and good after-sales service will be guaranteed.
Click Here To Visit Our Home Page, And You Will Find More Surprises~
http://sypsj.en.china.cn/
Sand Crushing Plant Machinery Sand Crushing Plant Machinery Sand Crushing Plant Machinery Sand Crushing Plant Machinery Sand Crushing Plant Machinery Sand Crushing Plant Machinery Sand Crushing Plant Machinery Sand Crushing Plant Machinery Sand Crushing Plant Machinery Sand Crushing Plant Machinery Sand Crushing Plant Machinery Sand Crushing Plant Machinery Sand Crushing Plant Machinery Sand Crushing Plant Machinery
Company Profile
Shandong Chengming Construction Machinery Co., Ltd. is a provincial enterprise with high and new technology, having our complete departments integrating the research, manufacture and sale of series of crushers, matching equipment of crushing stone sieves, as well as the supply of processing, installation and transporting services. Our company is also an enterprise that obeys contracts and emphasizes credit. Our company registered $750,000 as capital, and our sales income comes up to about $750,000. For ten years, taking our enterprise spirit of "good faith, being pragmatic; innovation, development", through persevering efforts, our company has become an important manufacture and export base rapidly.
Based on talents, we develop creatively. There are a number of research elitists in our company. They are respecting their career and are expert at doing it. They also represent the leading level in technology. For years, they devote all their efforts to the absorption and digestion of advanced technique both at home and abroad, improve enterprise's technical and innovative capacity constantly. Our company has formed a product chain firstly based on series of crushers, secondly based on the matching products such as feeding, sizing and others. At present, our main products are PE, PEX series jaws, PF series reaction equipment, WPC, PC series attaching machines, PG2X series rolling machines, CZG, ZSW series feeders, and YZ, ZSB series vibrating screens totally eight series, dozens of specifications of crushing machines, and crushing stone sizing matching products, which are widely used in the fields of mine, building materials, metallurgy, roads and bridges, and energy.
Quality is the life of an enterprise. Our company takes quality as core and has established a series of strict and efficient quality administrative systems to make sure product quality. Our company was assured by ISO9001 in counterparts firstly. In order to promote the principle of "Manufacture, striving for perfection, pursuing consummation", our company adopts new craft, new equipment to make sure high-standard and high-quality products.
Our company obeys the principle of "Take quality as the basis, regard the users as the first importance", emphasizes on the sale on line. "Shan Yuan" brand series of products have very strong competitive advantages in the intensive market both at home and abroad. Putting Customers at the first place, providing satisfactory services for customers, we have no excuse. Our company has a procession with rich experience, exquisite after-sale services, and takes services to accomplish honesty, considering for customers on everything. Our company also provides the most considerate services actively and fast.
Shandong Chengming Construction Machinery Limited Company takes the developing principle of "Shandong Shan Yuan, Being Trustworthy Forever", sticking to taking quality to accomplish brand, taking service to promote brand and creating actively.
We welcome all customers and friends both at home and abroad to give us your presence and guidance sincerely, to accomplish the win-win cooperation.
