Roll to roll Sheet to sheet digital printing machine.We have 20.9m*0.6m, 1.3m*0.9m, can be with one or two DX5 head,2880dpi 4 color or CMYK double 4 color printing.
Summary

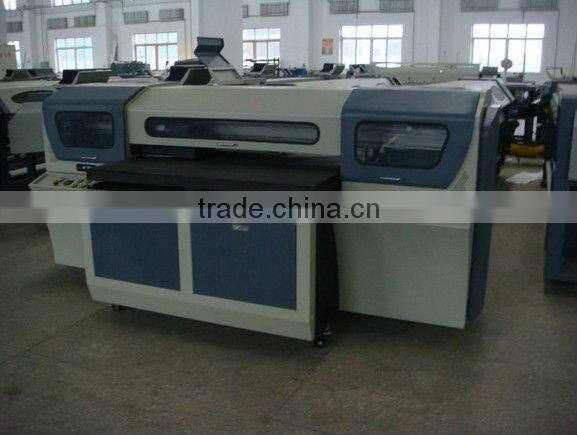

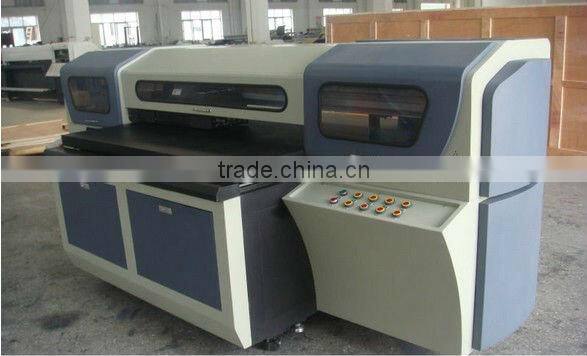

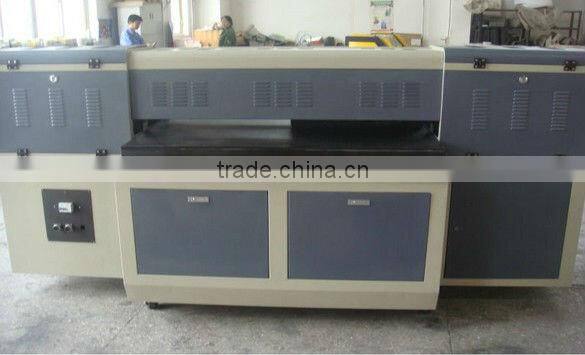

This series UV printer is a small size UV flatbed printer, specialized in printing sheet to sheet. Meda is located on printer flatbed and the printer faltbed move on two rails to finish printing. Print height reach 8cm amximum.
Application
KT board;PVC board;Plexiglass board;glass board;ceramic board,tile;metal board;leather and flex banner,mesh,one way vision,vinyl etc
Features:
1.UV technology
2.Economical price and ingenious design
3.UV LED drying systerm, best and fast drying and curing. Even materials which cannot bear high temperature can also be printed very well
4.No need negative-pressure systerm, easier operation
5.High resolution
After sold service
1.Anytime on line technology support
support
3.send the technician to your place for helping
Technical parameter
Name: |
UVC-EP0906 |
Class: |
UVC series |
Print technology: |
Drop-on-demand Piezo electric |
Print head: |
1/2(Epson DX5) |
Print width: |
0.80m*0.55m |
Print height: |
8cm |
Resolution: |
1440dpi max |
Speed: |
1head: 2pass 25sqm/h; 4pass 16sqm/h; 6pass 10sqm/h 2heads: 2pass 50sqm/h; 4pass 32sqm/h; 6pass 20sqm/h |
Locating mode: |
Raster /servo |
Color: |
CMYK |
Media width: |
0.90m*0.60m |
Media handle: |
Sheet to sheet |
Media types: |
KT board;PVC board;Plexiglass board;glass board;ceramic board,tile;metal board;leather and flex banner,mesh,one way vision,vinyl etc |
Drying system: |
UV LED |
File format: |
TIFF,Postscript 3,JPEG,EPS,PDF |
Working process: |
Printmon software for windows xp |
Rip: |
Photoprint /maintop |
Power supply: |
50hz/60hz 220v(10%)20A |
Operation enviroment: |
(Temperature )18-26 (Humidity )40%-70% |
Dimension: |
2.9m*1.3m*1.3m |
Weight: |
700KG |
The machine also can install the Seiko print head.
