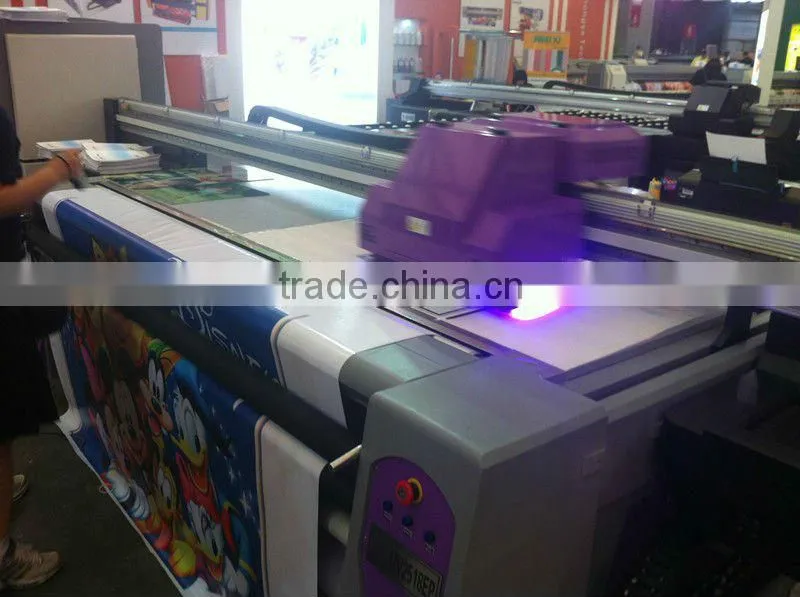

Help CenterLow Cost UV Flatbed Printer With Size 2.5m*1.4m
Related Products
-
Industrial Inkjet Printer With FlatbedUS$ 30,000 - 45,000MOQ: 1 Set -
3.2m Economical Price UV Flatbed Printer With High ResolutionUS$ 20,000 - 20,000MOQ: 1 Set
-
Cheap Flatbed Printer With High Speed and High ResolutionUS$ 16,000 - 19,000MOQ: 1 Set
-
UV Inkjet Printer for 2.5m Faltbed PrinterUS$ 18,000 - 18,000MOQ: 1 Set
-
1.8m UV Flatbed Printer With White Ink High ResolutionUS$ 13,000 - 13,000MOQ: 1 Set
Summary
This series UV printer is specialized in printing sheet to sheet. Media donot move during printing, the print head carriage move left and right and the bean move front and back to finish printing. Because the media donnot move during printing, this servise UV printers can print heavy sheet material. Print height reach 10cm maximum.
Application
KT board, PVC board, Plexiglass board, glass board, ceramic board, tile metal board, leather and flex banner, mesh, one way vision, vinyl etc.
Features:
1.UV technology
2.Economical price and ingenious design
3.UV LED drying systerm, best and fast drying and curing. Even materials which cannot bear high temperature can also be printed very well
4.No need negative-pressure systerm, easier operation
5.High resolution
After sold service
1.Anytime on line technology support
support
3.send the technician to your place for helping
Technical parameter
Name: |
UVB-SK2514 |
Class: |
UVB series |
Print technology: |
Drop-on-demand Piezo electric |
Print head: |
4/5/7/10/12/14(SPT255/12pl) |
Print size: |
2.50m*1.25m |
Print height: |
10cm |
Resolution: |
1440dpi max |
Speed: |
2pass 24sqm/h ; 4pass 16sqm/h ; 6pass 8sqm/h(10/12/14 heads, double speed) |
Locating mode: |
Raster /servo |
Color: |
CMYK W LC LM |
Media width: |
2.50m*1.40m |
Media handle: |
Sheet to sheet |
Media types: |
KT board, PVC board, Plexiglass board, glass board, ceramic board, tile metal board, leather and flex banner, mesh, one way vision, vinyl etc. |
Drying system: |
UV LED |
File format: |
TIFF,Postscript 3,JPEG,EPS,PDF |
Working process: |
Printmon software for windows xp |
Rip: |
Photoprint /maintop |
Power supply: |
50hz/60hz 220v(10%)20A |
Operation enviroment: |
(Temperature )18-26 (Humidity )40%-70% |
Dimension: |
3.8m*1.6m*1.4m |
Weight: |
1000KG |
The machine also can install the Epson print head.
If you are intersted in our products, pls do feel free to contact with me.
