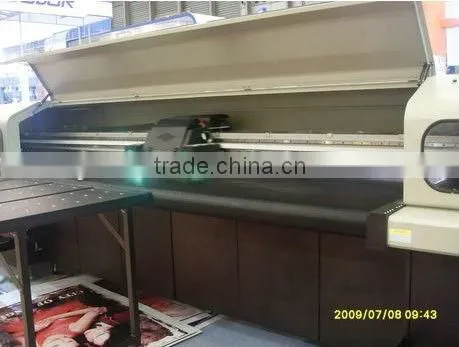

Zhongye UV series UV flatbed printer adopts Epson print heads,and can print both roll to roll and sheet to sheet, with feed in and take up rollers. Media move on front and back rollers flatbed and the wide belt main flatbed to finish printing. Print height reach 8cm maximum.
Application
KT board;PVC board;Plexiglass board;glass board;ceramic board,tile;metal board;leather and all the roll to roll materials like flex banner,mesh,one way vision,vinyl etc.
Features:
1.UV technology
2.Economical price and ingenious design
3.UV LED drying systerm, best and fast drying and curing. Even materials which cannot bear high temperature can also be printed very well
4.With both roll-to-roll and sheet-to-sheet media handling system, it is a real muti-functional UV printing equipment
5.No need negative-pressure systerm, easier operation
6.High resolution
After sold service
1.Anytime on line technology support
support
3. send the technician to your place for helping
Tchnical parameter
Name: |
UVA-EP1800 |
Class: |
UVA series |
Print technology: |
Drop-on-demand Piezo electric |
Print head: |
1/2(Epson DX5) |
Print width: |
1.8m |
Print height: |
8cm |
Resolution: |
2880dpi max |
Speed: |
1head: 2pass 25sqm/h; 4pass 16sqm/h; 6pass 10sqm/h 2heads: 2pass 50sqm/h; 4pass 32sqm/h; 6pass 20sqm/h |
Locating mode: |
Raster /servo |
Color: |
CMYK |
Media width: |
1.8m |
Media handle: |
Roll to roll Sheet to sheet |
Media types: |
KT board;PVC board;Plexiglass board;glass board;ceramic board,tile;metal board;leather and all the roll to roll materials like flex banner,mesh,one way vision,vinyl etc. |
Drying system: |
UV lamp |
File format: |
TIFF,Postscript 3,JPEG,EPS,PDF |
Working process: |
Printmon software for windows xp |
Rip: |
Photoprint /maintop |
Power supply: |
50hz/60hz 220v(10%)20A |
Operation enviroment: |
(Temperature )18-26 (Humidity )40%-70% |
Dimension: |
3.8m*1.6m*1.4m |
Weight: |
1000KG |
The machine also can install the Seiko print head.
